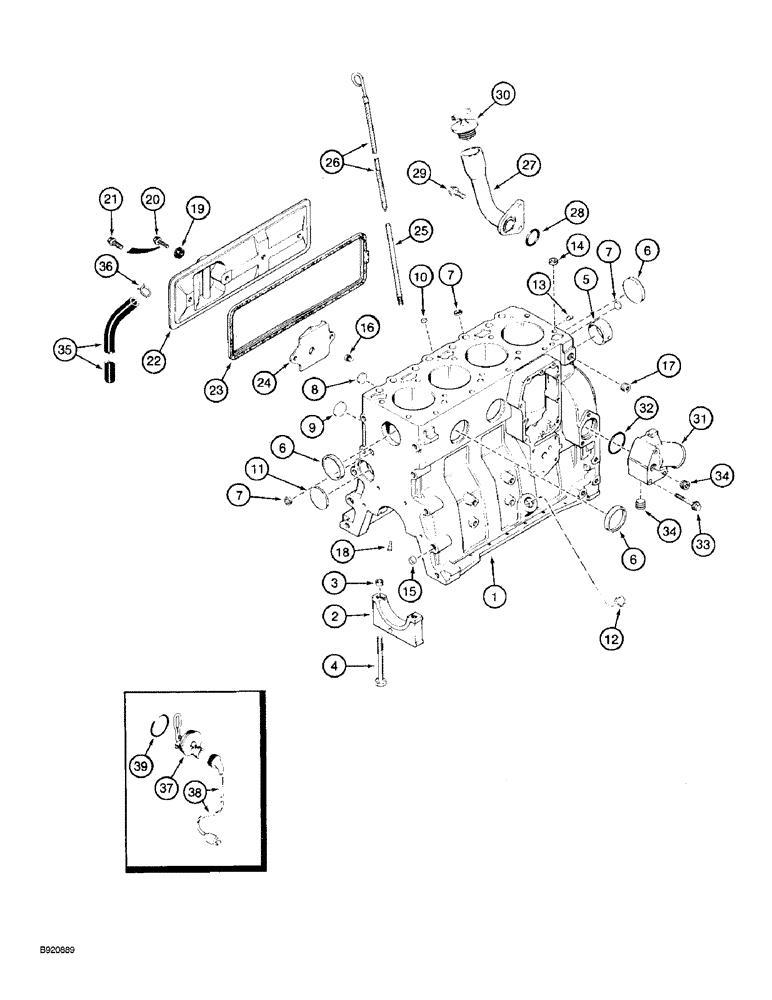

Запчасти Case 580SK (2-40) - CYLINDER BLOCK, 4-390 ENGINE (02) - ENGINE

1989067C2

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY, 4-390 standard, Naturally Aspirtated complete, new, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, for service order 1989091C2 basic engine, below, cylinder block 4 - 390 engine

1шт.

1989067C2R

REMAN-REPLACEMENT EN

Reman For New P/N 1989067C2

1шт.

1989067C2C

CORE-REPLACEMENT ENG

Return Part Number, Complete

1шт.

1989091C2

BASIC ENGINE

ENGINE ASSEMBLY - basic, new

1шт.

includes all parts except: starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, belt tensioner, and turbocharger, cylinder block 4 - 390 engine

1шт.

1989091C3R

REMAN-BASIC ENGINE

Reman For New P/N 1989091C2. Built with 3 bolt injection pump front housing

1шт.

1989091C3C

CORE-BASIC ENGINE

Return Part Number

1шт.

AR77758

BLOCK ASSY.

Block Assembly short, engine, remanufactured, component parts shown on this page do not apply to the remanufactured assembly, cylinder block 4 - 390 engine

1шт.

AC77758

CORE-ENGINE

Return Part Number, use this part number to return short block core for credit when using a remanufactured assembly, cylinder block 4 - 390 engine

1шт.

A77758

SKELETON ENGINE

KIT short block assembly, engine, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, no longer available, order components J920384 short block and J920399 hardware kit separately, cylinder block 4 - 390 engine

1шт.

J920384

BLOCK ASSY.

BLOCK ASSEMBLY short, engine, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, cylinder block 4 - 390 engine

1шт.

Order J920399 hardware kit when ordering J920384 block assembly or J916254 stripped block.

1шт.

A77757

CRANKCASE

KIT stripped engine, no longer available, order components J916254 stripped engine and J920399 hardware kit separately, cylinder block 4 - 390 engine, Includes: Ref. 1 through 8.

1шт.

1

J916254

BLOCK ASSY.

BLOCK ASSEMBLY stripped, engine, cylinder block 4 - 390 engine, Includes: Ref. 2 through 8.

1шт.

Order J920399 hardware kit when ordering J920384 block assembly or J916254 stripped block.

1шт.

2

J900967

BEARING CAP

CAP main bearing, cylinder block 4 - 390 engine

5шт.

3

J900068

BEARING WASHER

RING dowel, 18 mm OD, cylinder block 4 - 390 engine

10шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT bearing cap, special, cylinder block 4 - 390 engine

10шт.

5

REF

INSTRUCTION

BUSHING camshaft front, see Figure 2-38, Ref. 2, cylinder block 4 - 390 engine

1шт.

6

A77782

PLUG

PLUG expansion, 58 mm OD, replaces J900965 plug, cylinder block 4 - 390 engine

4шт.

7

J900956

PLUG

PLUG expansion, 18 mm OD, cylinder block 4 - 390 engine

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

PLUG, , Expansion, Replaces A77539, Cylinder block 4 - 390 engine Cup, 1", Stainless

2шт.

J802641

PACKAGE, REPAIR

KIT block hardware, cylinder block 4 - 390 engine, Includes: Ref. 9 through 18.

1шт.

Order J920399 hardware kit when ordering J920384 block assembly or J916254 stripped block.

1шт.

9

J900958

PLUG

PLUG expansion, 32 mm OD, cylinder block 4 - 390 engine

2шт.

10

J900955

PLUG

PLUG expansion, 10 mm OD, cylinder block 4 - 390 engine

1шт.

11

172599

PLUG,Exp, 2 3/8"

PLUG expansion, Welch, 60 mm OD, replaces J900687, cylinder block 4 - 390 engine

1шт.

12

A77439

PLUG

PLUG expansion, 22 mm OD, cylinder block 4 - 390 engine

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

PIN dowel, 16 mm long, cylinder block 4 - 390 engine

2шт.

14

J902343

DOWEL

RING dowel, 16 mm OD, cylinder block 4 - 390 engine

2шт.

15

J900068

BEARING WASHER

RING dowel, 18 mm OD, cylinder block 4 - 390 engine

2шт.

16

J906619

PLUG,1/8" - 27

PLUG hex, 1/8 inch PT, cylinder block 4 - 390 engine

2шт.

17

A77429

PLUG

PLUG hex socket, 1/2 inch PT, cylinder block 4 - 390 engine

1шт.

18

J919002

NOZZLE CAP

NOZZLE piston cooling, cylinder block 4 - 390 engine

4шт.

19

J900267

SEAL

SEAL cover bolt, cylinder block 4 - 390 engine

4шт.

20

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm, If used, cylinder block 4 - 390 engine

4шт.

21

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT heavy hex flange, 8 - 1.25 x 20 mm, If used, cylinder block 4-390 engine

4шт.

22

J925680

COVER

COVER tappet, replaces J916441 cover, cylinder block 4 - 390 engine

1шт.

23

J922078

GASKET

GASKET tappet cover, replaces J904056 gasket, cylinder block 4 - 390 engine

1шт.

24

J907586

BAFFLE

BAFFLE tappet cover, cylinder block 4 - 390 engine

1шт.

25

J905779

TUBE,9.52 mm OD x 228 mm L

TUBE dipstick, cylinder block 4 - 390 engine

1шт.

26

J905781

DIPSTICK

DIPSTICK oil level gauge, cylinder block 4 - 390 engine

1шт.

27

J905440

TUBE

TUBE oil fill, cylinder block 4 - 390 engine

1шт.

28

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING sealing, 38 mm ID, cylinder block 4 - 390 engine

1шт.

29

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

BOLT heavy hex flange, 12 - 1.75 x 25 mm, class 10.9, cylinder block 4 - 390 engine

2шт.

30

A77424

FILLER CAP

CAP fill, oil, cylinder block 4 - 390 engine

1шт.

31

J903102

CONNECTION

CONNECTION water inlet, cylinder block 4 - 390 engine

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING sealing, 50 mm ID, cylinder block 4 - 390 engine

1шт.

33

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

BOLT heavy hex flange, 10 - 1.50 x 75 mm, class 10.9, cylinder block 4 - 390 engine

3шт.

34

A77429

PLUG

PLUG hex socket, 1/2 inch PT, cylinder block 4 - 390 engine

2шт.

35

J918612

TUBE,360.00 mm

Breather, Replaces J906593, Cylinder Block 4 - 390 Engine

1шт.

36

J904230

CLAMP,25.4mm

CLAMP spring, hose, cylinder block 4 - 390 engine

1шт.

A77634

KIT

KIT engine block heater, engine block heater, engine block heater, Includes: Ref. 37, 38 and 39.

1шт.

37

NSS

NOT SOLD SEPARAT

ELEMENT engine block heater

1шт.

38

J905113

CABLE

CABLE heater block, engine block heater

1шт.

39

J910517

O-RING

O-RING heater, sealing, engine block heater

1шт.
