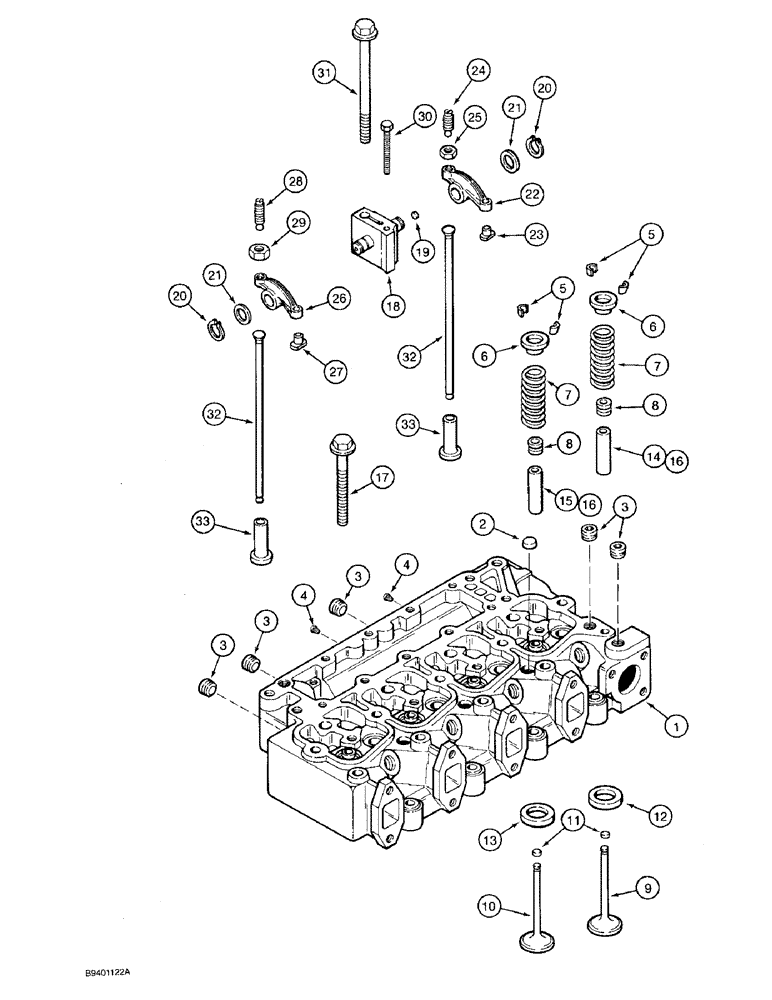

Запчасти Case 580SK (2-36) - CYLINDER HEAD AND VALVE MECHANISM, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

JR920611

REMAN-CYLINDER HEAD

HEAD cylinder, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly

1шт.

JC920611

CORE-CYLINDER HEAD

RETURN NUMBER, use this part number to return head core for credit when using a remanufactured assembly

1шт.

1

J920611

HEAD (CYLINDER)

HEAD ASSEMBLY cylinder, new, with valves, Includes: Ref. 2 through 10 and P/N J920005

1шт.

1

J920005

HEAD (CYLINDER)

HEAD ASSEMBLY cylinder, without valves, Includes: Ref. 2.

1шт.

2

A77783

PLUG

expansion, 21 mm OD, replaces J902606 plug

3шт.

3

A77429

PLUG

hex socket, 1/2 inch PT, one removed to install temperature sending unit

5шт.

4

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

2шт.

5

J900250

SCREW

KEEPER valve

16шт.

6

J900299

RETAINER

valve spring

8шт.

7

J900276

VALVE SPRING

SPRING valve

8шт.

8

J901097

SEAL

valve

8шт.

9

J920867

VALVE

intake, replaces J901117 valve

4шт.

10

J920868

VALVE

exhaust, replaces J901607 valve

4шт.

11

J280911

WEAR PAD

PAD wear, valve stem tip, for use on intake and exhaust valves, service repair only, replaces J910412

1шт.

12

J906854

SEAT, VALVE

SEAT insert, intake valve, service repair only

4шт.

13

J904105

SEAT, VALVE

SEAT insert, exhaust valve, service repair only

4шт.

14

J904408

GUIDE

valve, intake, 14 mm OD, service repair only, if used

4шт.

These parts are semi-finished valve guides.

1шт.

15

J904409

GUIDE

valve, exhaust, 14 mm OD, service repair only, if used

4шт.

These parts are semi-finished valve guides.

1шт.

16

J906206

GUIDE

valve, intake and exhaust, 11 mm OD, service repair only, if used

8шт.

These parts are semi-finished valve guides.

1шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

BOLT, SPECIAL - cylinder head, 70 mm long, replaces J903938 and J918471 bolts

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

- cylinder head, 120 mm long, replaces J903939 and J918472 bolts

10шт.

18

J910814

SUPPORT

AND SHAFT ASSEMBLY rocker arm, Includes: Ref. 19

4шт.

19

J907555

PLUG

rocker arm shaft, 1/4-18 PT

1шт.

20

J900242

SNAP RING

RING retaining, rocker arm

8шт.

21

J900245

WASHER

thrust, rocker arm

8шт.

22

J910811

ROCKER

ARM ASSEMBLY rocker, intake, Includes: Ref. 23, 24 and 25.

4шт.

23

NSS

NOT SOLD SEPARAT

INSERT rocker arm

1шт.

24

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW set, adjusting, special

1шт.

25

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

26

J910810

ROCKER

ARM ASSEMBLY rocker, exhaust, Includes: Ref. 27, 28 and 29.

4шт.

27

NSS

NOT SOLD SEPARAT

INSERT rocker arm

1шт.

28

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW set, adjusting, special

1шт.

29

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

30

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

31

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

BOLT, SPECIAL cylinder head and rocker arm, replaces J903940 and J918473 bolts

4шт.

32

J923262

PUSH ROD

ROD push, rocker arm, replaces J904679 rod

8шт.

33

J925031

TAPPET

valve, push rod, replaces J907240 tappet

8шт.
