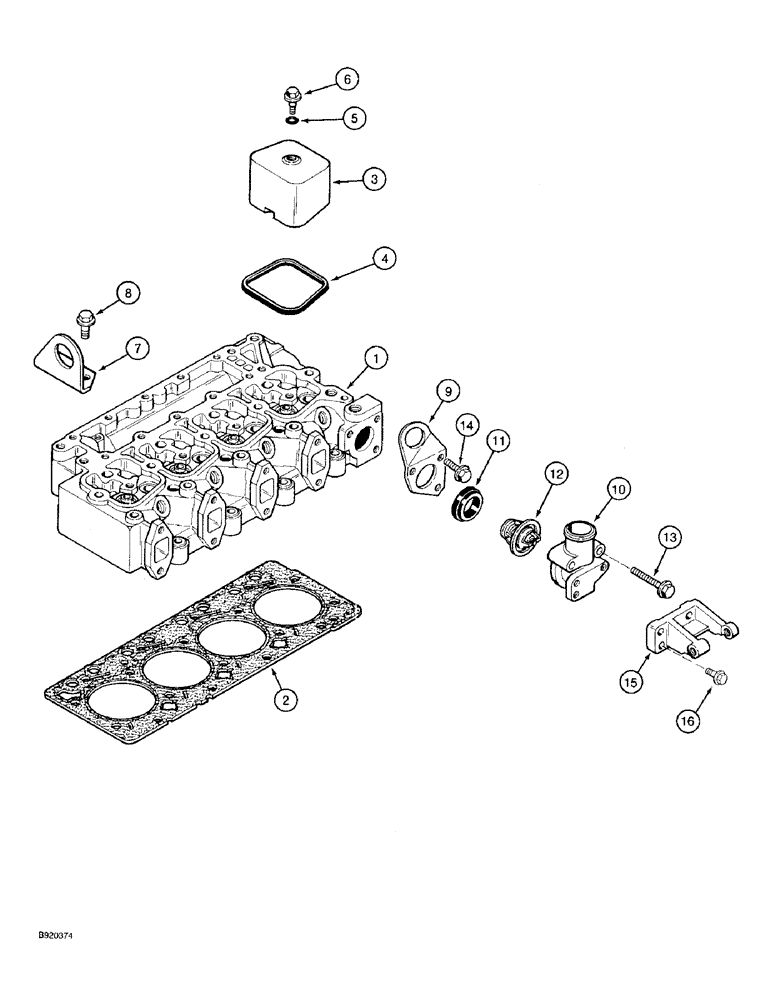

Запчасти Case 580SK (2-34) - CYLINDER HEAD AND COVERS, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD cylinder, engine, part list Figure 2-36, cylinder head and covers 4 - 390 engine, 4t - 390 engine

1шт.

2

J282999

GASKET

cylinder head, standard, replaces J918302 gasket, replaced J921393, cylinder head and covers 4 - 390 engine, 4t - 390 engine

1шт.

2

J921395

CYLINDER HEAD GASKET

cylinder head, 0.25 mm thicker, replaces J917355 and J918303 gasket, cylinder head and covers 4 - 390 engine, 4t - 390 engine

1шт.

2

J921397

GASKET

cylinder head, 0.50 mm thicker, replaces J915721 and J918304 gasket, cylinder head and covers 4 - 390 engine, 4t - 390 engine

1шт.

3

J902604

COVER

rocker arm, cylinder head and covers 4 - 390 engine, 4t - 390 engine

4шт.

4

J902666

GASKET

SEAL rocker arm cover, cylinder head and covers 4 - 390 engine, 4t - 390 engine

4шт.

5

J282133

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt, replaces J910824 O-ring, cylinder head and covers 4 - 390 engine, 4t - 390 engine

4шт.

6

J907049

BOLT,Hex

hex flange, special, cylinder head and covers 4 - 390 engine, 4t - 390 engine

4шт.

7

J908118

BRACKET

lifting, rear, cylinder head and covers 4 - 390 engine, 4t - 390 engine

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

heavy hex flange, 12 - 1.75 x 25 mm, class 10.9, cylinder head and covers 4 - 390 engine, 4t - 390 engine

2шт.

9

J903757

BRACKET

lifting, front, thermostat and housing

1шт.

10

J914409

HOUSING

thermostat, thermostat and housing

1шт.

A77736

THERMOSTAT

KIT water, thermostat, thermostat and housing, Includes: Ref. 11 and 12

1шт.

11

J923331

GASKET

thermostat housing, replaces J920020 gasket, thermostat and housing

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT water, thermostat and housing

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 70 mm, Thermostat and housing

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm, Thermostat and housing

1шт.

15

J910713

SUPPORT

alternator mounting, thermostat and housing

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Thermostat and housing

3шт.
