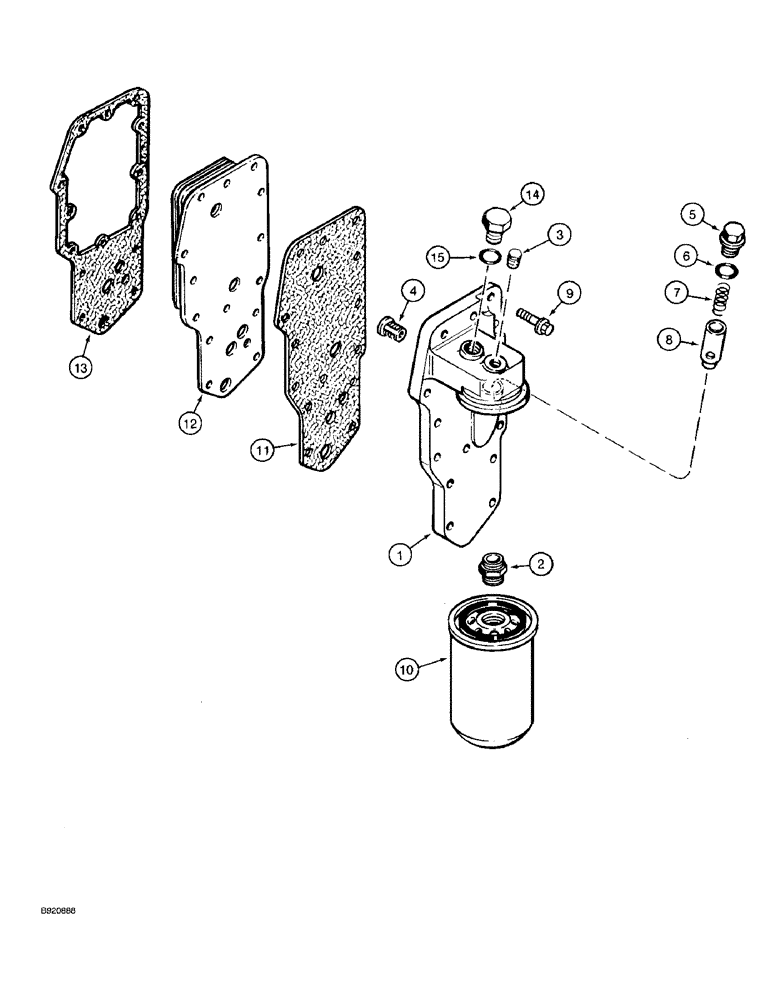

Запчасти Case 580SK (2-30) - OIL FILTER AND COOLER, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

J915243

FILTER COVER

HEAD ASSEMBLY oil filter and cooler, prior to Engine Serial Number 44475085, no longer available, for service order J918954 head assembly

1шт.

J918954

HEAD

ASSEMBLY oil filter and cooler, Engine Serial Number 44475085 and after, Includes: Ref. 1 and 2.

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD oil filter and cooler

1шт.

2

J909355

ADAPTER

filter head

1шт.

3

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

1шт.

4

J902338

VALVE, PRESSURE RELI

VALVE relief, pressure

1шт.

5

J915787

PLUG

pipe

1шт.

6

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

sealing

1шт.

7

J918427

SPRING

compression

1шт.

8

J918428

PLUNGER

regulator, pressure

1шт.

9

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm

14шт.

10

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

FILTER lube oil, cartridge

1шт.

11

J918257

GASKET

filter head

1шт.

12

J921557

COOLER

CORE oil, replaces J918292 core

1шт.

13

J918256

GASKET

cooler core

1шт.

14

J919686

PLUG

hex, 12 mm threaded, used on engines without a turbocharger oil supply, Includes: Ref. 15.

1шт.

15

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.
