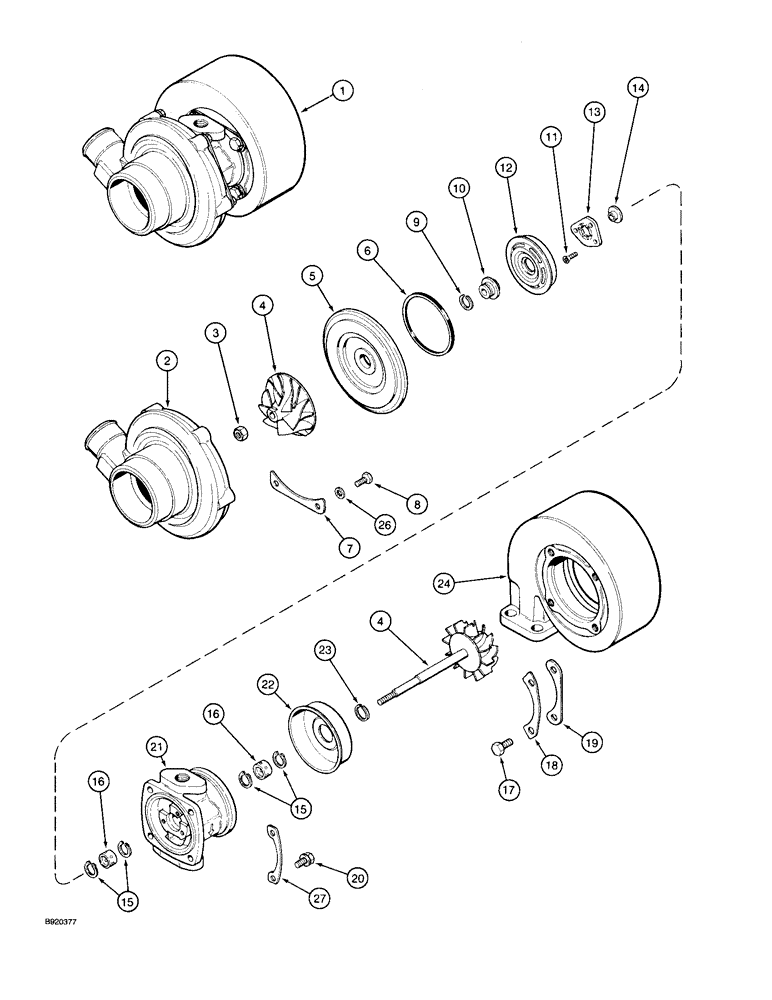

Запчасти Case 580SK (2-28) - TURBOCHARGER ASSEMBLY, 4T-390 ENGINE (02) - ENGINE

1

J908293

TURBOCHARGER

TURBOCHARGER ASSEMBLY engine, new, 1/4 inch PT port in bearing housing, no longer available, for service order J919135 turbocharger assembly plus one J919687 adapter and 238-5013 O-ring, Fig. 10 and 11 on Figure 2-26

1шт.

1

JR908293

REMAN-TURBOCHARGER

Turbocharger Assembly Remanufactured, component parts shown on this page do not apply to the remanufactured assembly

1шт.

1

JC908293

CORE

Return Part Number, Use this part number to return turbocharger core for credit when using a remanufactured assembly

1шт.

1

J919135

TURBOCHARGER

TURBOCHARGER ASSEMBLY engine, new, 12 mm straight thread port in bearing housing, Includes: Ref. 2 through 27.

1шт.

1

JR802290

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

JC535381

CORE-TURBOCHARGER

Return Part Number

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING compressor

1шт.

3

NSS

NOT SOLD SEPARAT

NUT hex, lock

1шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

4

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY turbocharger

1шт.

5

NSS

NOT SOLD SEPARAT

DIFFUSER compressor

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL diffuser

1шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE diffuser clamping

3шт.

8

NSS

NOT SOLD SEPARAT

SCREW cap

6шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL split ring, compressor

1шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

10

NSS

NOT SOLD SEPARAT

SLINGER oil

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW flat head Torx

3шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

12

NSS

NOT SOLD SEPARAT

BAFFLE oil

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING thrust

1шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

14

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

15

NSS

NOT SOLD SEPARAT

RING snap, retaining

4шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING impeller shaft

2шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

17

NSS

NOT SOLD SEPARAT

BOLT plate retaining

4шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

18

NSS

NOT SOLD SEPARAT

PLATE lock, turbine housing

2шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE clamping, turbine housing

2шт.

20

NSS

NOT SOLD SEPARAT

BOLT ASSEMBLY hex, lock, includes washer

4шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING turbine bearing

1шт.

22

NSS

NOT SOLD SEPARAT

SHIELD heat, turbine

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL piston ring, turbine

1шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING turbine

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER internal tooth lock

6шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE lock, turbine bearing housing

2шт.

Part of turbocharger overhaul kit P/N J904772.

1шт.

J904772

PACKAGE, REPAIR

KIT overhaul, turbocharger, Includes: Ref. 3, 6, 8, 9, 11, 13, 15 - 18, 20, 23, 26 and 27

1шт.
