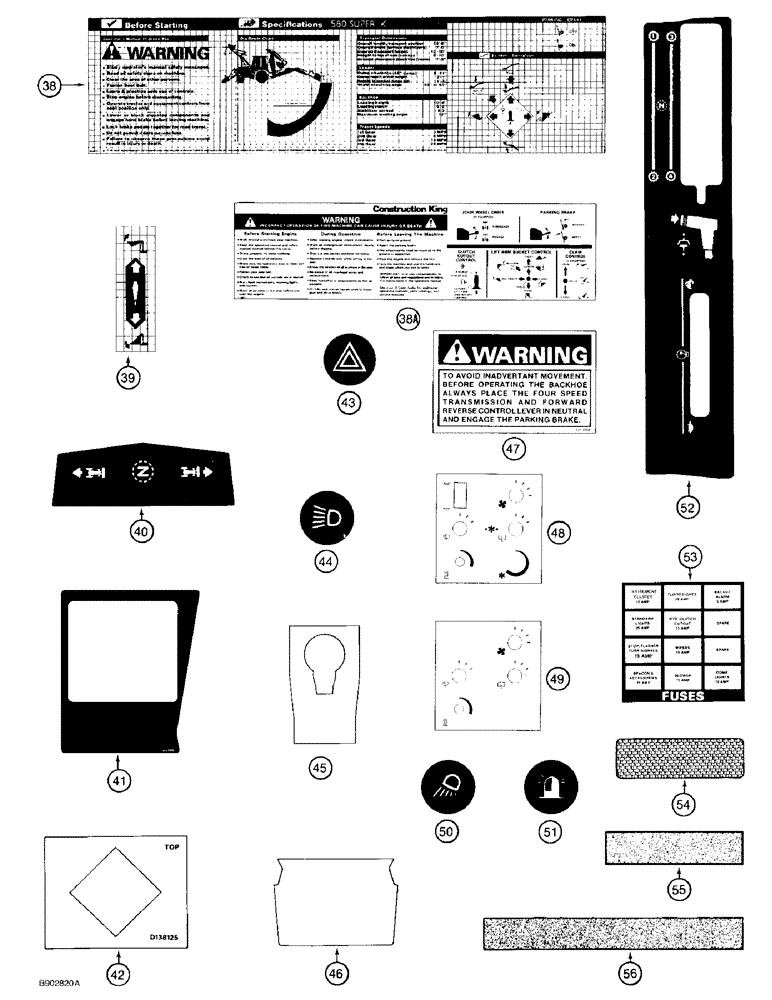

Запчасти Case 580SK (9-172) - DECALS (09) - CHASSIS/ATTACHMENTS

38

D150235

DECAL

Warning, before starting engine study operator's manual messages/dig depth specs/loader control pattern, front instrument panel, storage compartment, used with Ref. 39 and 66 on Figure 9-174, no longer available, order D150832, Ref. 38A

1шт.

38a

D150832

DECAL

Warning, before starting engine study operator's manual messages/dig depth specs/loader control pattern, front instrument panel, storage compartment, also includes 4WD engagement and clam bucket control, if used

1шт.

39

D147981

DECAL

clam bucket control pattern, front instrument panel, storage compartment, if used

1шт.

40

D137615

DECAL

shuttle shift lever control pattern, on steering column cover

1шт.

41

D137399

DECAL

at loader control lever boot, front console, if used

1шт.

42

D138125

DECAL

transparent green, under turn signal arrow symbols

2шт.

43

D141643

DECAL

flasher lamp symbol, front console switch plate

1шт.

44

D137272

DECAL

driving lamp symbol, front console switch plate

1шт.

45

R53911

DECAL

left-hand cab console, upper, at cup holder, if used

1шт.

46

R53912

DECAL

left-hand cab console, lower

1шт.

47

D150899

DECAL

Warning, to avoid inadvertant movement before operating the backhoe, replaces 321-6958 decal

1шт.

48

97300C2

DECAL

instrument symbols, heater, air conditioner, blower, wipers, and dome lamp, cab control panel, models with air conditioning

1шт.

49

97301C2

DECAL

instrument symbols, heater, blower, wipers, and dome lamp, cab control panel, models without air conditioning

1шт.

50

D137273

DECAL

optional work lamp symbol, right-hand console switch plate

1шт.

51

D137279

DECAL

rotating beacon symbol, right-hand console switch plate

1шт.

52

D140826

DECAL

hand throttle control pattern, right-hand side console

1шт.

53

D148058

DECAL

fuse location, fuse box cover

1шт.

54

D87870

DECAL

REFLECTOR red

2шт.

55

D55216

PAD,2" x 9"

STRIP anti-skid

6шт.

56

D80270

ANTI-SKID STRIP,635mm / 25 Inch

STRIP, ANTI-SKID, Operators compartment

1шт.
