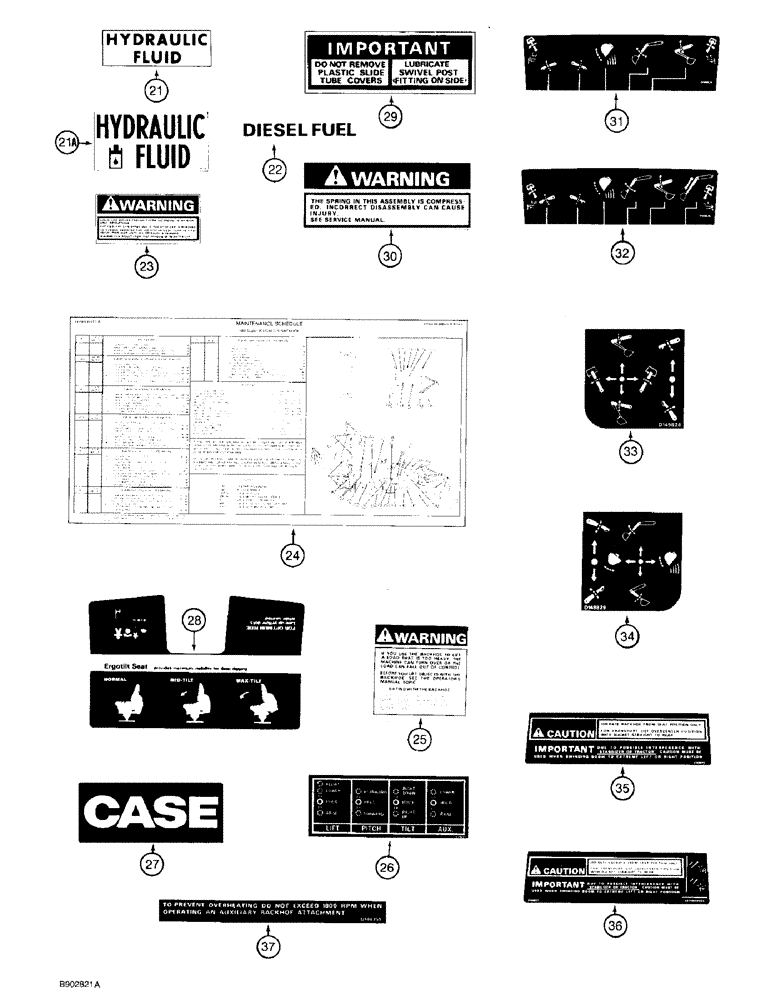

Запчасти Case 580SK (9-170) - DECALS (09) - CHASSIS/ATTACHMENTS

21

321-229

DECAL

Hydraulic Fluid, no longer available, order 321-6376, Ref. 21A

1шт.

21a

321-6376

DECAL

Hydraulic Fluid

1шт.

22

321-230

DECAL

Diesel Fuel

1шт.

23

321-6672

DECAL

Warning, check and service cooling system

1шт.

24

8-80905

DECAL

Maintenance Schedule, 580 Super K, supplied by Parts and Components

1шт.

25

321-6046

WARNING DECAL

DECAL, WARNING, Backhoe lifting load

1-2шт.

26

321-6059

DECAL

three-point hitch control pattern, if used

1шт.

27

D124115

DECAL

Case, three-point hitch frame, if used

2шт.

28

N14315

DECAL

seat tilt adjustment, suspension seats only, if used

1шт.

29

N14295

DECAL

Important, do not remove plastic slide tube covers, if used

1шт.

30

321-6774

WARNING DECAL

DECAL, WARNING, The spring in this assembly is compressed, if used

1шт.

31

D149824

DECAL

standard backhoe control pattern, with foot swing, upper, for models with auxiliary hydraulics for optional rear hydraulic attachments order D149825 decal

1шт.

32

D149825

DECAL

extendahoe control pattern, with foot swing, upper, or models with auxiliary hydraulics for optional rear hydraulic attachments

1шт.

33

D149828

DECAL

standard backhoe control pattern, with hand swing, upper, left-hand side of control console

1шт.

34

D149829

DECAL

standard backhoe control pattern, with hand swing, upper, right-hand side of control console

1шт.

35

D149826

IMPORTANT DECAL

DECAL - Caution, operate backhoe from seat position only, lower, for all models with foot swing backhoe controls and standard backhoe models with hand swing

1шт.

36

D149827

IMPORTANT DECAL

DECAL - Caution, operate backhoe from seat position only, lower, for extendahoe backhoe models with hand swing only

1шт.

37

D140355

DECAL

to prevent overheating do not exceed 1800 rpm when operating an auxiliary backhoe attachment, used on models with auxiliary hydraulics for optional rear hydraulic attachments, on side console

1шт.
