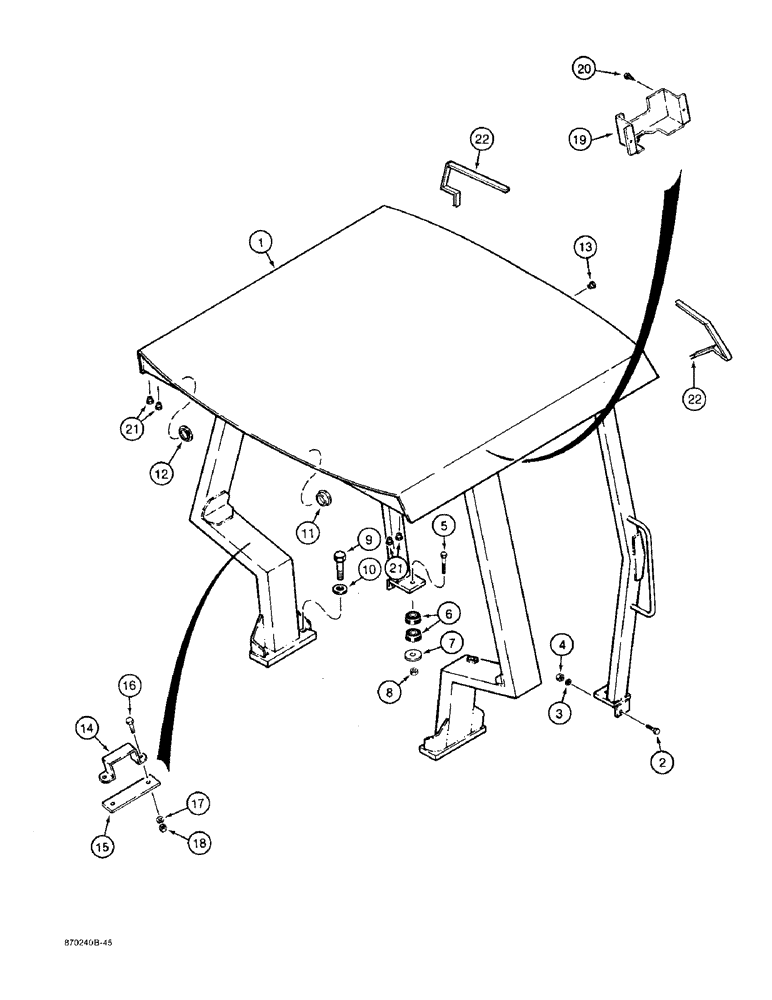

Запчасти Case 580SK (9-162) - ROPS CANOPY (09) - CHASSIS/ATTACHMENTS

1

D104591

KIT

CANOPY ROPS, machinery item, order from Machinery Price List replaced REF

1шт.

2

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, attaches canopy to front corner of operator compartment frame

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

hex, 5/8 NC x 4 inch, grade 8, mounts canopy to front of operator compartment frame

2шт.

6

D138565

SHOCK ABSORBER

INSULATOR frame mounting

4шт.

7

D89007

WASHER

flat, 5/8 x 2-3/4 inch, hardened, special

2шт.

8

429-1010

NUT,5/8"-11, G8

2шт.

9

426-1452

BOLT,Hex, 7/8" - 9 x 3-1/4", Gr 8

hex, 7/8 NC x 3-1/4 inch, grade 8, rear ROPS post mounting to rear plate of operator compartment frame

4шт.

10

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

flat, 15/16 x 1-3/4 x 1/8 inch, hardened

4шт.

11

D93716

PLUG,73.mm ID x 88.9mm OD

button, 3 inch, if used

4шт.

12

353-417

PLUG,Dome, 2.000" hole, Nylon

nylon, 2 inch, if used

8шт.

13

353-405

PLUG,Dome, .562" hole, Nylon

button, 9/16 inch, if used

4шт.

14

D136652

BRACKET

support, Serial Range: mounts-fenders

2шт.

15

D136653

PLATE

support bracket, mounts under fender

2шт.

16

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

4шт.

17

492-11038

LOCK WASHER,3/8"

4шт.

18

425-106

NUT,3/8"-16, Cl 5

4шт.

19

D132337

COVER

wiring

1шт.

20

281-4556

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/8"

SCREW self-tapping, hex washer head, No. 10 NC x 3/8 inch

2шт.

21

353-405

PLUG,Dome, .562" hole, Nylon

button, 9/16 inch

4шт.

22

D60180

STRIP

TRIM edge, 14-1/2 inch long, cut from F42827 bulk

2шт.

F42827

TRIM,2946.4mm L

TRIM edge, 116 inch

1шт.
