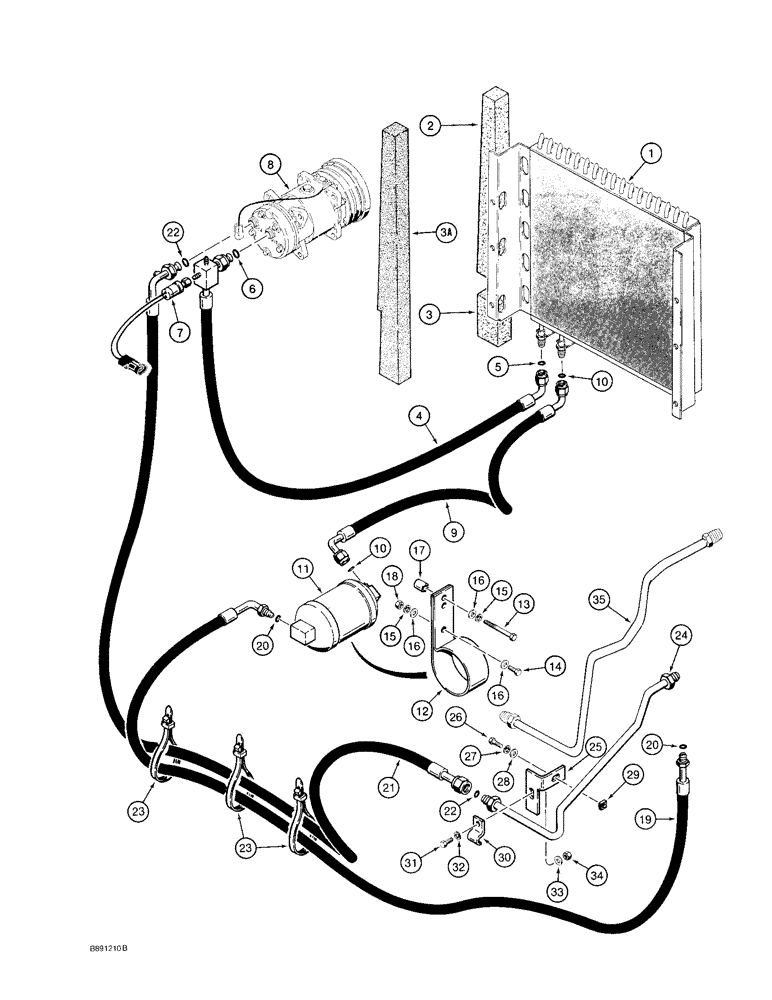

Запчасти Case 580SK (9-158) - CONDENSER, RECEIVER-DRIER AND AIR CONDITIONER LINES (09) - CHASSIS/ATTACHMENTS

1

A189260

CONDENSER

coil, refrigerant cooler, uses existing oil cooler to radiator hardware

1шт.

2

D140840

FOAM

BAFFLE base size is 2-3/16 inch, 55 mm, x 17-3/4 inch, 450 mm, high, cut from D92228 bulk pad, see below, no longer available, replaced by Ref. 3A, 111996A1 baffle

2шт.

3

D140841

FOAM

BAFFLE base size is 2-3/8 inch, 60 mm, x 3-15/16 inch, 100 mm, high, cut from D92228 bulk pad, see below, no longer available, replaced by Ref. 3A 111996A1 baffle

2шт.

3a

111996A1

BAFFLE

base size is 3-3/16, 81, x 24-39-64 inch, 625 mm, high, cut from D92228 bulk pad, see below

2шт.

4

1977418C1

A/C HOSE

1160 mm long, compressor to condenser, Includes: Ref. 5 and 6

1шт.

5

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

6

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk (Replaces 371544R1)

1шт.

7

92038C1

SWITCH, A/C HIGH PRE

SWITCH air conditioning, high pressure cutout, attaches to main engine harness

1шт.

8

97204C1

COMPRESSOR

ASSEMBLY air conditioning, parts list Figure 4-10, see Figure 4-14 for mounting

1шт.

97204C1R

COMPRESSOR

Reman compressor

1шт.

97204C1C

COMPRESSOR

Return Number

1шт.

8

1977959C1R

REMAN-A/C COMPRESSOR

Reman For New PN 97204C1

1шт.

8

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

9

1977419C1

HOSE

660 mm long, condenser to receiver-drier, Includes: Ref. 10

1шт.

10

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

11

143469C2

RESERVOIR

RECEIVER-DRIER system

1шт.

12

D145289

SUPPORT

BRACKET receiver-drier

1шт.

13

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

hex, 3/8 NC x 2-1/2 inch

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

1шт.

15

492-11038

LOCK WASHER,3/8"

2шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

3шт.

17

D123485

SPACER

bracket

1шт.

18

425-106

NUT,3/8"-16, Cl 5

1шт.

19

1977420C1

HOSE

3322 mm long, receiver-drier to cab tube, Includes: Ref. 20

1шт.

20

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

21

1977417C1

HOSE

3050 mm long, compressor to cab base, Includes: Ref. 22

1шт.

22

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk (Replaces 371544R1)

2шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

3шт.

D92228

BAFFLE

bulk pad, 900 mm x 1400 mm x 38 mm

1шт.

345-44

ADHESIVE

spray can, for attaching foam pads to metal surfaces purchase locally

1шт.

24

D147486

PIPE

TUBE to cab tube, no longer available, order D150571 tube, Ref. 35

1шт.

25

D144908

SUPPORT

BRACKET air conditioner tube

1шт.

26

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

1шт.

27

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

28

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

29

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

square, 5/16 inch NC

1шт.

30

D143430

CLAMP

tube

1шт.

31

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

1шт.

32

492-11038

LOCK WASHER,3/8"

1шт.

33

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

1шт.

34

425-106

NUT,3/8"-16, Cl 5

1шт.

35

D150571

PIPE

TUBE to cab tube

1шт.
