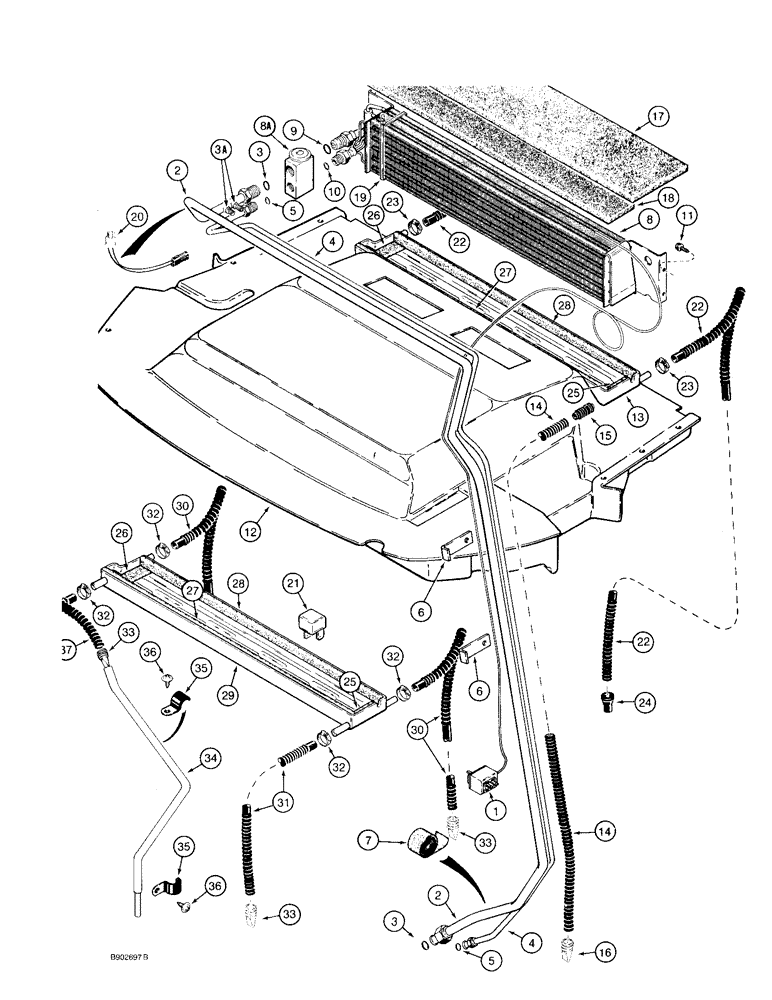

Запчасти Case 580SK (9-156) - CAB AIR CONDITIONER (09) - CHASSIS/ATTACHMENTS

1

1340287C1

SWITCH

temperature control, air conditioning

1шт.

2

1977421C1

TUBE

suction, Includes: Ref. 3 and 3A

1шт.

3

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk (Replaces 371544R1)

2шт.

3a

1250594C1

CORE

VALVE internal

2шт.

4

1977422C1

TUBE

pressure, Includes: Ref. 5

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

6

R53634

SHIN

CLAMP bracket, mounts to ROPS post stud with existing nut

2шт.

7

1954475C1

ROLL

TAPE cork, insulating, bulk roll, 360 inch, 9144 mm, long

1шт.

8

1340493C3

EVAPORATOR

CORE evaporator, Includes: Ref. 8A, 9 and 10

1шт.

8a

98370C3

VALVE

evaporator

1шт.

9

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, Upper, core

1шт.

10

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk, Lower core

1шт.

11

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- Self tapping, hex washer, 1/4 NC x 3/4 inch

4шт.

12

REF

INSTRUCTION

HEADLINER rear section, see Figure 9-146

1шт.

13

1344430C1

HOUSING

PAN condensation drain, purchase seals separately, Ref. 25-28, no longer available, order 1990990C1 pan, Ref. 29

1шт.

14

1276252C1

HOSE ASSY.

HOSE, 90 inch, 2286 mm, long, cut to required length from 198091C2 bulk hose, rear drain, 1344430C1 pan, Ref. 13, if used

2шт.

15

1250522C3

FITTING

TUBE adapter, drain, if used

2шт.

16

109239C2

CHECK VALVE

VALVE, CHECK, Rubber, Rear drain hose

2шт.

17

1338301C1

SEAL

SEAL, 13 x 80 x 825 mm, heater and air conditioner cores, cut from 1340329C1 bulk

1шт.

18

1338301C1

SEAL

SEAL, 13 x 80 x 825 mm, core, cut from 1340329C1 bulk

1шт.

19

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP cable lock, 28-1/4 inch

2шт.

20

92153C1

SWITCH

low pressure

1шт.

21

146461C1

RELAY

30 ampere, connects to cab harness

1шт.

22

F45410

TUBE

HOSE, 5/8, 15, OD x 110 inch, 2794 mm, long, front drain, 1344430C1 pan, Ref. 13, cut from F64508, see below, if used

2шт.

23

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP adj, 1/4 - 5/8 inch dia

2шт.

24

F44790

VALVE

END rubber, Ref. 22 front drain hose, if used

2шт.

25

1987091C2

FOAM

SEAL, 55 x 150 x 9 mm, right-hand, cut from 1987092C1 bulk

1шт.

26

1987092C2

FOAM

SEAL foam, adhesive backed, pan, left-hand

1шт.

27

1987096C1

PLATE

(Seal), 9 x 19 x 765 mm, Pan, Rear, Cut from 98355C1 bulk

1шт.

28

1987097C1

PANEL

SEAL, 9 x 19 x 735 mm, pan, front, cut from 98355C1 bulk

1шт.

29

1990990C1

HOUSING

PAN condensation drain, includes seals, Ref. 25-28

1шт.

30

1990983C1

HOSE,11.00 mm ID, 13.30 mm ID x 2794.00 mm

Front drain, 1990990C1 Pan 11.00 mm ID, 13.30 mm ID x 2794.00 mm

2шт.

31

1990999C1

HOSE,11.00 mm ID, 13.30 mm ID x 2286.00 mm

Rear drain, 1990990C1 Pan, Cut to required length from 1990983C1 hose, Ref. 30 11.00 mm ID, 13.30 mm ID x 2286.00 mm

1-2шт.

32

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP adj, 1/4 - 5/8 inch dia

4шт.

33

109239C2

CHECK VALVE

VALVE, CHECK, Rubber, Drain hose

4шт.

34

112468A1

TUBE

drain, left-hand rear, if used, replaces Ref. 31 hose on some models

1шт.

35

112726A1

CLIP

CLAMP drain tube, if used

2шт.

36

113319A1

CAPTIVE WASHER SCREW

SCREW oval Phillips, with washer, self-tapping, No. 10-16 x 3/4 inch, if used

2шт.

37

112506A1

A/C HOSE,11.00 mm ID, 13.30 mm ID x 1778.00 mm

- Drain, LH rear, Cut to required length from F64508 hose, See below, If used 11.00 mm ID, 13.30 mm ID x 1778.00 mm

1шт.

98355C1

FOAM INSULATION

SEAL, 32 x 163 x 810 mm, foam, adhesive back

1шт.

198091C1

HOSE,12.95mm ID x 15240mm L

11/16, 17, x 1 ft long, bulk, drain

1шт.

1340329C1

SEAL

68 ft long, bulk

1шт.

1987092C1

FOAM

SEAL, 65 x 95 x 150 x 9 mm, foam, adhesive back

1шт.

F64508

HOSE,0.43" ID x 100' Bulk

front drain 0.43" ID x 100' Bulk

1шт.
