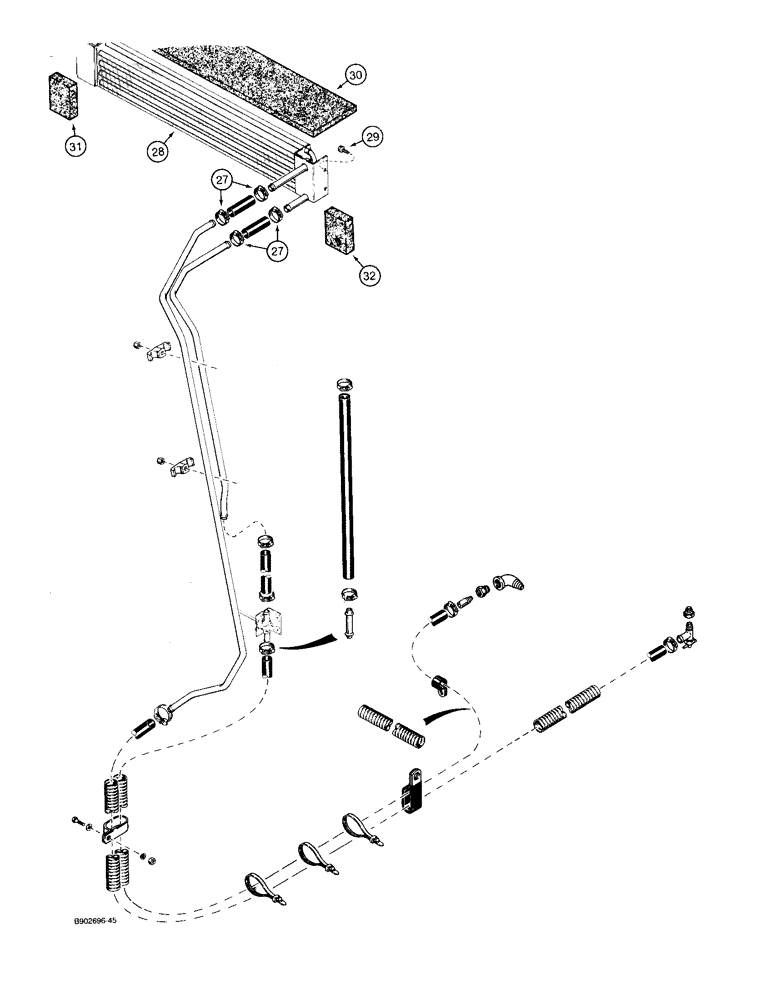

Запчасти Case 580SK (9-154) - CAB HEATER (09) - CHASSIS/ATTACHMENTS

27

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Special (11/16 - 1-1/4" dia.) #24

4шт.

28

1338312C2

HEATER

CORE heater, mounts to cab frame

1шт.

29

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- Self tapping, hex washer, 1/4 NC x 3/4 inch

4шт.

30

1338301C1

SEAL

SEAL, 1/2, 13, x 3-5/32, 80, x 32-1/2 inch, 825 mm, heater and air conditioner, order 1340329C1 bulk seal and cut to required size

1шт.

31

1987093C1

STRIP

SEAL, 1, 25 x 2-3/4, 70, x 4 inch, 100 mm, heater core, left-hand, cut from 98355C1 bulk

1шт.

32

1987094C1

FOAM

SEAL, 2-3/4, 70, x 4, 100, x 1 inch, 25 mm, heater core, right-hand, cut from 98355C1 bulk

1шт.

98355C1

FOAM INSULATION

SEAL, 1-1/4, 32, x 6-13/32, 163, x 31-7/8 inch, 810 mm, foam, adhesive back, bulk

1шт.

1340329C1

SEAL

68 ft, foam, adhesive back, bulk

1шт.
