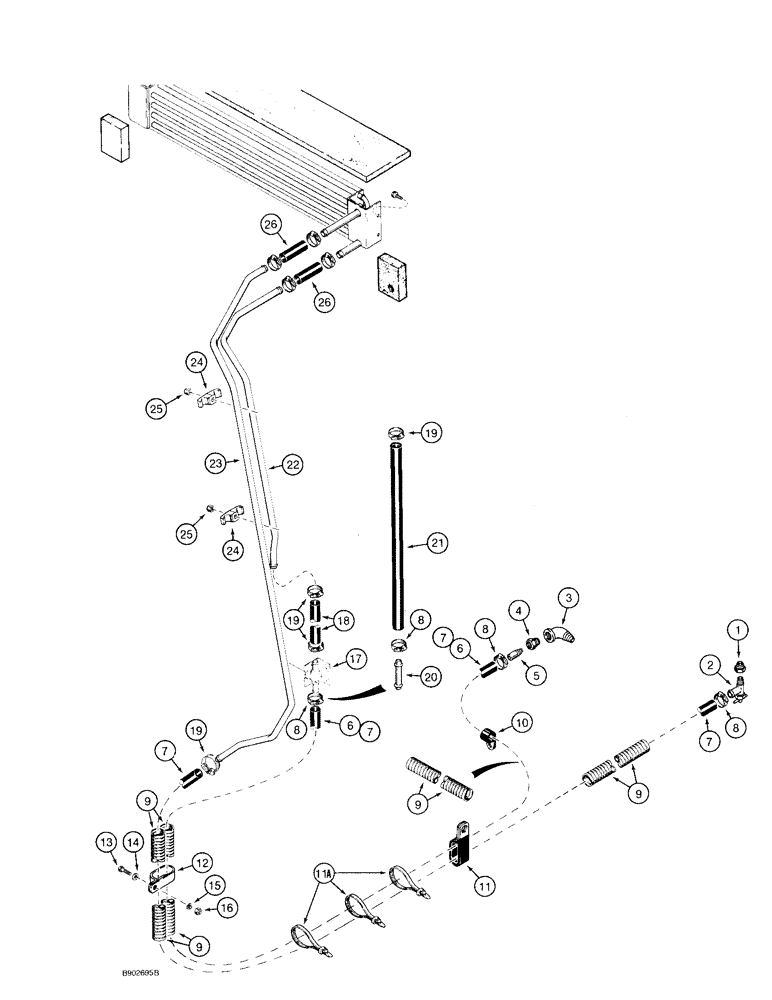

Запчасти Case 580SK (9-152) - CAB HEATER (09) - CHASSIS/ATTACHMENTS

1

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

pipe, 1/2 male x 3/8 inch female, replaces existing plugs

1шт.

2

3018031

VALVE shutoff, right-hand side of engine, at water pump, replaces A16764

1шт.

3

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

street, 90 degree, 1/2 inch PT

1шт.

4

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

pipe, 1/2 male x 3/8 inch female

1шт.

5

L17985

FITTING,3/8" - 18 NPT

NIPPLE, 3/8 inch NPT, left-hand side of engine

1шт.

6

D136068

LARGE HOSE,0.63" ID, SAE 20R3 Class D1

HEATER HOSE - 104-1/16" (2643 mm), Cut to required length from 97252CX bulk hose, See below, LH, Mounts to heater temperature control valve, No longer used, Order D132977 hose, Ref. 7 0.63" ID, SAE 20R3 Class D1

1шт.

1301342C1 tube and R54969 hose, Ref. 20 and 21, are used in production with D136068 104 inch hose, Ref. 6, for ease of pod assembly; however, Ref. 20 and 21 are not required for service if Ref, 6 hose is cut to 146 inches instead of 104-1/16 inches.

1шт.

7

D132977

LARGE HOSE,0.63" ID, SAE 20R3 Class D1

HEATER HOSE - RH (112-21/64", 2853 mm), Cut to required length from 97252CX bulk hose, See below 0.63" ID, SAE 20R3 Class D1

1-2шт.

8

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable, Heater hoses #10, 0.56/1.06 Type F Worm

4шт.

9

D134399

LOOM

SLEEVE hose guard, replaces D132982

4шт.

10

515-23254

CLAMP,1", Insul, 3/8" Bolt

LH hose, Uses existing mounting hardware replaces R14668 1", Insul, 3/8" Bolt

1шт.

11

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

hose

1шт.

11a

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

3шт.

12

D132978

CLAMP

hose, at right-hand console

1шт.

13

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

14

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

1шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.

17

R52483

VALVE

temperature control, heater, see Figure 9-140 for mounting

1шт.

18

R54968

HEATER HOSE,15.50 mm ID x 205.00 mm

- Cut to required length from 97252CX bulk hose, See below, Heater temperature control valve to heater inlet tube 15.50 mm ID x 205.00 mm

1шт.

19

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Special (11/16 - 1-1/4" dia.) #24

4шт.

20

1301342C1

FITTING

TUBE, 5/8, 16, ID x 22 inch, 559 mm, long, used in production, not required for service

1шт.

1301342C1 tube and R54969 hose, Ref. 20 and 21, are used in production with D136068 104 inch hose, Ref. 6, for ease of pod assembly; however, Ref. 20 and 21 are not required for service if Ref, 6 hose is cut to 146 inches instead of 104-1/16 inches.

1шт.

21

R54969

HEATER HOSE,15.50mm ID x 292mm L

Cut to Required Length from Bulk Hose, Used in Production, Not Required for Service 15.50 mm ID x 292.00 mm

1шт.

1301342C1 tube and R54969 hose, Ref. 20 and 21, are used in production with D136068 104 inch hose, Ref. 6, for ease of pod assembly; however, Ref. 20 and 21 are not required for service if Ref, 6 hose is cut to 146 inches instead of 104-1/16 inches.

1шт.

22

R52504

HEATER TUBE,15.88 mm OD

TUBE heater inlet

1шт.

23

R52505

HEATER TUBE,15.88 mm OD

TUBE heater outlet

1шт.

24

D120613

CLAMP,20mm ID

plastic, tube, mounts on stud on ROPS post replaces R52657

2шт.

25

131-206

NUT,3/8"-16

NUT heavy hex, self-locking, 3/8 inch NC

2шт.

26

R54967

HEATER HOSE,15.50 mm ID x 70.00 mm

- Cut to required length from bulk hose 97252CX, See below, Heater core to tubes 15.50 mm ID x 70.00 mm

2шт.

97252CX

HOSE

bulk, 5/8, 16, x 15/16, 24, x 50 ft, 15240 mm, long, sold by the foot

1шт.
