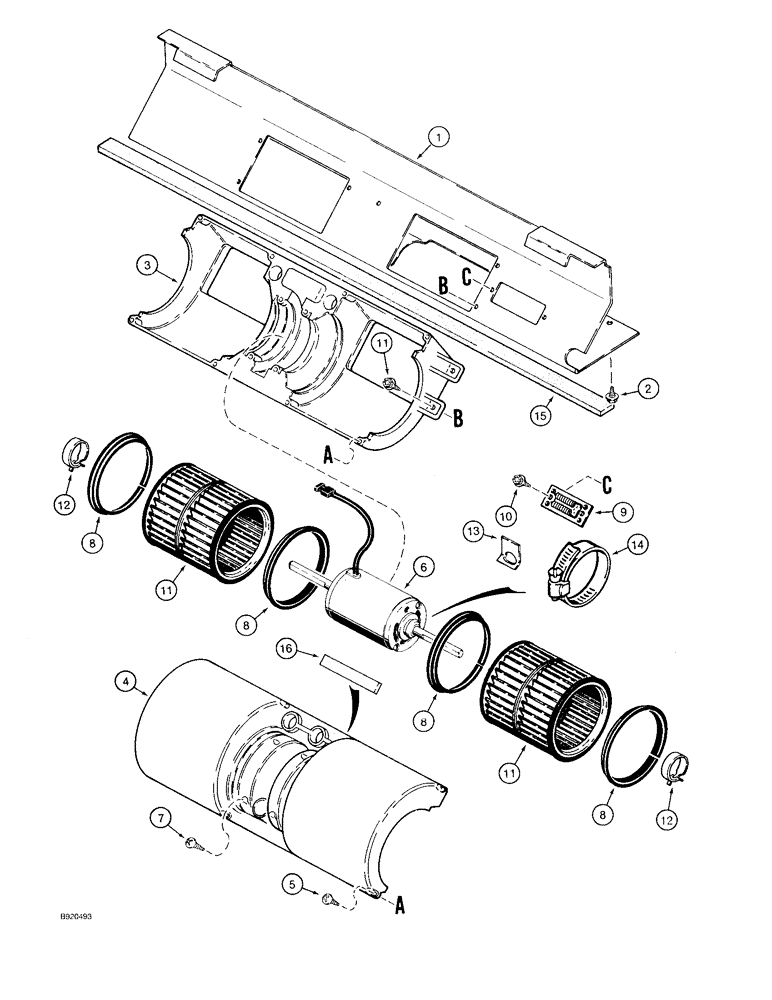

Запчасти Case 580SK (9-150) - CAB BLOWER (09) - CHASSIS/ATTACHMENTS

1

D126301

BRACKET

blower mounting

1шт.

2

281-54712

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- Self tapping, hex washer, 1/4 NC x 3/4 inch

5шт.

3

F64740

HOUSING

fans, lower

1шт.

4

F64741

HOUSING

fans, upper

1шт.

5

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

8шт.

6

R54415

MOTOR, ELECTRIC

MOTOR blower, 12 volt

1шт.

7

187-1928

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

SCREW self-tapping, pan Phillips, No. 10-16 x 1 inch

4шт.

8

F64739

RING

plastic, fan retaining

4шт.

9

F44900

RESISTOR

blower

1шт.

10

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW self-tapping, hex washer head, No. 10-16 x 1/2 inch

2шт.

11

F64935

BLOWER,Fan

FAN blower

2шт.

12

F64936

CLAMP

steel spring

2шт.

13

R51563

CLIP,ELECTRICAL

CLIP motor retaining clamp

1шт.

14

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP adj, 2-1/16 - 3 inch dia, motor retaining

1шт.

15

1987098C1

FOAM

SEAL, 1-1/16, 25, x 15/64, 6, x 37-51/64 inch, 960 mm, cut from 1340329C1 bulk seal, see below, foam, blower mounting, Serial Range: bracket-cab

1шт.

16

1999608C1

GASKET

38 x 102 x 2 mm thick

2шт.

1340329C1

SEAL

bulk, foam, 600 inch, 15240 mm, long

1шт.
