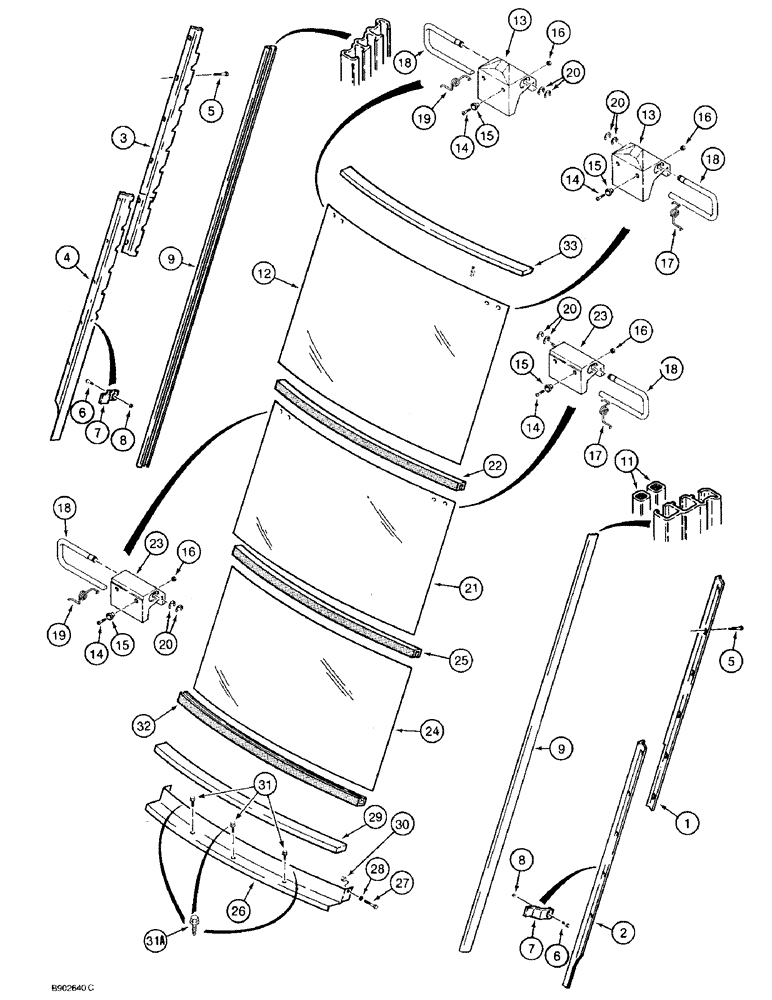

Запчасти Case 580SK (9-138) - CAB REAR WINDOW (09) - CHASSIS/ATTACHMENTS

1

97256C3

SUPPORT

BRACKET right-hand, upper

1шт.

2

97257C3

SUPPORT

BRACKET right-hand, lower

1шт.

3

97258C3

RETAINER

BRACKET left-hand, upper

1шт.

4

97259C3

SUPPORT

BRACKET left-hand, lower

1шт.

5

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

self-tapping, hex washer, No. 10 NC x 3/4 inch

18шт.

6

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex flange, 1/4 NC x 3/4 inch

2шт.

7

D129974

BRACKET

lower rear window

2шт.

8

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

2шт.

9

1989960C1

SLIPPER

CHANNEL track, replaces R52939 and R52940

2шт.

11

R52942

SEAL

SEAL, 60-15/32 inch, 1536 mm, long, foam, adhesive back, special, right-hand track channel only

2шт.

12

D129967

GLASS

upper rear window only

1шт.

13

97278C1

LATCH

upper rear window only

2шт.

14

442-11016

SCREW,Cross Oval Hd, #10-24 x 1"

machine, oval head Phillips, No. 10 NC x 1 inch

8шт.

15

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

special

8шт.

16

230-42409

NUT,#10-24, GA

NUT hex, self-locking, No. 10 NC

8шт.

17

1990727C1

SPRING

right-hand latch

2шт.

18

1344232C1

LEVER

latch, metal, left-hand and right-hand

4шт.

19

1990728C1

SPRING

left-hand latch

2шт.

20

A27795

RING

retaining, latch lever

8шт.

IF LOOKING FOR PLASTIC TWO FINGER LEVER #20- 580K BOOK 8-3462 PG 9-603 PART # 97255C1 FOR LEFT/ 97254C1 FOR RIGHT SIDE.

1шт.

21

D129968

GLASS

center rear window only

1шт.

22

D126198

SEAL,894mm L

35-29/32 inch, 912 mm, long, center window glass

1шт.

23

97277C1

LATCH

center window only

2шт.

24

D129969

GLASS

lower rear window only

1шт.

25

D126198

SEAL,894mm L

35-29/32 inch, 912 mm, long, lower window glass

1шт.

26

R54206

CROSSBAR

BRACKET horizontal, lower, mounts to cab frame

1шт.

27

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

hex, 5/16 NC x 1/2 inch

2шт.

28

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

29

D126201

RUBBER SEAL,20mm W x 912mm L x 10mm Thk

SEAL, 20 mm x 10 mm x 912 mm, neoprene sponge, adhesive back, lower rear glass

1шт.

30

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT hex, self-locking, 5/16 inch NC

2шт.

31

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW self-tapping, hex washer head, 5/16 NC x 3/4 inch, replaces D141589 bolt, if used

3шт.

31a

112865A1

SCREW

pointed, self-aligning, if used

3шт.

32

111471A1

EDGE

SEAL lower rear glass

1шт.

33

106974A1

SEAL,912mm L

20 mm x 10 mm x 912 mm, PVC foam, black, adhesive back, upper rear glass, replaces D126201 seal for upper rear glass

1шт.
