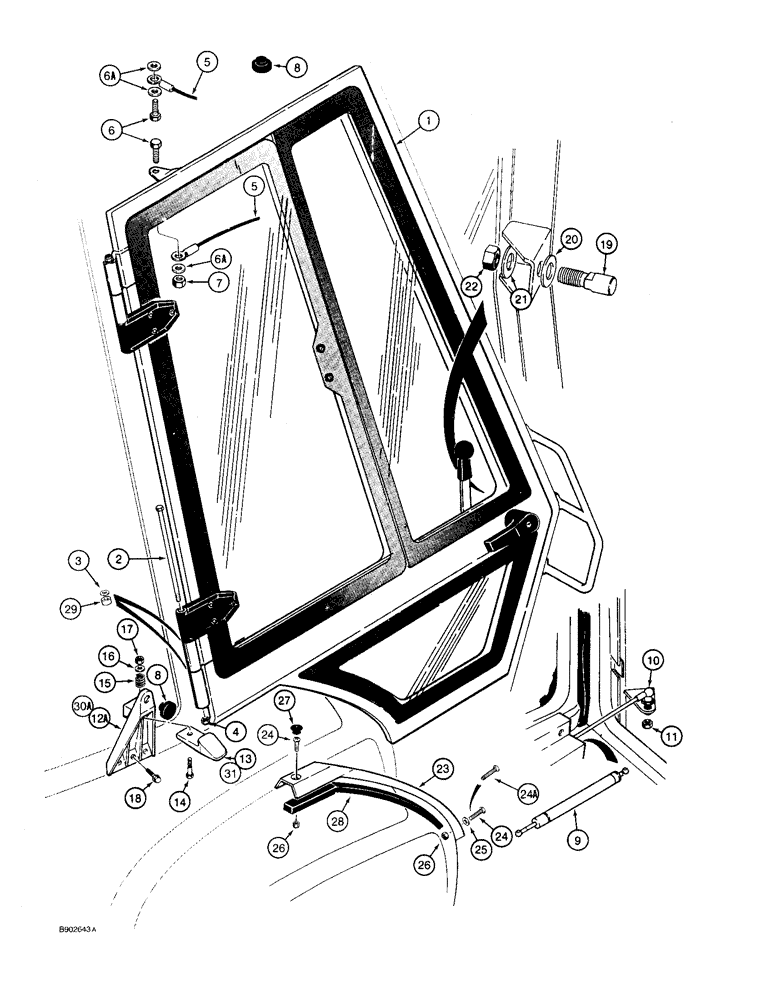

Запчасти Case 580SK (9-136) - LEFT-HAND AND RIGHT-HAND CAB DOOR MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

DOOR cab, see Figures 9-132 thru 9-136

1шт.

2

413-6152

BOLT,Hex, 3/8" - 16 x 9-1/2", Gr 5

hex, 3/8 NC x 9-1/2 inch

4шт.

3

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

thrust, plastic, hinge

8шт.

4

131-203

LOCK NUT,3/8"-16, GB, LH

NUT light hex, self-locking, 3/8 inch NC

4шт.

5

R53560

CABLE

door, upper

2шт.

6

113-174

PREV TORQUE BOLT,Locking, 5/16"-18 x 3/4", G5, Full Thd

BOLT, Locking, 5/16"-18 x 3/4", G5, Full Thd

4шт.

6a

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

6шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT hex, self-locking, 5/16 inch NC

2шт.

8

L60224

BUMPER

rubber, cab door frame and window latch

4шт.

9

F44881

CYLINDER ASSY.

CYLINDER left-hand and right-hand doors

2шт.

10

1340345C1

BALL STUD

STUD ball, cylinder

2шт.

11

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT hex, self-locking, 5/16 inch NC

2шт.

12

R53957

SUPPORT

BRACKET left-hand cab door window retaining, mounts to frame, brown, not shown, used on cab models with plastic roof cap, no longer available, order 106971A1, Ref. 30

1шт.

12a

R53956

SUPPORT

BRACKET right-hand cab door window retaining, mounts to frame, brown, used on cab models with plastic roof cap, no longer available, order 106972A1, Ref. 30A

1шт.

13

1344229C1

LATCH

door window to cab frame, used with Ref. 12 and 12A brackets, brown, no longer available, order 106973A1, Ref. 31

2шт.

15

1344321C1

SPRING

compression, left-hand and right-hand window latch release, replaces D36669

2шт.

16

495-21031

WASHER,1/4"

flat, 5/16 x 47/64 x 1/16 inch, if used

2шт.

17

230-4214

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

18

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex flange, 1/4 NC x 3/4 inch, Bracket to frame

6шт.

19

R52735

LATCH

STRIKER door latch

2шт.

20

F44748

SPRING WASHER

SPRING Belleville, washer

2шт.

21

495-81148

WASHER,7/16" x 1 1/4" x .134"

flat, 7/16 x 1-1/4 x 1/8 inch

2шт.

22

131-1129

LOCK NUT,7/16"-14, GA

NUT hex, self-locking, 7/16 inch NC

2шт.

23

1344394C1

SUPPORT

BRACKET plastic, right-hand fender sill

1шт.

23a

1344395C1

SUPPORT

BRACKET plastic, left-hand fender sill, not shown

1шт.

24

140-111

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

(2) used on models with optional deluxe interior and ten used on models with standard interior, if used Cross Pan Hd, 1/4"-20 x 1/2"

2-10шт.

24a

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

(8) used on models with optional deluxe interioir and (10) used on models with standard interior, if used Cross Pan Hd, 1/4"-20 x 3/4"

8-10шт.

25

195-81026

WASHER,.266" x 13/16" x .079"

flat, 17/64 x 13/16 x 5/64 inch

8шт.

26

230-4214

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

10шт.

27

353-405

PLUG,Dome, .562" hole, Nylon

button, 9/16 inch, fender bracket

2шт.

28

1343949C1

DOOR SEAL

rubber, 730 mm long, door sill

2шт.

29

107949A1

BUSHING

door hinge

8шт.

30

106971A1

SUPPORT

BRACKET left-hand cab door window retaining, mounts to frame, black, not shown, used on cab models without plastic roof cap, if used

1шт.

30a

106972A1

SUPPORT

BRACKET right-hand cab door window retaianing, mounts to frame, black, used on cab models without plastic roof cap, if used

1шт.

31

106973A1

LATCH

door window to cab frame, used with Ref. 30 and 30A brackets, black, if used

2шт.

brackets, black, if used

1шт.

14

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Latch to bracket Hex, 1/4"-20 x 1 1/4", G5

2шт.
