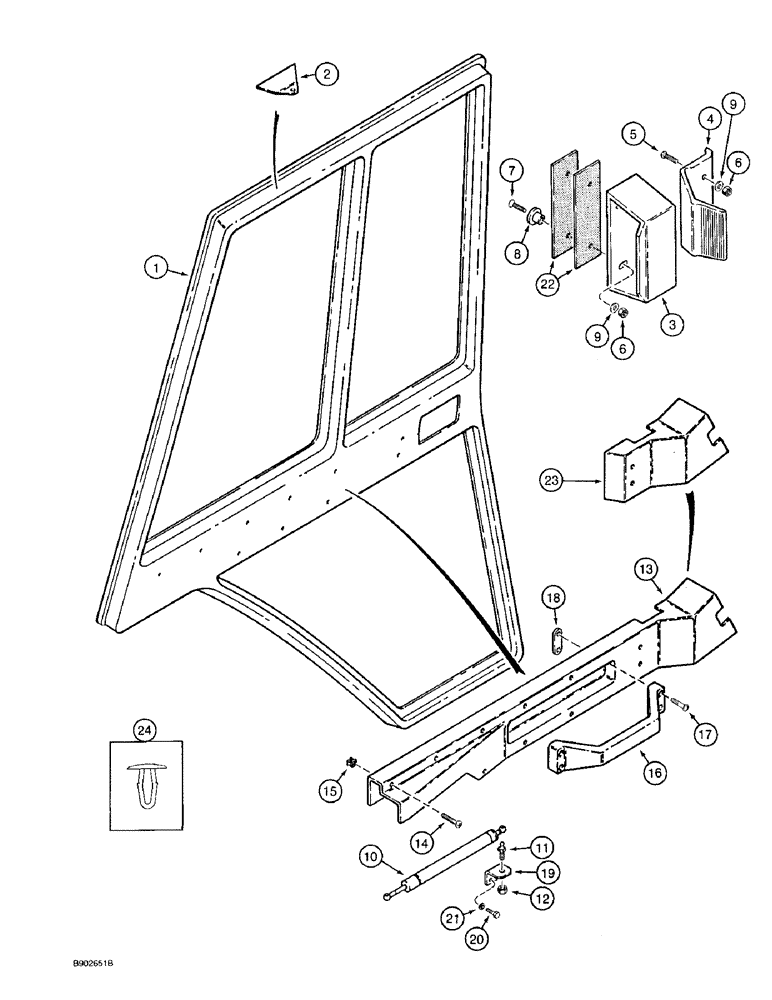

Запчасти Case 580SK (9-134) - LEFT-HAND AND RIGHT-HAND CAB DOORS - INTERIOR (09) - CHASSIS/ATTACHMENTS

1

97402C2

DOOR

FRAME left-hand door, replaces 97402C1 frame which uses Ref. 13 long door panel

1шт.

1a

97401C2

DOOR

FRAME right-hand door, not shown, replaces 97401C1 frame which uses Ref. 13A long door panel, Includes: Ref. 2

1шт.

2

R53562

BRACKET

cable, welded to left-hand or right-hand door frame

1шт.

3

97399C1

HANDLE

door window

2шт.

4

97398C1

LOCK ASSY

LATCH push type, door window

2шт.

5

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

(Replaces 182-584 screw) Cross Pan Hd, #10-24 x 3/4"

4шт.

6

F45165

SPECIAL NUT,#10-24

NUT hex, self-locking, No. 10 NC

8шт.

7

179-163

SCREW,Cross Oval Hd, #10 - 24 x 1"

machine, oval head Phillips, No. 10 NC x l inch

4шт.

8

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

nylon, black, Serial Range: glass-bracket

4шт.

9

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

(1/4 x 9/16 x 3/64") #12

8шт.

10

F44881

CYLINDER ASSY.

CYLINDER left-hand and right-hand doors

2шт.

11

1340345C1

BALL STUD

STUD ball, cylinder

2шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT hex, self-locking, 5/16 inch NC

2шт.

13

1344034C2

PANEL

left-hand door, used with 97402C1 frame, if used

1шт.

13a

1344033C2

PANEL

right-hand door, not shown, used with 97401C1 frame, if used

1шт.

14

260-16524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

SCREW, SELF TAPPING, pan Phillips, No. 10-16 x 1-1/2", Black, LH and RH door panels, replaces 187-371 screw

4-20шт.

15

R53000

GROMMET

RETAINER screw, left-hand and right-hand door panels

4-20шт.

16

1958970C1

HANDLE

left-hand and right-hand inner door

2шт.

17

165-129

HEX SOC SCREW,Self-Lkg, 1/4" - 20 x 3/4"

SCREW machine, pan head slotted, self-locking, 1/4 NC x 3/4 inch, black, left-hand and right-hand inner door handles

8шт.

18

1971368C1

PLATE ASSY.

PLATE retainer, left-hand and right-hand inner door handle

4шт.

19

1977399C1

SUPPORT ASSY.

BRACKET cylinder

2шт.

20

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

4шт.

21

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

22

R54047

PAD,30mm OD x 0.76mm Thk

SHIM latch bracket, left-hand and right-hand door window

4шт.

23

108938A1

PANEL

left-hand door, used with 97402C2 frame, if used

1шт.

23a

108936A1

PANEL

right-hand door, used with 97401C2 frame, if used, not shown

1шт.

24

120865A1

PLUG

plastic, used with Ref. 23, 108938A1, or Ref. 23A, 108936A1, panels and 97402C1 or 97401C1 door frames, if used

1шт.

Some cabs were built using 97402C1 or 97401C1 frames and Ref. 23 or 23A, 108938A1 or 108936A1, panels. Ref. 24 plug is used for those cabs.

1шт.
