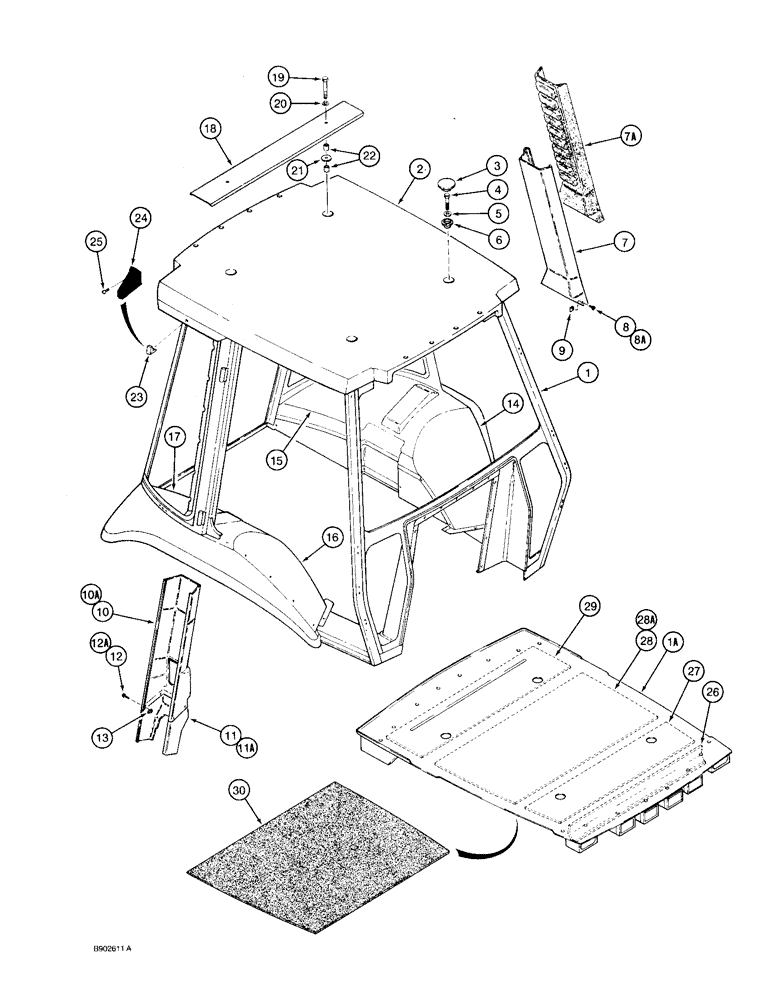

Запчасти Case 580SK (9-128) - CAB FRAME, ROOF CAP, COVERS, AND INSULATION (09) - CHASSIS/ATTACHMENTS

1

108762A1

FRAME ASSY

FRAME cab, with plastic roof cap prior to, Start Serial: JAB0023786

1шт.

Fenders are available as a seoerate item. Old fenders must be cut off to weld the new ones on.The part numbers are P/N R52549 LH AND P/N R52550 RH.

1шт.

108762A1 is a cab frame made up of 108532A1 frame, 151-525 Rivet, and 1990696C2 S/N and model plate. This is part of D104066 complete cab which is no longer available through whole goods. Dealer needs to order the 108762A1 frame and all other primes seperately and build up the cab complete. This frame will fit the 580K-I, 580K-III, and 580 Super K.

1шт.

1a

108762A1

FRAME ASSY

FRAME cab, without plastic roof cap JAB0023786 and, Start Serial: after

1шт.

108762A1 is a cab frame made up of 108532A1 frame, 151-525 Rivet, and 1990696C2 S/N and model plate. This is part of D104066 complete cab which is no longer available through whole goods. Dealer needs to order the 108762A1 frame and all other primes seperately and build up the cab complete. This frame will fit the 580K-I, 580K-III, and 580 Super K.

1шт.

2

R52559

COVER

CAP roof, plastic, if used

1шт.

P/N R52559 Plastic Roof was eliminated.

1шт.

3

R54262

PLUG

2-5/64 inch, 53 mm, diameter, cap mounting holes

4шт.

4

113-2460

BOLT,Locking, 1/2" - 13 x 2-1/4", Gr 8

Locking, 1/2"-13 x 2 1/4", G8

4шт.

5

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 3/32 inch

4шт.

6

1344187C1

SPACER

special

4шт.

7

97293C1

COVER

plastic, left-hand post, if used

1шт.

7a

D138178

PANEL

COVER padded, left-hand post, optional deluxe interior

1шт.

8

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW with washer, order F64315 washer and 265-16512 screw

2шт.

8a

F45174

SCREW,#10 - 16 x 3/4"

with washer, order F64315 washer and 265-16512 screw, used with optional deluxe interior covers

2шт.

9

131-861

SPRING NUT,Tinn, U, #10-24

2шт.

10

R53851

COVER

plastic, right-hand post, upper

1шт.

10a

D138179

PANEL

COVER padded, right-hand post, upper, optional deluxe interior

1шт.

11

97292C1

COVER

plastic, right-hand post, lower

1шт.

11a

D138180

PANEL

COVER padded, right-hand post, lower, optional deluxe interior

1шт.

12

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW with washer, order F64315 washer and 265-16512 screw

4шт.

12a

F45174

SCREW,#10 - 16 x 3/4"

with washer, order F64315 washer and 265-16512 screw, used with optional deluxe interior covers

4шт.

13

131-861

SPRING NUT,Tinn, U, #10-24

4шт.

14

D138181

LINING

COVER padded, left-hand front fender, optional deluxe interior

1шт.

15

D138182

LINING

COVER padded, left-hand rear fender, optional deluxe interior

1шт.

16

D138183

LINING

COVER padded, right-hand front fender, optional deluxe interior

1шт.

17

D138184

LINING

COVER padded, right-hand rear fender, optional deluxe interior

1шт.

18

97377C1

CHANNEL

PLATE mounting, used with Ref. 19 through 22, used on cab models with rotating beacon, if used

1шт.

19

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

hex, 1/2 NC x 3-1/2 inch, if used

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , If used 1/2"

2шт.

21

195-2205

WASHER,17/32" x 2" x .238"

flat, 17/32 x 2 x 1/4 inch, if used

2шт.

22

D48528

SPACER

mounting plate, if used

4шт.

23

1977504C1

HITCH DAMPER

BUMPER rubber, door stop, models with plastic roof cap, if used

2шт.

24

119731A1

STOP

BUMPER rubber, door stop, models without plastic roof cap, if used, Replaces: R53632

2шт.

25

140-111

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

Used with Ref. 24 bumper, if used Cross Pan Hd, 1/4"-20 x 1/2"

2шт.

26

108798A1

INSULATOR

PAD, 165 x 813 x 1.6 mm, insulation, blower support, front, vertical, if used

1шт.

27

108794A1

INSULATOR

PAD, 152 x 813 x 6.4 mm, insulation, front, if used

1шт.

Cut to required length from 108794A2 pad, Ref. 30.

1шт.

28

108795A1

INSULATOR

PAD, 254 x 813 x 6.4 mm, insulation, center, models with heat and air conditioning, if used

1шт.

Cut to required length from 108794A2 pad, Ref. 30.

1шт.

28a

108796A1

PANEL

PAD, 343 x 813 x 6.4 mm, insulation, center, models with heat only, if used

1шт.

Cut to required length from 108794A2 pad, Ref. 30.

1шт.

29

108797A1

PANEL

PAD, 200 x 813 x 6.4 mm, insulation, rear, may need to trim the 200 mm dimension to 190 mm on some models, if used

1шт.

Cut to required length from 108794A2 pad, Ref. 30.

1шт.

30

108794A2

ISOLATOR

PAD, 577 x 813 x 6.4 mm, insulation, used with Ref. 26 and 29, Replaces: Ref. 27 thru 28A on some models, if used

1шт.
