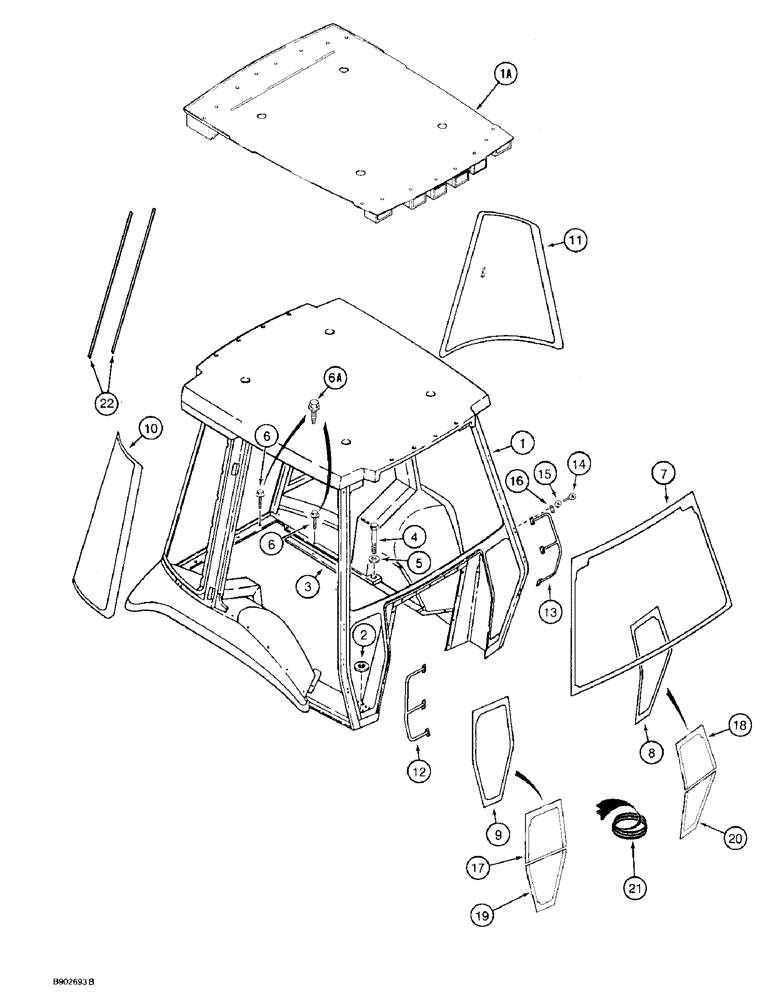

Запчасти Case 580SK (9-126) - ROPS CAB AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB ROPS, operators, with plastic roof cap, machinery item, order from Machinery Price List, parts list Figures 9-126 thru 9-158

1шт.

1a

REF

INSTRUCTION

CAB ROPS, operators, without plastic roof cap, machinery item, order from Machinery Price List, parts list Figures 9-126 thru 9-158

1шт.

2

495-81259

WASHER,21/32" x 2" x .238"

flat, 21/32 x 2 x 1/4 inch, see Figure 9-096, Ref.11 and 12, for bolt and insulator

2шт.

3

D90936

BAND

SEAL, 112 inch long, adhesive one side, cut from L35819 bulk, rear fender to operator compartment frame

2шт.

4

426-1452

BOLT,Hex, 7/8" - 9 x 3-1/4", Gr 8

hex, 7/8 NC x 3-1/4 inch, grade 8

4шт.

5

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

flat, 15/16 x 1-3/4 x 1/8 inch

4шт.

6

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW self-tapping, hex washer head, 5/16 NC x 3/4 inch, replaces D141589 screw, if used

11шт.

6a

112865A1

SCREW

pointed, self-aligning, if used

11шт.

7

97290C1

GLASS

front windshield

1шт.

8

D131289

GLASS

lower left-hand front window, one-piece, if used

1шт.

9

D131288

GLASS

lower right-hand front window, one-piece, if used

1шт.

10

D126204

GLASS

right-hand rear quarter panel window

1шт.

11

D126205

GLASS

left-hand rear quarter panel window

1шт.

12

R53960

HANDLE

grab, right-hand, if used

1шт.

13

R53961

HANDLE

grab, left-hand, if used

1шт.

14

165-180

HEX SOC SCREW,1/4" - 20 x 7/8"

BOLT hex socket, 1/4 NC x 7/8 inch, grade 8, if used

12шт.

15

195-516

WASHER,#12

flat, 1/4 x 9/16 x 1/16 inch, if used

12шт.

16

1971368C1

PLATE ASSY.

PLATE retainer, grab handle, if used

6шт.

17

107230A1

GLASS

knee, upper, right-hand, if used

1шт.

18

107233A1

GLASS

knee, upper, left-hand, if used

1шт.

19

107232A1

GLASS

knee, lower, right-hand, if used

1шт.

20

107234A1

GLASS

knee, lower, left-hand, if used

1шт.

21

108513A1

SEAL, GLASS,290mm L

290 mm long, front knee glass, if used

2шт.

22

108963A1

LINING

SEAL trim, left-hand ROPS post, if used

2шт.

L35819

RUBBER SEAL

SEAL foam rubber, bulk roll, adhesive-back, 1 x 1/8 inch x 50 ft long

1шт.
