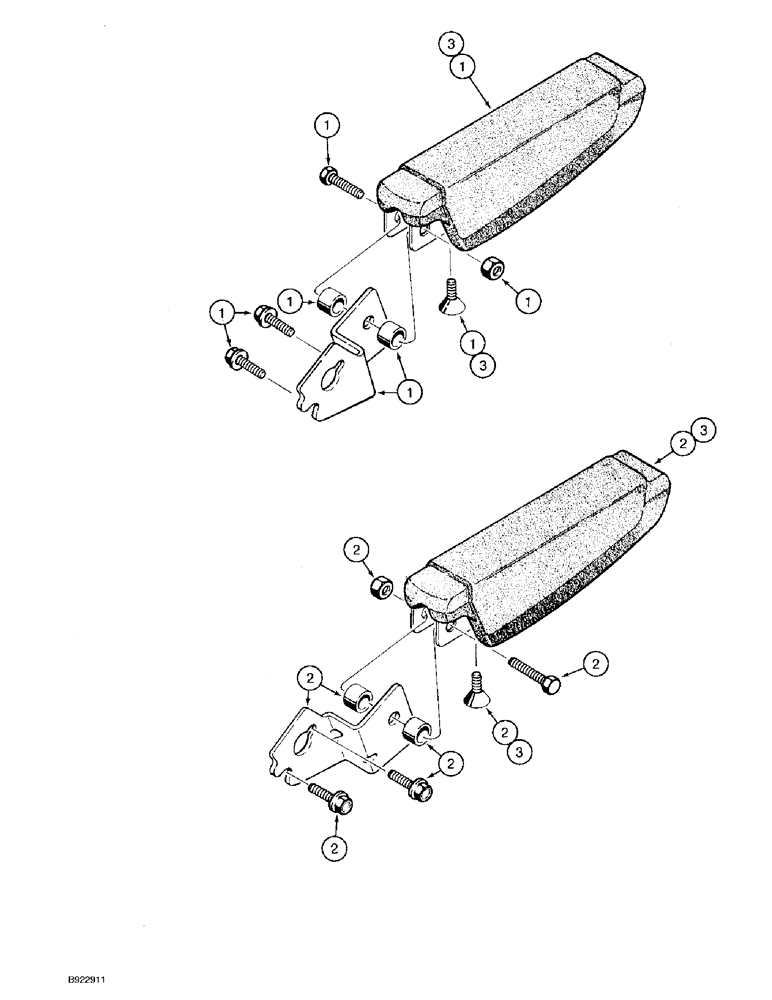

Запчасти Case 580SK (9-125L) - SUSPENSION SEAT ARMRESTS (09) - CHASSIS/ATTACHMENTS

102795A2

SEAT

ASSEMBLY suspension, cloth, includes seat, armrests, suspension, pedestal, and weight adjuster on Figures 9-125E and 9-125J, individual component parts not serviced separately, for service order respective component kits, replaces 102795A1

1шт.

108114A2

SEAT

ASSEMBLY suspension, vinyl, includes seat, armrests, suspension, pedestal, and weight adjuster on Figures 9-125E and 9-125J, individual component parts not serviced separately, for service order respective component kits, replaces 108114A1

1шт.

Includes: Ref. 1, 2 and 3

1шт.

1

116523A1

KIT

left-hand armrest and mounting hardware, also includes one shroud upper left side plastic retainer, shown on Figure 9-125E

1шт.

2

116524A1

KIT

right-hand armrest and mounting hardware, also includes one shroud upper right side plastic retainer, shown on Figure 9-125E

1шт.

3

116759A1

KIT

armrest pad, includes one mounting bolt

1шт.
