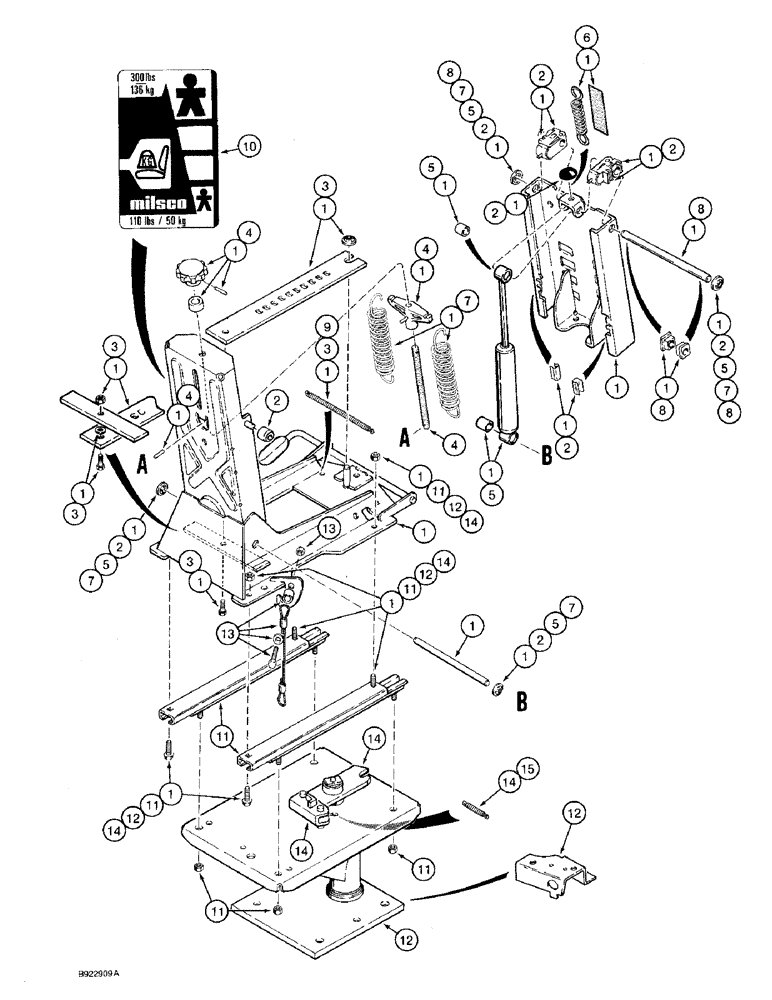

Запчасти Case 580SK (9-125J) - SUSPENSION SEAT PEDESTAL, WEIGHT ADJUSTER, AND SUSPENSION (09) - CHASSIS/ATTACHMENTS

102795A2

SEAT

ASSEMBLY suspension, cloth, includes seat, armrests, suspension, pedestal, and weight adjuster on Figures 9-125E and 9-125L, individual component parts not serviced separately, for service order respective component kits, replaces 102795A1

1шт.

108114A2

SEAT

ASSEMBLY suspension, vinyl, includes seat, armrests, suspension, pedestal, and weight adjuster on Figures 9-125E and 9-125L, individual component parts not serviced separately, for service order respective component kits, replaces 108114A1

1шт.

Includes: Ref. 1 through 15

1шт.

1

116549A1

KIT

suspension, includes parts from seat frame to adjuster slides, see additional parts on Figure 9-125E, Ref. 8

1шт.

2

116539A1

KIT

plastic components, also see additional kit parts on Figure 9-125E, Ref. 9

1шт.

3

116521A1

KIT

fore/aft, adjuster latch, also includes tie straps shown on Figure 9-125E

1шт.

4

116535A1

KIT

weight adjusting, also includes rubber height control handle grip and ten shroud plastic retainers shown on Fig. 9-125E

1шт.

Also includes ten shroud plastic retainers, two washers, and two tie straps shown on page 9-125E

1шт.

5

116533A1

KIT

suspension damper, Includes:(10) shroud plastic retainers, (2) washers, and (2) tie straps shown on Figure 9-125E and rubber height control handle grip.

1шт.

Also includes ten shroud plastic retainers, two washers, and two tie straps shown on page 9-125E

1шт.

6

116547A1

KIT

height adjusting spring, see additional kit parts on Figure 9-125E, Ref. 10

1шт.

7

116537A1

KIT

main extension springs, suspension, Includes: (10) shroud plastic retainers, (2) washers, and (2) tie straps shown on Figure 9-125E and rubber height control handle grip.

1шт.

Also includes ten shroud plastic retainers, two washers, and two tie straps shown on page 9-125E

1шт.

8

116551A1

WHEEL BEARING KIT

KIT upper suspension tower shaft, also includes (10) shroud plastic retainers and (2) washers shown on Figure 9-125E

1шт.

9

116545A1

KIT

fore/aft latch spring, also includes (2) tie straps shown on Figure 9-125E

1шт.

10

116534A1

KIT

decal, weight

1шт.

11

116522A1

KIT

fore/aft adjuster slides, also includes (2) tie straps shown on Figure 9-125E

1шт.

12

116538A2

KIT

pedestal, seat support, includes 119211A1 switch mounting bracket, Ref. 11 on Figure 9-125A, replaces 116538A1

1шт.

13

116552A1

KIT

cable, includes hardware for both ends of cable

1шт.

14

116550A1

KIT

swivel latch bar, pedestal

1шт.

15

116548A1

KIT

swivel latch spring only

1шт.
