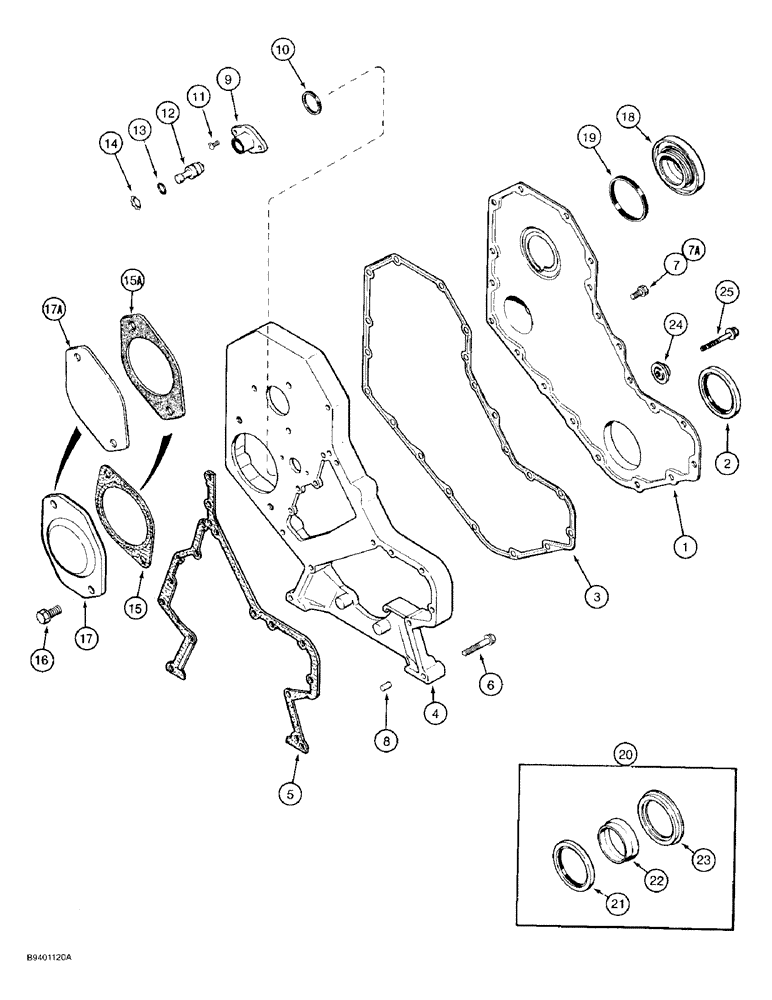

Запчасти Case 580SK (2-22) - FRONT GEAR COVER, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

1

J903794

COVER

gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front, order item 20, J904353 seal kit below

1шт.

3

J914385

GASKET,1.02mm Thk

front cover

1шт.

4

J920758

HOUSING

timing gear, replaces J917759 and J920518 housing

1шт.

5

J916131

GASKET

gear housing

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 50 mm

10шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm, External, Retains Ref. 1 to Ref. 4

11шт.

Ref. Item #7 845-8016- the proper bolt to use is J924962 or J900629 bolt with Loctite

1шт.

7a

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, , internal, retains item 4 to block Hex Flg, M8 x 16, 8.8, Full Thd

5шт.

8

J900257

PIN,10.01mm OD x 16mm L

dowel, locating

2шт.

9

J919683

HOUSING

timing pin, replaces J905933 housing

1шт.

10

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - timing pin housing

1шт.

11

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

LOCK, Spc Rd Torx Hd, M5 x 17

2шт.

12

J903924

PIN,18.87mm OD x 55mm L

timing

1шт.

13

J913994

O-RING

sealing, timing pin

1шт.

14

J904849

SNAP RING,0.875", Int, #87

RING, SNAP, , timing pin 0.875", Int, #87

1шт.

15

J913192

GASKET

cover plate, no longer available, for service order J919601 gasket, Ref. 15A

1шт.

15a

J919601

GASKET

cover plate

1шт.

16

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

17

J909918

PLATE

accessory drive cover, no longer available, for service order J914868 plate, Ref. 17A

1шт.

17a

J914868

COVER

PLATE accessory drive cover

1шт.

18

J903463

PLUG,M63 x 5

front access

1шт.

19

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

cover

1шт.

20

J904353

GASKET KIT

KIT seal, oil, crankshaft front, Includes: Ref. 21, 22 and 23.

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL seal installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL seal installation

1шт.

24

J912772

RETAINER

belt

1шт.

25

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 60 mm

1шт.
