(9-125G) - STANDARD SEAT SUPPORT AND PEDESTAL

Запчасти Case 580SK (9-125G) - STANDARD SEAT SUPPORT AND PEDESTAL (09) - CHASSIS/ATTACHMENTS

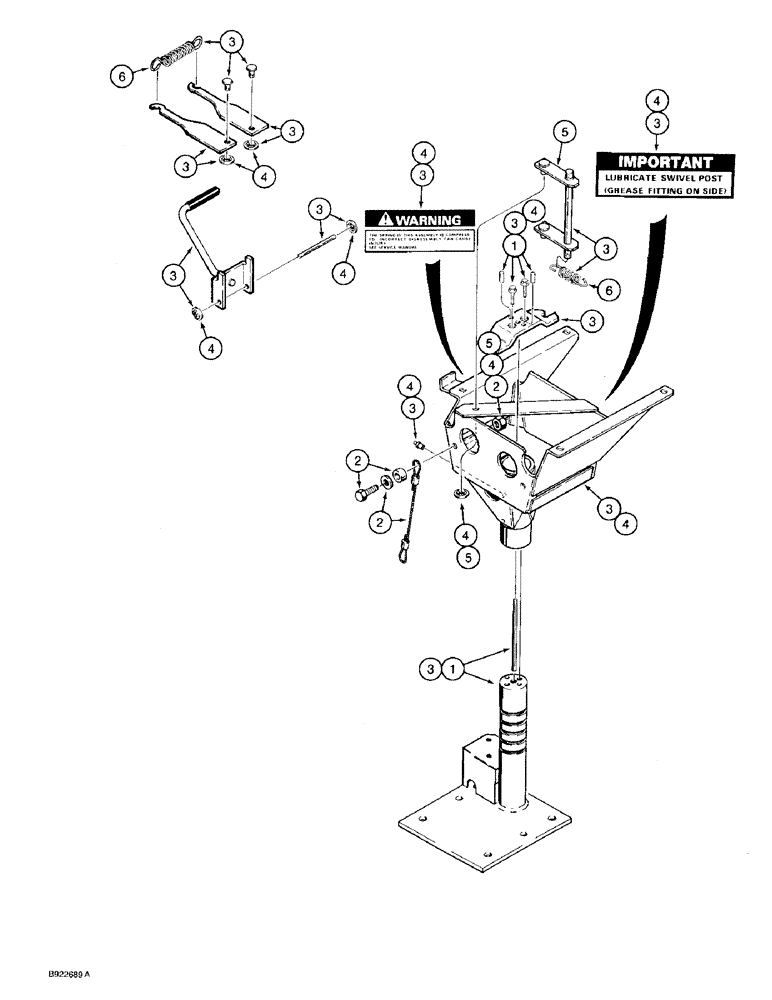

Схема запчастей Case 580SK - (9-125G) - STANDARD SEAT SUPPORT AND PEDESTAL (09) - CHASSIS/ATTACHMENTS
4
4
5
4
4
4
4
3
2
3
4
3
3
3
6
3
4
3
4
6
3
3
3
3
2
4
5
5
3
1
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

102796A2

SEAT ASSY.

SEAT ASSEMBLY standard, vinyl, includes seat on Figure 9-125C and support and pedestal below, individual component parts not serviced separately, for service order respective kits, replaces 102796A1, Includes: Ref. 1 through 6

1шт.

1

116761A2

KIT

support, base, replaces 116761A1, pedestal base without switch mounting bracket

1шт.

Also includes, 4, lock nuts for seat adjuster slide on Figure 9-125C.

1шт.

THE SUPPORT KIT DOES NOT INCLUDE THE LITTLE SHAFT PICTURED GOING THRU THE CENTER HOLE OF THE SUPPORT.

1шт.

The switch mounting bracket is in kit 116764a2, Ref. 3 and not Ref. 1.

1шт.

2

116763A1

KIT

cable, anchor, includes hardware for both ends of cable

1шт.

3

116764A2

KIT

pedestal, replaces 116764A1, pedestal base without switch mounting bracket

1шт.

Also includes, 4, lock nuts for seat adjuster slide on Figure 9-125C.

1шт.

The switch mounting bracket is in kit 116764a2, Ref. 3 and not Ref. 1.

1шт.

GREASE ZERK SHOWN INCLUDED WITH REF 3/4 IS 219-16

1шт.

4

116766A2

KIT

pedestal box, replaces 116766A1

1шт.

Also includes, 4, lock nuts for seat adjuster slide on Figure 9-125C.

1шт.

GREASE ZERK SHOWN INCLUDED WITH REF 3/4 IS 219-16

1шт.

5

116767A1

KIT

swivel latch

1шт.

Also includes, 4, lock nuts for seat adjuster slide on Figure 9-125C.

1шт.

6

119171A1

KIT

spring, also includes seat slide adjuster spring on Fiugre 9-125C

1шт.
