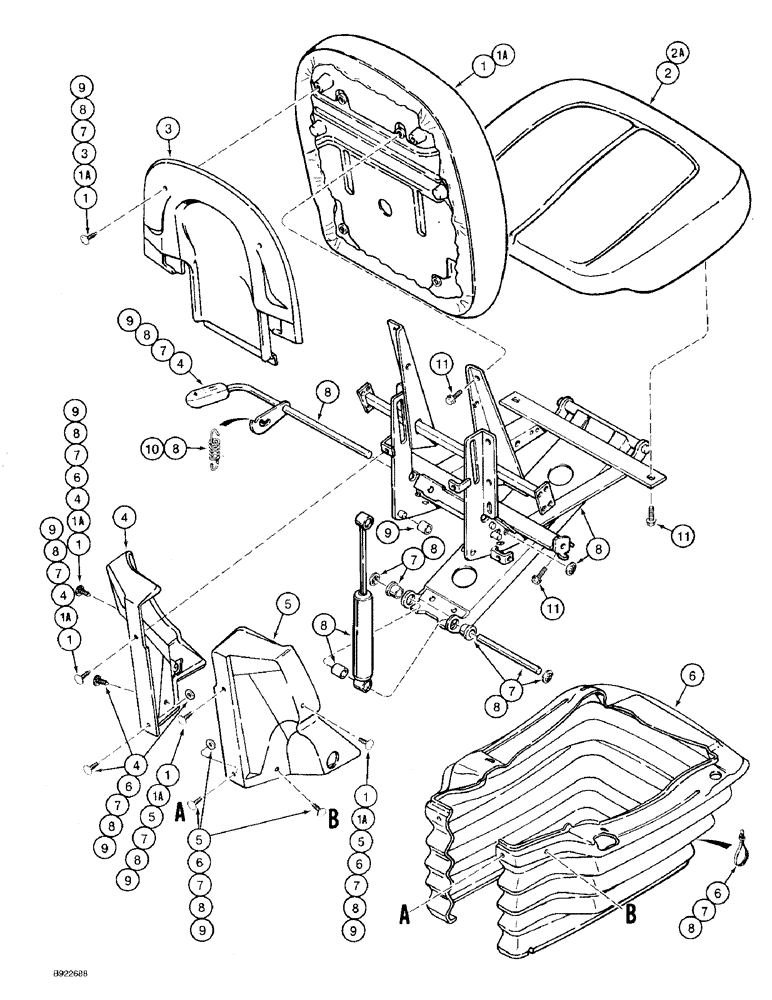

Запчасти Case 580SK (9-125E) - SUSPENSION SEAT ASSEMBLIES (09) - CHASSIS/ATTACHMENTS

102795A2

SEAT

ASSEMBLY suspension, cloth, includes seat, armrests, suspension, pedestal, and weight adjuster on Figures 9-125J and 9-125L, individual component parts not serviced separately, for service order respective component kits, replaces 102795A1

1шт.

108114A2

SEAT

ASSEMBLY suspension, vinyl, includes seat, armrests, suspension, pedestal, and weight adjuster on Figures 9-125J and 9-125L, individual component parts not serviced separately, for service order respective component kits, replaces 108114A1

1шт.

Includes: Ref. 1 through 10

1шт.

1

116528A1

KIT

backrest cushion, cloth, 102795A1 or 102795A2 seat

1шт.

1a

116531A1

KIT

backrest cushion, vinyl, 108114A1 or 108114A2 seat

1шт.

2

116540A1

KIT

seat cushion, cloth, 102795A1 or 102795A2 seat

1шт.

2a

116541A1

KIT

seat cushion, vinyl, 108114A1 or 108114A2 seat

1шт.

3

116542A1

KIT

backrest shroud

1шт.

4

116543A1

KIT

left-hand shroud

1шт.

5

116544A1

KIT

right-hand shroud

1шт.

6

116532A1

KIT

boot, rubber

1шт.

7

116536A1

KIT

swing arm pivot shaft

1шт.

8

116549A1

KIT

suspension, includes parts from seat frame to adjuster slides, see additional kit parts on Figure 9-125J, Ref. 1

1шт.

9

116539A1

KIT

plastic components, also see additional kit parts on Figure 9-125J, Ref. 2

1шт.

10

116547A1

KIT

height adjusting spring, also includes ten shroud plastic retainers, see additional kit parts on Figure 9-125J, Ref. 6

1шт.

11

NSS

NOT SOLD SEPARAT

BOLT, 5/16 inch thread, length as needed, purchase locally, seat cushion and backrest

8шт.
