(9-120) - SUSPENSION SEAT SUPPORT

Запчасти Case 580SK (9-120) - SUSPENSION SEAT SUPPORT (09) - CHASSIS/ATTACHMENTS

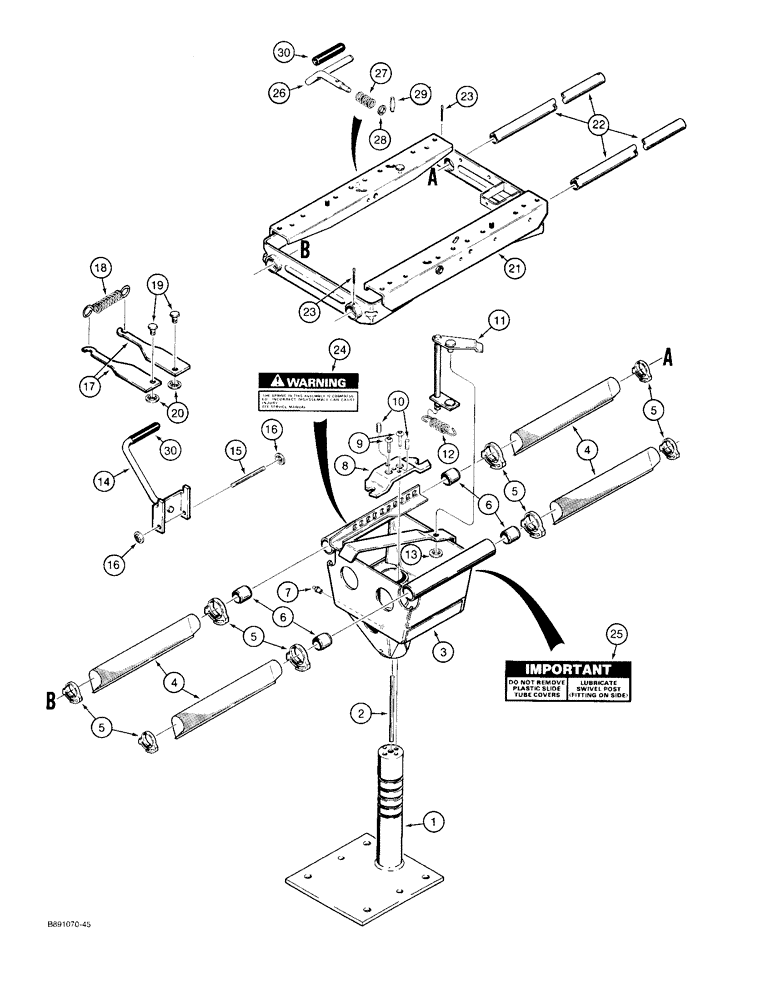

Схема запчастей Case 580SK - (9-120) - SUSPENSION SEAT SUPPORT (09) - CHASSIS/ATTACHMENTS
23
25
4
22
23
27
29
5
5
1
17
13
10
4
20
30
11
19
2
28
3
16
12
5
5
21
9
26
6
14
18
8
6
7
24
16
15
30
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D147655

PEDESTAL

SUPPORT ASSEMBLY suspension seat, see Figure 9-108 for seat options, Includes: Ref. 1 though 29

1шт.

1

N14299

BASE

seat support

1шт.

2

N14300

SHAFT

seat support

1шт.

3

N14301

SUPPORT ASSY.

RISER seat support

1шт.

4

D147877

BELLOWS

slide tube

4шт.

5

N14105

CLAMP

bellows

8шт.

6

N6950

TUBE,1.015" ID x 1.1905" OD x 1"

BEARING slide tube

4шт.

7

219-16

LUBE NIPPLE,5/16" NPTF

FITTING grease, straight, 5/16 drive type x 19/32 inch

1шт.

8

NSS

NOT SOLD SEPARAT

LATCH seat swivel

1шт.

Part of latch kit P/N D147775.

1шт.

9

461-7318

HEX SOC SCREW,Btn Hd, 5/16"-18 x 1/2"

BOLT hex socket button head, 5/16 NC x 1/2 inch

2шт.

Part of latch kit P/N D147775.

1шт.

10

435-11012

GROOVED PIN,5/16" x 3/4", Type A

Pin, Grooved, 5/16" x 3/4", Type A

2шт.

Part of latch kit P/N D147775.

1шт.

11

NSS

NOT SOLD SEPARAT

LEVER seat swivel

1шт.

Part of latch kit P/N D147775.

1шт.

12

N8341

SPRING

seat swivel

1шт.

Part of latch kit P/N D147775.

1шт.

13

131-435

PUSH-ON NUT,Push, 3/8"

NUT push-on type, 3/8 inch

1шт.

Part of latch kit P/N D147775.

1шт.

14

N14294

HANDLE

seat height adjustment

1шт.

15

N6962

SHAFT

pivot

1шт.

16

131-434

LOCK NUT,Push, 5/16"

NUT push-on type, 5/16 inch

2шт.

17

N6963

LATCH

seat height adjustment

2шт.

18

N6970

CATCH

SPRING latch, seat height adjustment

1шт.

19

N6964

PIN,9.53mm OD x 19.05mm L

latch

2шт.

20

131-435

PUSH-ON NUT,Push, 3/8"

NUT push-on type, 3/8 inch

2шт.

21

N14302

SLIDE

seat

1шт.

22

N14305

TUBE

slide

2шт.

23

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

24

321-6774

WARNING DECAL

DECAL, WARNING, The spring in this assembly is compressed, See Fig. 9-170, Ref. 30, for decal

1шт.

25

N14295

DECAL

Important, do not remove plastic slide tube covers, lubricate swivel post, see Figure 9-170, Ref. 29, for decal

1шт.

26

D144387

HANDLE

slide release, side mounted

1шт.

27

D144430

SPRING

compression

1шт.

28

D144431

WASHER

flat, special

1шт.

29

D144432

PIN

slide lock

1шт.

30

N14311

COVER

GRIP seat levers, included with seat assembly

2шт.

D147775

LATCH

KIT latch, Includes: Ref. 8 - 13

1шт.
