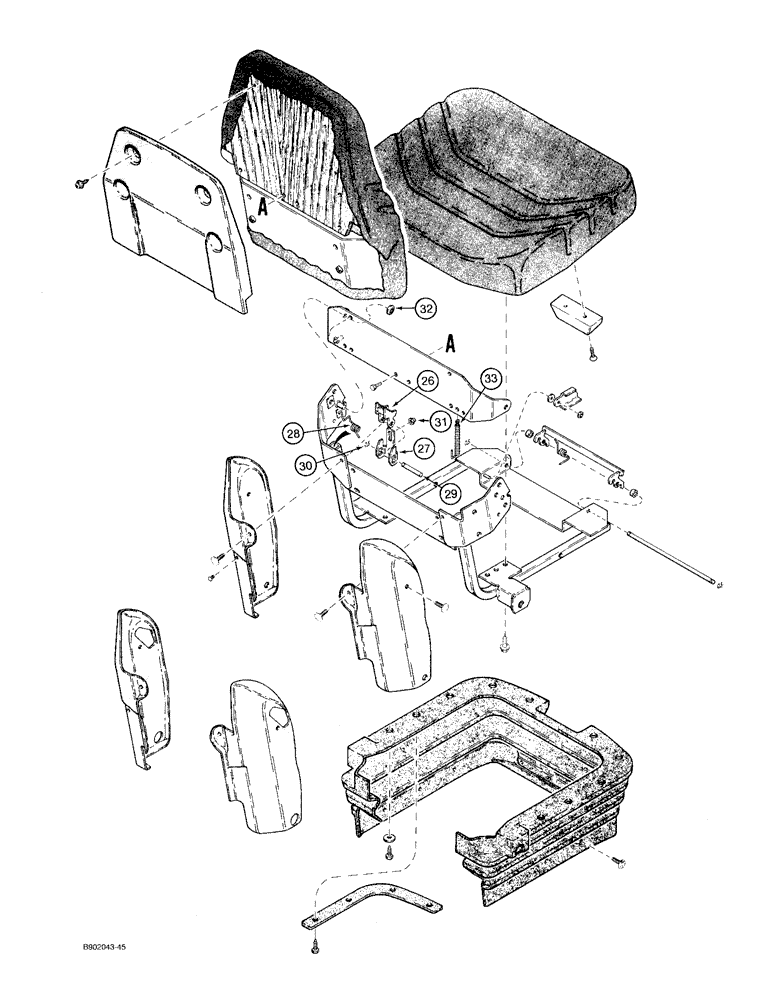

Запчасти Case 580SK (9-116) - SUSPENSION SEAT ASSEMBLIES (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

SEAT ASSEMBLY suspension, continued from previous page, Includes: Ref. 26 through 33 and P/N N14852

1шт.

N14852

FUNNEL

FRAME ASSEMBLY seat, continued from previous page, Includes: Ref. 26 through 33

1шт.

26

N14326

LATCH

BRACKET latch, upper, backrest adjustment

1шт.

27

N14327

BACK

BRACKET latch, lower, backrest adjustment

1шт.

28

N14335

SPRING

torsion, backrest

1шт.

29

N14333

SHAFT

PIN backrest latch

1шт.

30

D95092

RING

C-type, retaining, replaces N14331

1шт.

31

N14336

NUT

push-on type, special

1шт.

32

131-435

PUSH-ON NUT,Push, 3/8"

NUT push-on type, 3/8 inch

2шт.

33

N14337

SPRING

extension

1шт.
