Запчасти Case 580SK (9-114) - SUSPENSION SEAT ASSEMBLIES (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

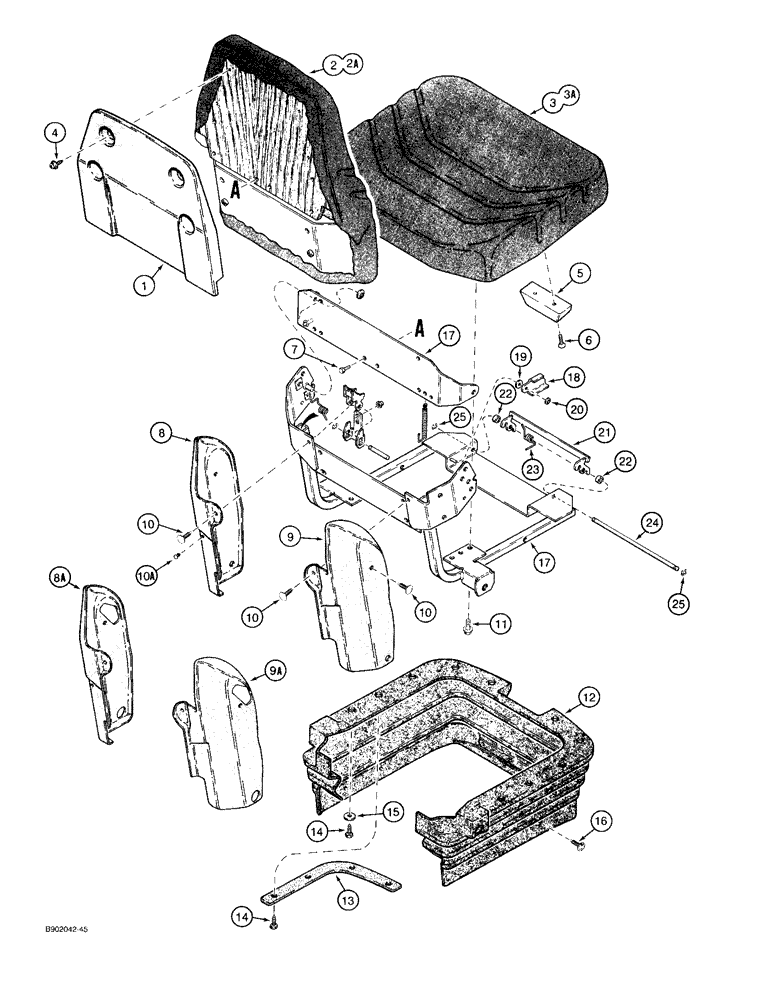

SEAT ASSEMBLY suspension, see Figure 9-108 for suspension seat options, for seat support and adjuster, see Figures 9-120 and 9-122, no longer available, order cloth or vinyl seat assembly on Figure 9-125E, Includes: Ref. 1 through 25 and P/N N14852

1шт.

1

D144559

SHROUD

COVER backrest, upper, shield

1шт.

2

N14321

CUSHION

BACKREST seat, cloth

1шт.

2a

N14341

CUSHION

BACKREST seat, vinyl

1шт.

3

N14318

CUSHION

seat, cloth

1шт.

3a

N14340

CUSHION

seat, vinyl

1шт.

4

280-13512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

SCREW Phillips, hex washer head, special, replaced NSS

4шт.

5

N14322

HANDLE

seat cushion adjustment

1шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

2шт.

7

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

5шт.

8

D144721

SHROUD

COVER frame, left-hand shroud, used on seats without armrests

1шт.

8a

D144920

SHROUD

COVER frame, left-hand shroud, used on seats with armrests

1шт.

9

D144720

SHROUD

COVER frame, right-hand shroud, used on seats without armrests

1шт.

9a

D144919

SHROUD

COVER frame, right-hand shroud, used on seats with armrests

1шт.

10

N14323

CLIP

RETAINER plastic

4шт.

10a

N8487

RIVET

plastic, yellow

1шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

2шт.

12

N14320

BOOT

seat, protective covering

1шт.

13

N14319

SUPPORT

BRACKET boot support

2шт.

14

N13703

CLIP,ELECTRICAL

SCREW hex head, special

10шт.

15

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

16

D144429

CLIP

RETAINER plastic, black

9шт.

N14852

FUNNEL

FRAME ASSEMBLY seat, Includes: Ref. 17 through 25

1шт.

17

NSS

NOT SOLD SEPARAT

FRAME seat

1шт.

18

N14325

TOGGLE

BRACKET toggle

1шт.

19

495-21031

WASHER,1/4"

flat, 5/16 x 47/64 x 1/16 inch

1шт.

20

131-433

PUSH-ON NUT,Push, 1/4"

NUT push-on type, 1/4 inch

1шт.

21

N14324

LATCH

BRACKET latch, cushion adjustment

1шт.

22

N14334

SPACER

nylon

2шт.

23

N14335

SPRING

torsion

1шт.

24

N14332

SHAFT

front seat bracket latch

1шт.

25

D95092

RING

C-type, retaining, replaces N14331

2шт.
