(9-112) - STANDARD SEAT ASSEMBLY, D123196 STANDARD SEAT ASSEMBLY

Запчасти Case 580SK (9-112) - STANDARD SEAT ASSEMBLY, D123196 STANDARD SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

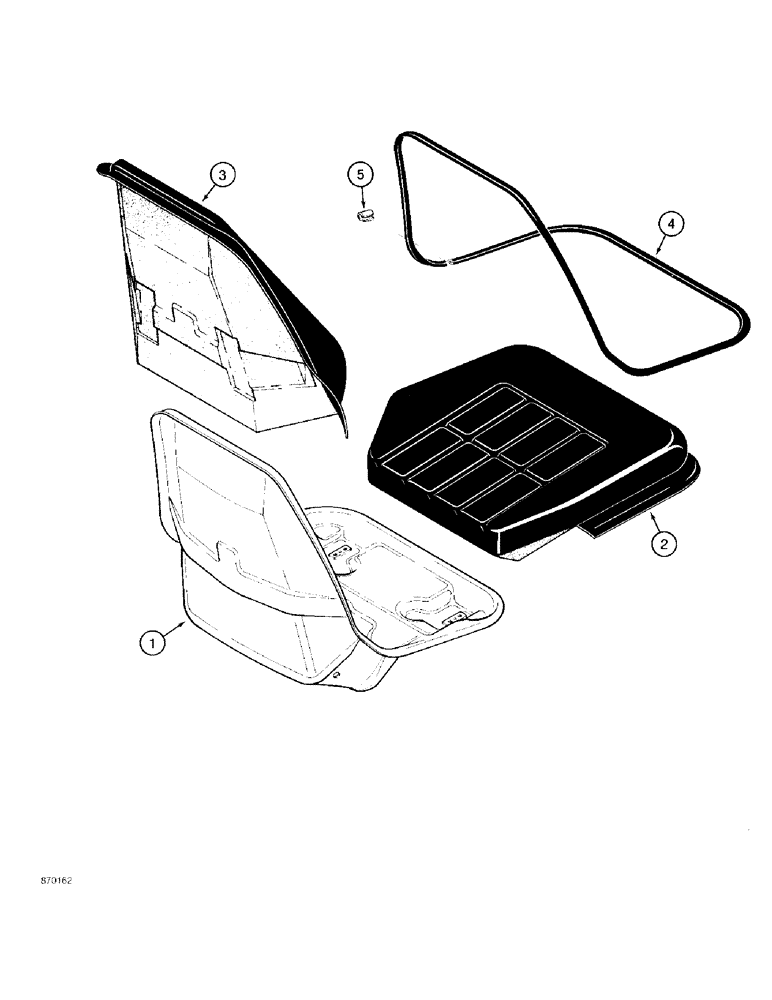

Схема запчастей Case 580SK - (9-112) - STANDARD SEAT ASSEMBLY, D123196 STANDARD SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS
5
3
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D123196

SEAT ASSY.

SEAT ASSEMBLY standard, for seat support see page 9-119, if used, Includes: Ref. 1 through 5

1шт.

P/N D123196 does not have kick plate, used as trip mechanism for swivel, welded to bottom. If seat has kick plate welded to bottom you have seat 102796A2, Fig. 9-125C.

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL seat

1шт.

2

N8462

CUSHION

seat, includes N7802 clip kit, see below

1шт.

3

N8461

CUSHION

backrest, includes N7802 clip kit, see below

1шт.

4

N14614

GASKET

RETAINER strip, cushion to shell

1шт.

5

NSS

NOT SOLD SEPARAT

CLIP retainer, order N7802 clip kit, see below

1шт.

Part of clip kit P/N N7802.

1шт.

345-44

ADHESIVE

pad retaining, in a can, 23 fl. ounces, 680 ml, not shown, purchase locally

1шт.

N7802

CLIP

KIT clip, Includes: Ref. 5 clip above plus 6 additional narrow clips

1шт.
