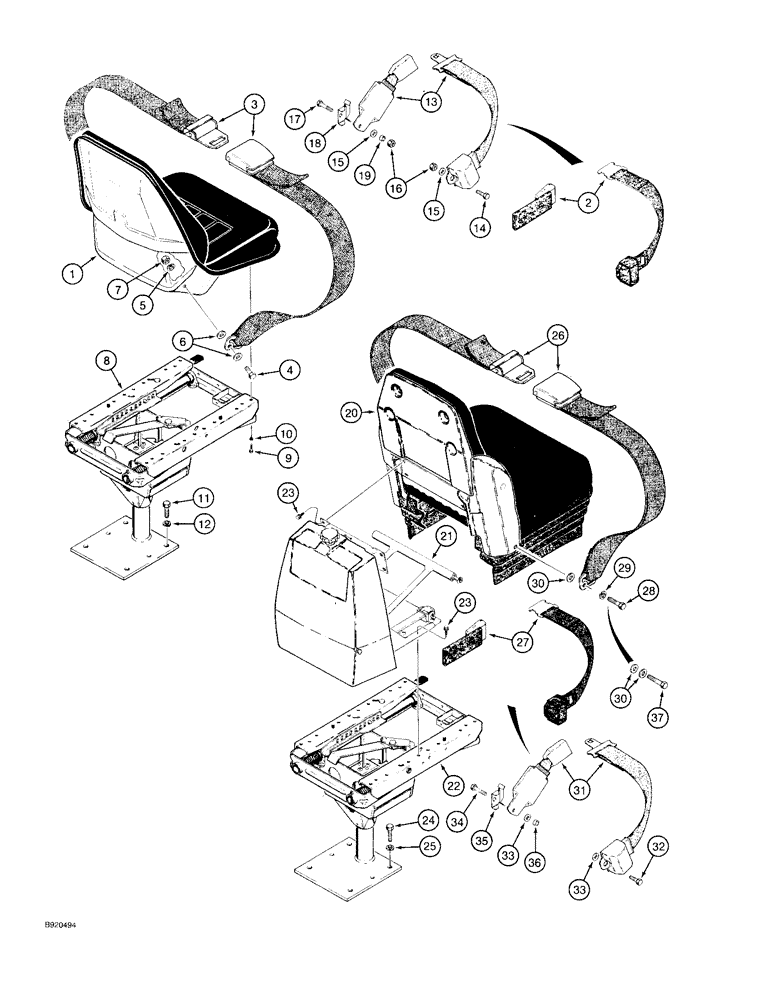

Запчасти Case 580SK (9-108) - SEATS AND MOUNTING PARTS, STANDARD SEAT AND MOUNTING PARTS, (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
D123196
SEAT ASSY.
SEAT ASSEMBLY standard, parts list Figure 9-112, if used, standard seat and mounting parts
1шт.
2
D135623
SAFETY BELT
BELT seat, 2 inch, 51 mm, wide, with retractor, no longer available, order D150377 belt, Ref. 13, standard seat and mounting parts
1шт.
When mounting the seat belt on a model with a three point hitch, the retractor end of the belt is to be mounted on the left side of the seat. This will provide clearance for the hitch controls.
1шт.
3
D150010
SAFETY BELT
BELT seat, 3 inch, 76 mm, wide, if used, standard seat and mounting parts
1шт.
When mounting the seat belt on a model with a three point hitch, the retractor end of the belt is to be mounted on the left side of the seat. This will provide clearance for the hitch controls.
1шт.
4
414-716
BOLT,Hex, 7/16" - 20 x 1", Gr 5
D135623 or D150010 belt, If used, Standard seat and mounting parts Hex, 7/16"-20 x 1", G5, Full Thd
2шт.
5
492-11044
LOCK WASHER,7/16"
WASHER, LOCK, , D135623 or D150010 belt, if used, standard seat and mounting parts 7/16"
2шт.
6
495-11047
WASHER,7/16", SAE
(15/32 x 59/64 x 1/16"), D135623 or D150010 belt, if used, standard seat and mounting parts 7/16", SAE
4шт.
7
425-117
NUT,7/16"-20, G5
hex, 7/16 inch NF, D135623 or D150010 belt, if used, standard seat and mounting parts
2шт.
8
D147644
PEDESTAL
SUPPORT ASSEMBLY standard seat, parts list Figure 9-118, standard seat and mounting parts
1шт.
9
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
hex, 5/16 NC x 3/4 inch, standard seat and mounting parts
4шт.
11
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
Standard seat and mounting parts Hex, 1/2"-13 x 1 1/2", G5, Full Thd
4шт.
12
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, , Standard seat and mounting parts 1/2"
4шт.
13
D150377
SAFETY BELT ,2.00" W
If used, Standard seat and Mounting parts 2.00" W
1шт.
14
414-720
BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5
hex, 7/16 NF x 1-1/4 inch, D150377 belt, right-hand side, if used, standard seat and mounting parts
1шт.
15
496-81010
WASHER
flat, 15/32 x 1 x 7/64 inch, hardened, D150377 belt, if used, standard seat and mounting parts
2шт.
16
131-1247
LOCK NUT,7/16"-20, GC
NUT hex, self-locking, 7/16 inch NF, D150377 belt, if used, standard seat and mounting parts
2шт.
17
414-728
BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5
hex, 7/16 NF x 1-3/4 inch, D150377 belt, left-hand side, if used, standard seat and mounting parts
1шт.
18
D150392
BRACKET
D150377 belt, left-hand side, if used, standard seat and mounting parts
1шт.
19
D150391
SPACER
D150377 belt, left-hand side, if used, standard seat and mounting parts
1шт.
101796A1
SEAT ASSY.
SEAT ASSEMBLY suspension, cloth, with armrests shown on Figure 9-124, cab models only, see Figures 9-114 and 9-116 for seat, also includes Ref. 30A-40 on Figure 9-122, replaces D147689 seat, no longer available, order 102795A2 seat on Figure 9-125A
1шт.
suspension seats and mounting parts
1шт.
101795A1
SEAT
ASSEMBLY suspension, vinyl, with armrests shown on Figure 9-124, see Figures 9-114 and 9-116 for seat assembly, also includes Ref. 30A-40 on Figure 9-122, replaces D147690 seat, no longer available, order 108114A2 seat on Figure 9-125A
1шт.
suspension seats and mounting parts
1шт.
D147692
SEAT
ASSEMBLY suspension, vinyl, without armrests, see Figures 9-114 and 9-116 for seat, also includes Ref. 30A-40 on Figure 9-122, no longer available, order 108114A2 seat on Figure 9-125A, Includes: Ref. 20 through 23
1шт.
suspension seats and mounting parts
1шт.
20
NSS
NOT SOLD SEPARAT
SEAT ASSEMBLY suspension seat, without armrests, parts list Figures 9-114 and 9-116
1шт.
suspension seats and mounting parts
1шт.
21
N14297
SUSPENSION
ADJUSTER ASSEMBLY suspension seat, parts list Figure 9-122
1шт.
suspension seats and mounting parts
1шт.
22
D147655
PEDESTAL
SUPPORT ASSEMBLY suspension seat, parts list Figure 9-120
1шт.
suspension seats and mounting parts
1шт.
23
121-133
SERRATED BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
8шт.
suspension seats and mounting parts
1шт.
24
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
4шт.
suspension seats and mounting parts
1шт.
25
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
4шт.
suspension seats and mounting parts
1шт.
26
D150010
SAFETY BELT
BELT seat, 3 inch, 76 mm, wide, if used
1шт.
suspension seats and mounting parts
1шт.
27
D135623
SAFETY BELT
BELT seat, 2 inch, 51 mm, wide, no longer available, order D150377 belt, Ref. 31
1шт.
suspension seats and mounting parts
1шт.
28
414-724
BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5
- hex, 7/16 NF x 1-1/2 inch, D135623 or D150010 belt, if used
2шт.
suspension seats and mounting parts
1шт.
29
492-11044
LOCK WASHER,7/16"
WASHER, LOCK, , If used 7/16"
2шт.
suspension seats and mounting parts
1шт.
30
495-11047
WASHER,7/16", SAE
(15/32 x 59/64 x 1/16"), If used 7/16", SAE
2-4шт.
suspension seats and mounting parts
1шт.
31
D150377
SAFETY BELT ,2.00" W
If used 2.00" W
1шт.
suspension seats and mounting parts
1шт.
32
109-9
PREV TORQUE BOLT,Locking, 7/16"-20 x 1 1/4", G5
BOLT hex, self-locking, 7/16 NF x 1-1/4 inch, D150377 belt, right-hand side, if used
1шт.
suspension seats and mounting parts
1шт.
33
496-81010
WASHER
flat, 15/32 x 1 x 7/64 inch, hardened, D150377 belt, if used
2шт.
suspension seats and mounting parts
1шт.
34
109-10
PREV TORQUE BOLT,Locking, 7/16"-20 x 1 3/4", G5
BOLT hex, self-locking, 7/16 NF x 1-3/4 inch, D150377 belt, left-hand side, if used
1шт.
suspension seats and mounting parts
1шт.
35
D150392
BRACKET
D150377 belt, left-hand side, if used
1шт.
suspension seats and mounting parts
1шт.
36
D150391
SPACER
D150377 belt, left-hand side, if used
1шт.
suspension seats and mounting parts
1шт.
37
109-10
PREV TORQUE BOLT,Locking, 7/16"-20 x 1 3/4", G5
BOLT hex, self-locking, 7/16 NF x 1-3/4 inch, used with four flat washers with D150010 3 inch belt, if used
2шт.
suspension seats and mounting parts
1шт.
