(9-106) - REAR CLOSURE PANELS, CAB MODELS - WITH THREE-POINT HITCH

Запчасти Case 580SK (9-106) - REAR CLOSURE PANELS, CAB MODELS - WITH THREE-POINT HITCH (09) - CHASSIS/ATTACHMENTS

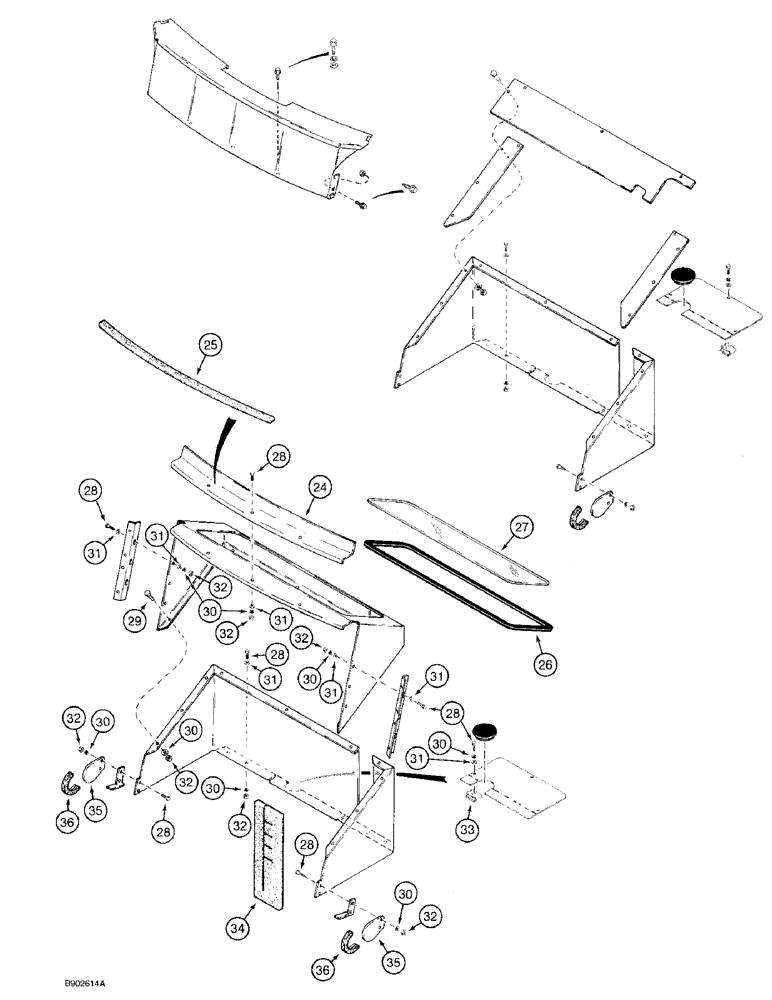

Схема запчастей Case 580SK - (9-106) - REAR CLOSURE PANELS, CAB MODELS - WITH THREE-POINT HITCH (09) - CHASSIS/ATTACHMENTS
32
28
28
32
30
28
32
32
36
32
28
28
30
32
34
31
31
36
30
35
30
29
33
31
31
32
27
31
35
28
24
30
30
30
31
31
26
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

24

D136651

BRACKET

threshold, window, rear

1шт.

25

D126201

RUBBER SEAL,20mm W x 912mm L x 10mm Thk

SEAL, 20 mm x 10 mm x 912 mm, adhesive back

1шт.

26

D90207

SEAL, 79 inch, 2006 mm, long, cut from A42677 bulk seal, molding, window, see below

1шт.

27

D90206

GLASS

closure panel

1шт.

28

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

20шт.

29

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

10шт.

30

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

30шт.

31

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

22шт.

32

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

27шт.

33

131-97

SPRING NUT,Tinn, U, 5/16"-18

U-type, 5/16 inch NC

3шт.

34

D141585

SEAL

panel

1шт.

35

D141390

GUARD

PLATE corner guard

2шт.

36

D33500

LINING

TRIM edge, 7 inch, 178 mm, long, cut from bulk trim, see Parts Substitution List for bulk trim options

2шт.

A42677

MOLDING

SEAL, 600 inch, 1524 mm, long, bulk roll

1шт.
