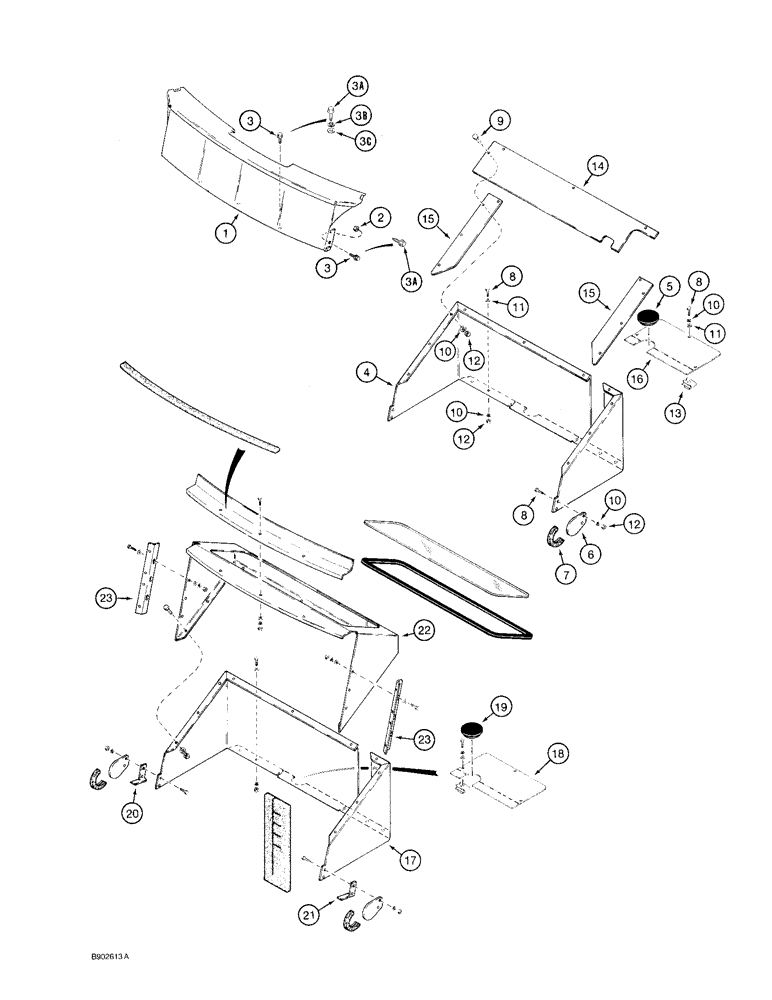

Запчасти Case 580SK (9-104) - REAR CLOSURE PANELS, CANOPY MODELS - WITH BACKHOE OR, REAR (09) - CHASSIS/ATTACHMENTS

1

D135244

PANEL

rear closure, canopy models with backhoe or canopy models without backhoe but with rear counterweight, see Figure 9-168 for decal, canopy models - with backhoe or rear counterweight

1шт.

2

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Canopy models - with backhoe or rear counterweight

2шт.

3

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW self-tapping, hex washer head, 5/16 NC x 3/4 inch, replaces D141589 screw, if used, canopy models - with backhoe or rear counterweight

7шт.

3a

112865A1

SCREW

pointed, self-aligning, if used, canopy models - with backhoe or rear counterweight

7шт.

3b

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , Canopy models - with backhoe or rear counterweight 5/16"

2шт.

3c

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64"), Canopy models - with backhoe or rear counterweight 5/16"

4шт.

4

D147480

PANEL

rear closure, canopy models without backhoe with three-point hitch, canopy models - with three-point hitch

1шт.

5

D143595

PLUG

3 inch diameter, if used, canopy models - with three-point hitch

1шт.

6

D141390

GUARD

PLATE corner guard, canopy models - with three-point hitch

2шт.

7

D33500

LINING

TRIM edge, 7 inch long, cut from bulk trim, see Parts Substitution List for bulk trim options, canopy models - with three-point hitch

2шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch, canopy models - with three-point hitch

11шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch, canopy models - with three-point hitch

10шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , Canopy models - with three-point hitch 5/16"

21шт.

11

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), Canopy models - with three-point hitch

7шт.

12

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Canopy models - with three-point hitch

18шт.

13

131-97

SPRING NUT,Tinn, U, 5/16"-18

U-type, 5/16 inch NC, used on some models, canopy models - with three-point hitch

3шт.

14

D141574

COVER

panel, at right-hand corner, canopy models - with three-point hitch

1шт.

15

D141573

COVER

PLATE panel, canopy models - with three-point hitch

2шт.

16

D147442

COVER

lower, canopy models - with three-point hitch

1шт.

17

D147480

PANEL

rear closure, cab models without backhoe with three-point hitch

1шт.

18

D147442

COVER

lower, cab models - with three-point hitch

1шт.

19

D143595

PLUG

3 inch diameter, if used, cab models - with three-point hitch

1шт.

20

D136688

BRACKET

window track stop, left-hand, cab models - with three-point hitch

1шт.

21

D136689

BRACKET

window track stop, right-hand, cab models - with three-point hitch

1шт.

22

D141945

PANEL

rear closure, upper, cab models - with three-point hitch

1шт.

23

D136690

BRACKET

angle, window, closure support, cab models - with three-point hitch

2шт.
