(9-102) - REAR FENDERS, ROPS CANOPY MODELS

Запчасти Case 580SK (9-102) - REAR FENDERS, ROPS CANOPY MODELS (09) - CHASSIS/ATTACHMENTS

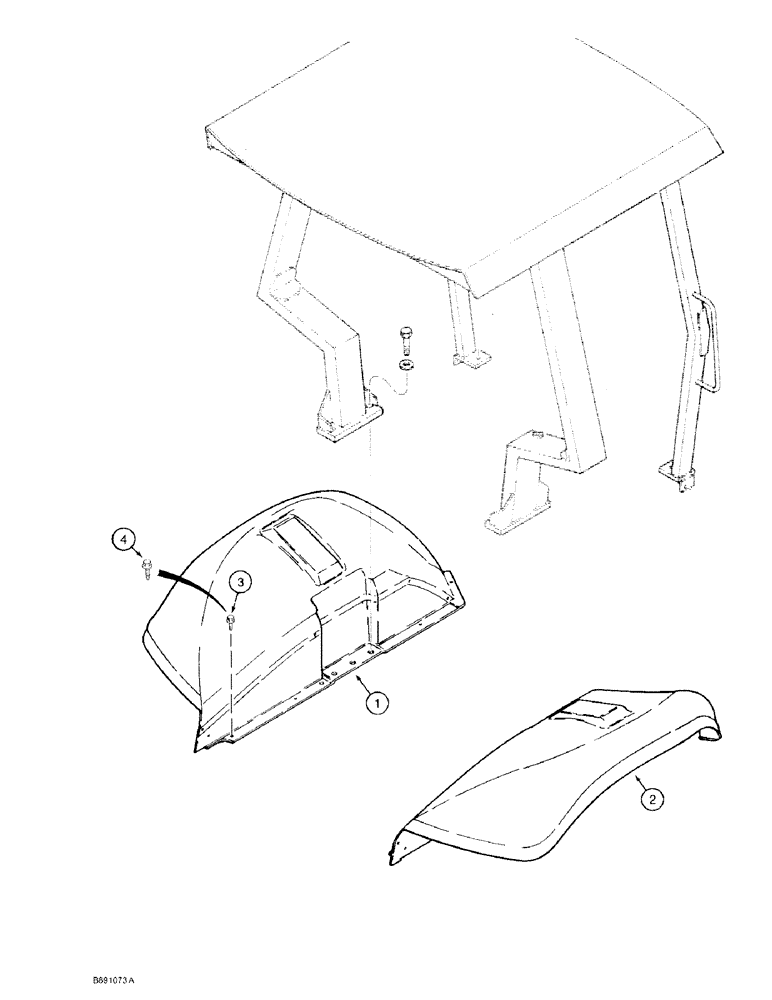

Схема запчастей Case 580SK - (9-102) - REAR FENDERS, ROPS CANOPY MODELS (09) - CHASSIS/ATTACHMENTS
4
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R52549

FENDER

left-hand

1шт.

2

R52550

FENDER

right-hand

1шт.

3

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW self-tapping, hex washer head, 5/16 NC x 3/4 inch, replaces D141589 bolt, if used

8шт.

4

112865A1

SCREW

pointed, self-aligning, if used

8шт.

Выбрано товаров: 4
