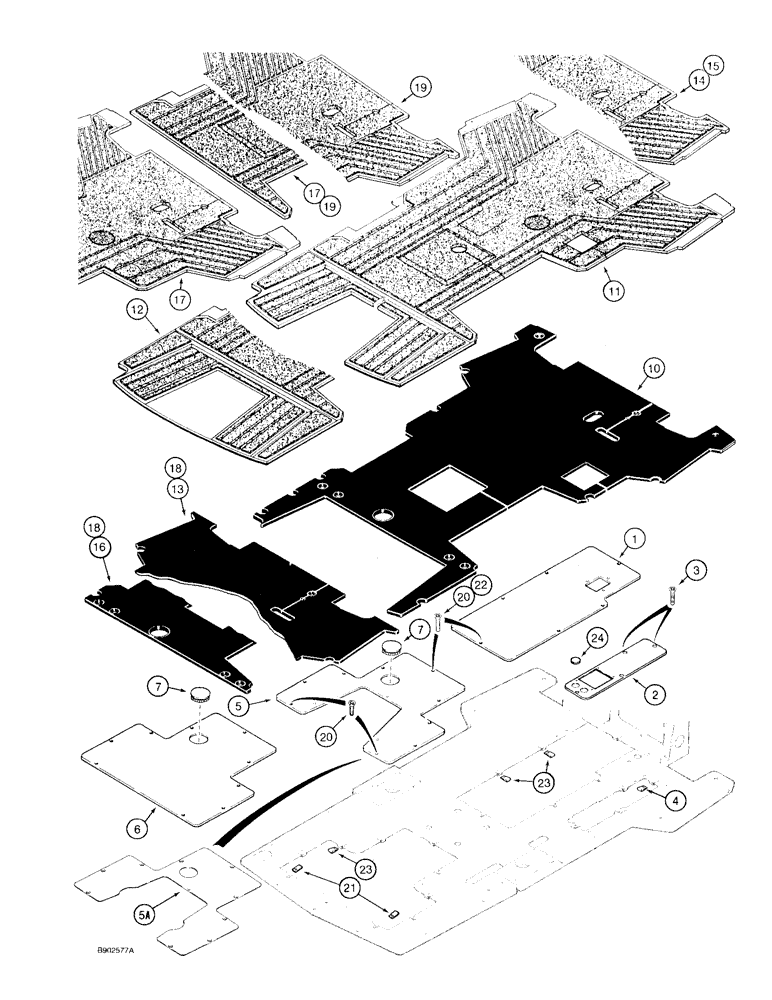

Запчасти Case 580SK (9-100) - FLOOR PLATES AND FLOORMATS (09) - CHASSIS/ATTACHMENTS

1

D146215

COVER

PLATE floor, front cover, with or without backhoe

1шт.

2

D149324

PLATE

floor, cover, loader control lever mounting

1шт.

3

461-43116

HEX SOC SCREW,Flat Hd, 5/16"-18 x 1"

BOLT hex socket flat, 5/16 NC x 1 inch

10шт.

4

131-97

SPRING NUT,Tinn, U, 5/16"-18

U-type, 5/16 inch NC

10шт.

5

D133813

PLATE

floor, rear cover, with plug hole, cab or canopy models with backhoe, if used

1шт.

5a

104539A1

PLATE

floor, rear cover, with plug hole, if used

1шт.

6

D135978

COVER

PLATE floor, rear cover, cab or canopy models without backhoe, with rear counterweight

1шт.

7

D143595

PLUG

button, 3 inch, steel, rear floor plate

1шт.

10

D147784

PAD

floormat, service replacement, if used

1шт.

11

D147766

FLOORMAT, used with D147784 pad, cab models with backhoe, for service order 109747A1 floormat, shown on Fig. 9-101A

1шт.

12

D147767

FLOOR MAT

FLOORMAT, used with D147784 pad, cab models without backhoe, also service replacement for Ref. 11, 14, 15, 17, and 19, no longer available, order 109747A1 floormat, Ref. 1, shown on Fig. 9-101A

1шт.

Mat with cut-out area for seat switch wire is 117539A1.

1шт.

13

D147785

PAD floormat, used on canopy models with or without backhoe, for service order D147784 pad, if used

1шт.

14

D147780

FLOORMAT, used with D147785 pad, canopy models with backhoe, for service order 109747A1 floormat, shown on Figure 9-101A

1шт.

15

D147781

FLOORMAT, used with D147785 pad, canopy models without backhoe, for service order 109747A1 floormat, shown on Figure 9-101A

1шт.

16

D147786

PAD, used with D147782 floormat, cab models with three-point hitch, for service order D147784 pad, if used

1шт.

17

D147782

FLOORMAT, used with D147786 pad, cab models with three-point hitch, for service order 109747A1 floormat, shown on Figure 9-101A

1шт.

18

D147787

PAD, used with D147783 floormat, canopy models with three-point hitch, for service order D147784 pad, if used

1шт.

19

D147783

FLOORMAT, used with D147787 pad, canopy models with three-point hitch, for service order 109747A1 floormat, shown on Figure 9-101A

1шт.

20

461-43112

HEX SOC SCREW,Flat Hd, 5/16"-18 x 3/4"

BOLT hex socket flat, 5/16 NC x 3/4 inch

2шт.

21

131-637

SPRING NUT,Ret, J, 5/16"-18

- J-type, 5/16" NC

2шт.

22

461-43116

HEX SOC SCREW,Flat Hd, 5/16"-18 x 1"

BOLT hex socket flat head, 5/16 NC x 1 inch

7шт.

23

131-97

SPRING NUT,Tinn, U, 5/16"-18

U-type, 5/16 inch NC, replaces J-type nut

7шт.

24

D150737

PLUG

button, 1-1/4 inch, replaces 205-56

2шт.
