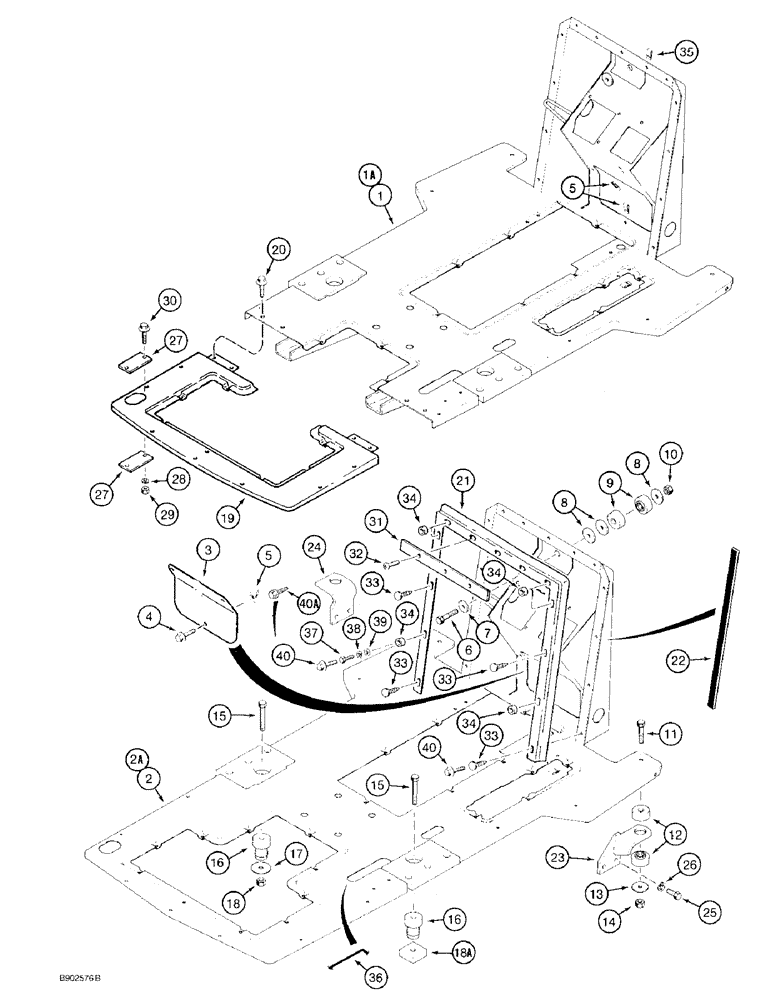

Запчасти Case 580SK (9-096) - OPERATORS COMPARTMENT FRAME AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

D148051

ROD

FRAME operators compartment

1шт.

loader models only, has a 7/16 inch mounting hole on front of lower channel for front drive axle control lever mounting, Ref. 5 and 12 on Figure 6-36, frame no longer available, 2WD units order 102452A1 frame, Ref. 1A below; 4WD units order 102452A1 frame, Ref. 1A below, 102446A1 bracket, Ref. 21A on Figure 7-012, and Ref. 24,25,27,28, and 30-33 on Fig. 6-36

1шт.

1a

102452A1

ROD ASSY.

FRAME operators compartment, loader models only, has 1/2 inch mounting hole on front of lower channel for front drive axle control lever mounting, Ref. 24 and 25 on Figure 6-36

1шт.

2

D146159

ROD ASSY.

FRAME operators compartment

1шт.

loader integral backhoe models, has a 7/16 inch mounting hole on front of lower channel for front drive axle control lever mounting, Ref. 5 and 12 on Fig. 6-36, frame no longer available, 2WD units order 102451A1 frame, Ref. 2A below; 4WD units order 102451A1 frame, Ref. 2A below, 102446A1 bracket, Ref. 21A on Fig. 7-13, and Ref. 24,25,27,28, and 30-33 on Fig. 6-36

1шт.

2a

117920A1

BRACKET

FRAME operators compartment, loader integral backhoe models, has 1/2 inch mounting hole on front of lower channel for front drive axle control lever mounting, Ref. 24 and 25 on Figure 6-36, replaces 102451A1 frame

1шт.

3

D139180

COVER

PLATE access, in firewall

1шт.

4

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW self-tapping, hex washer head, 5/16 NC x 3/4 inch

3шт.

5

131-97

SPRING NUT,Tinn, U, 5/16"-18

U-type, 5/16 inch NC

3шт.

6

426-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 8

hex, 5/8 NC x 3-3/4 inch

1шт.

7

D90873

WASHER

flat, 1/4 inch, 6 mm, thick

1шт.

8

D89007

WASHER

flat, 5/8 x 2-3/4 inch, special

3шт.

9

D138565

SHOCK ABSORBER

INSULATOR frame mounting, front

2шт.

10

429-1010

NUT,5/8"-11, G8

1шт.

11

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

hex, 5/8 NC x 4 inch, grade 8

2шт.

12

D138565

SHOCK ABSORBER

INSULATOR frame mounting, front

4шт.

13

D89007

WASHER

flat, 5/8 x 2-3/4 inch, special

2шт.

14

429-1010

NUT,5/8"-11, G8

2шт.

15

D147377

BOLT

hex, 5/8 NC x 5 inch, special thread length

2шт.

16

A141451

SHOCK ABSORBER

INSULATOR frame mount, rear, rubber

2шт.

17

D89007

WASHER

flat, 5/8 x 2-3/4 inch, special, used with Ref. 16 insulator on left-hand side of frame

1шт.

18

429-1010

NUT,5/8"-11, G8

Used with Ref. 17 washer 5/8"-11, G8

1шт.

18a

D148525

BLOCK

tapped, 2-3/4 inch square, used with Ref. 16 insulator on right-hand side of frame

1шт.

19

D141960

PLATFORM ASSY.

FRAME rear, used with Ref. 1, D148051 frame, cab or canopy loader only models with rear counterweight

1шт.

20

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW self-tapping, hex washer head, 5/16 NC x 3/4 inch, if used

4шт.

21

D132290

SEAL

firewall, used on models without cab

1шт.

22

D150055

STRIP

SEAL, 300 inch, 7620 mm, long, cut from L35819, firewall and chassis, used on models with cab

1шт.

L35819

RUBBER SEAL

SEAL, 50 foot long, bulk

1шт.

23

D144671

SUPPORT

BRACKET frame mount, right-hand front

1шт.

24

D140555

SUPPORT

BRACKET frame mount, left-hand front

1шт.

25

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

27

D140261

PLATE ASSY.

PLATE boom latch hole, used on models without backhoe, with rear counterweight

2шт.

28

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

29

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

30

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW self-tapping, hex washer head, 5/16 NC x 3/4 inch

2шт.

31

D143659

PLATE

steel

1шт.

32

440-13112

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

machine, pan head Phillps, 5/16 NC x 3/4 inch

3шт.

33

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

RETAINER push-in, plastic

4шт.

34

102439A1

SPACER

13/32 x 1/2 x 3/8 inch, seal to front instrument panel, replaces D35217 spacer

6шт.

35

131-874

NUT,Ret, J, 5/16"-18

J-type, 5/16 inch NC, if used

13шт.

36

D35424

LINING

SEAL trim, edge, 16 inch, cut to required length from bulk seal F42827, see below

1шт.

37

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

6шт.

38

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

39

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

6шт.

40

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW self-tapping, hex washer head, 5/16 NC x 3/4 inch, replaces D141589 screw, if used

3-7шт.

40a

112865A1

SCREW

pointed, self-aligning, if used

7шт.

F42827

TRIM,2946.4mm L

SEAL trim, edge, 116 inch

1шт.
