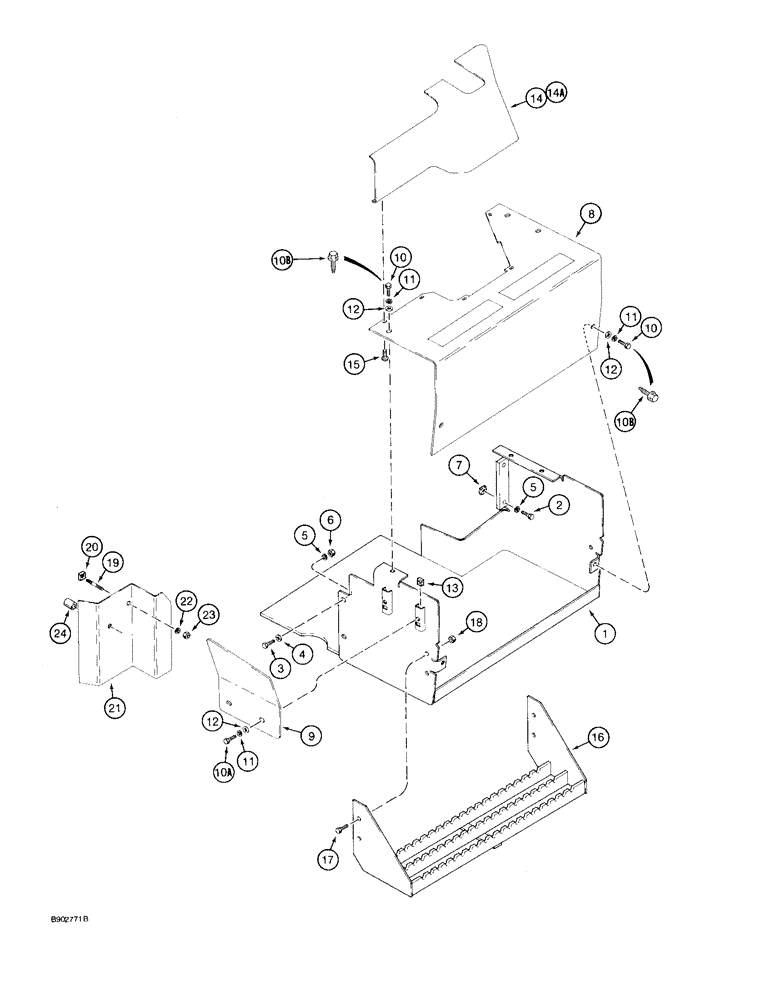

Запчасти Case 580SK (9-094) - LOADER VALVE BOX, COVERS AND STEPS (09) - CHASSIS/ATTACHMENTS

1

D147089

PLATE ASSY.

BOX enclosure, loader valve

1шт.

D147089 loader valve enclosure box -3/8" cage nuts welded on box are D88417

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

2шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch

2шт.

4

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

5

492-11038

LOCK WASHER,3/8"

4шт.

Between Ref 5 & 7, the vertical bracket shown is part # D132013, which is NSS.

1шт.

6

425-106

NUT,3/8"-16, Cl 5

2шт.

7

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

2шт.

Between Ref 5 & 7, the vertical bracket shown is part # D132013, which is NSS.

1шт.

8

D147402

LID

COVER valve enclosure box, front

1шт.

9

D150029

GUARD

mud, valve enclosure box

1шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch, if used

5шт.

10a

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

10b

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

SCREW pointed, self-aligning, special, if used, replaces 118978A1

5шт.

11

492-11038

LOCK WASHER,3/8"

7шт.

12

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

7шт.

13

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

2шт.

14

D147520

COVER

valve enclosure box, rear, plastic, with opening for hydraulic tubes, prior to P.I.N. JJG0169931, no longer available, order D150792 cover, Ref. 14A, and modify as required

1шт.

14a

D150792

COVER

valve enclosure box, rear, plastic, without opening for hydraulic tubes, P.I.N. JJC0169931 and after

1шт.

15

260-14512

SCREW,Cross Pan Hd, #10 x 3/4"

self-tapping, pan Phillips, No. 10-16 x 3/4 inch

5шт.

16

D149922

STEP

operator compartment access, right-hand, see Figure 4-18, Ref. 38, for left-hand step

1шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

4шт.

18

231-1446

NUT,3/8" - 16, Gr 5

NUT hex, self-locking, 3/8 inch NC, grade 8

4шт.

19

R46227

STUD

special, tube clamp and cover to chassis bracket

2шт.

20

84899

SQUARE NUT,Sq, 3/8"-16, G2

square, 3/8 inch NC

2шт.

21

D146883

PROTECTOR

GUARD rear, tubes at chassis

1шт.

22

492-11038

LOCK WASHER,3/8"

2шт.

23

425-106

NUT,3/8"-16, Cl 5

2шт.

24

D150735

SPACER

rear guard, left-hand mounting hole only, if used

1шт.
