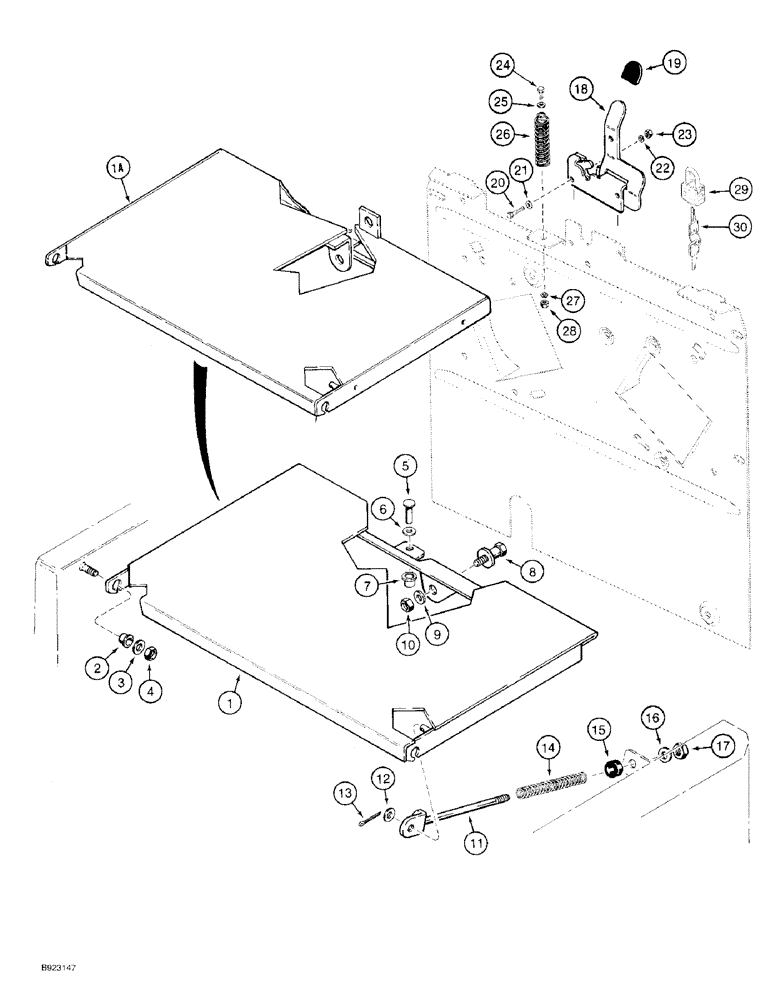

Запчасти Case 580SK (9-092) - UPRIGHT COVER AND HOOD LATCH RELEASE (09) - CHASSIS/ATTACHMENTS

1

D144452

COWL

COVER chassis upright, used with D144397 or D144409 hood on Figure 9-088, no longer available, order 110824A1 cover

1шт.

1a

110824A1

COVER ASSY

COVER chassis upright, used with 109270A1 or 111565A1 hood on Figure 9-091A, if used

1шт.

2

D134837

BEARING,10 mm ID x 26 mm OD x 8 mm

cover pivot

2шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

2шт.

4

231-1446

NUT,3/8" - 16, Gr 5

NUT light hex, self-locking, 3/8 inch NC, grade 8

2шт.

5

427-4077

CLEVIS PIN,1/4" x .770"

PIN clevis, 1/4 x 43/64 inch, hardened

1шт.

6

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

7

131-867

PUSH-ON NUT,1/4"-20, Push-on

push-on type, 1/4 inch

1шт.

8

D136115

LATCH

STRIKER upright cover

1шт.

9

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 25/64 x 1-1/4 x 7/64 inch, hardened, if used

1шт.

9

496-41041

WASHER,13/32" x 1 1/8" x .134"

flat, 13/32 x 1-1/8 x 9/64 inch, hardened, If used

1шт.

10

230-4216

LOCK NUT,3/8"-16, GA

NUT hex, self-locking, 3/8 inch NC

1шт.

11

D134872

ROD

upright cover support

1шт.

12

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

13

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

14

D125336

COIL SPRING

SPRING return, upright cover

1шт.

15

D125335

BUMPER

spring stop

1шт.

16

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

17

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

18

D144414

LATCH

hood release

1шт.

19

D144519

CAP

latch lever

1шт.

21

495-21031

WASHER,1/4"

flat, 5/16 x 47/64 x 1/16 inch

2шт.

22

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , If used 1/4"

2шт.

23

425-104

NUT,1/4"-20, Cl 5

hex, 1/4 inch NC

2шт.

24

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

25

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

26

D136113

SPRING

hood pop-up

1шт.

27

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , If used 1/4"

1шт.

28

425-104

NUT,1/4"-20, Cl 5

hex, 1/4 inch NC

1шт.

29

D93753

PADLOCK

hood latch, if used, Includes: Ref. 30

1шт.

30

R29555

KEY

for Master padlock only

2шт.

30

D93751

SET OF 2 KEYS

KEY for Yale padlock only

2шт.

20

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
