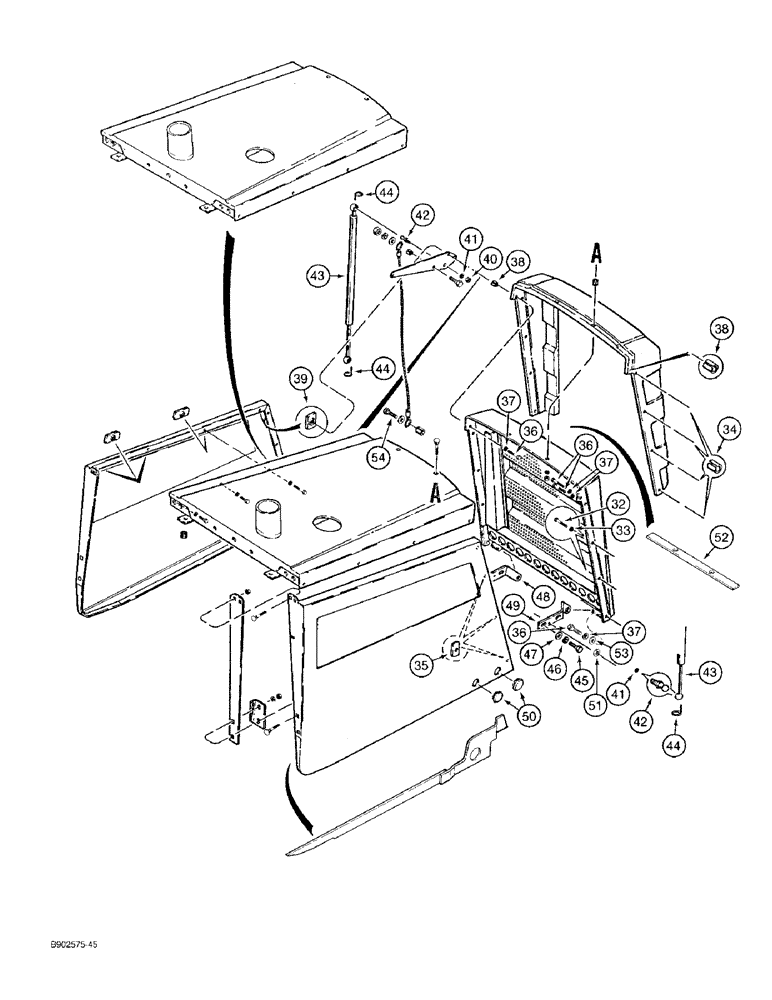

Запчасти Case 580SK (9-090) - HOOD, ENGINE SIDE PANELS AND GRILLE UNIT (09) - CHASSIS/ATTACHMENTS

33

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

34

D136619

SPACER

7 mm x 10 mm x 13 mm

8шт.

35

129-468

NUT

weld, 1/4 inch NC

6шт.

36

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

6шт.

37

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

38

D136620

SPACER

7 mm x 10 mm x 10 mm, one each side of grille to grille guard uppermost mounting holes only

2шт.

39

129-468

NUT

weld, 1/4 inch NC

4шт.

40

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

41

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

42

1340345C1

BALL STUD

STUD ball

4шт.

43

D132726

CYLINDER ASSY.

CYLINDER spring, counterbalance, hood

2шт.

44

F44883

CLIP,DIN 71805 - S10

ball stud retainer

4шт.

45

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

4шт.

46

492-11038

LOCK WASHER,3/8"

4шт.

47

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

4шт.

48

D134669

BRACKET

hinge, left-hand, attaches, Serial Range: grille-chassis

1шт.

49

D134668

BRACKET

hinge, right-hand, attaches, Serial Range: grille-chassis

1шт.

50

D140267

PLUG,30.16mm OD

side panels, if used

4шт.

51

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

52

D146866

PLATE

spacer

1шт.

53

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

54

276-24916

SELF-TAP SCREW,Hex Hd, 3/8" x 1"

SCREW self-tapping, hex head, 3/8 NC x 1 inch, lower cable mounting

2шт.

32

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.
