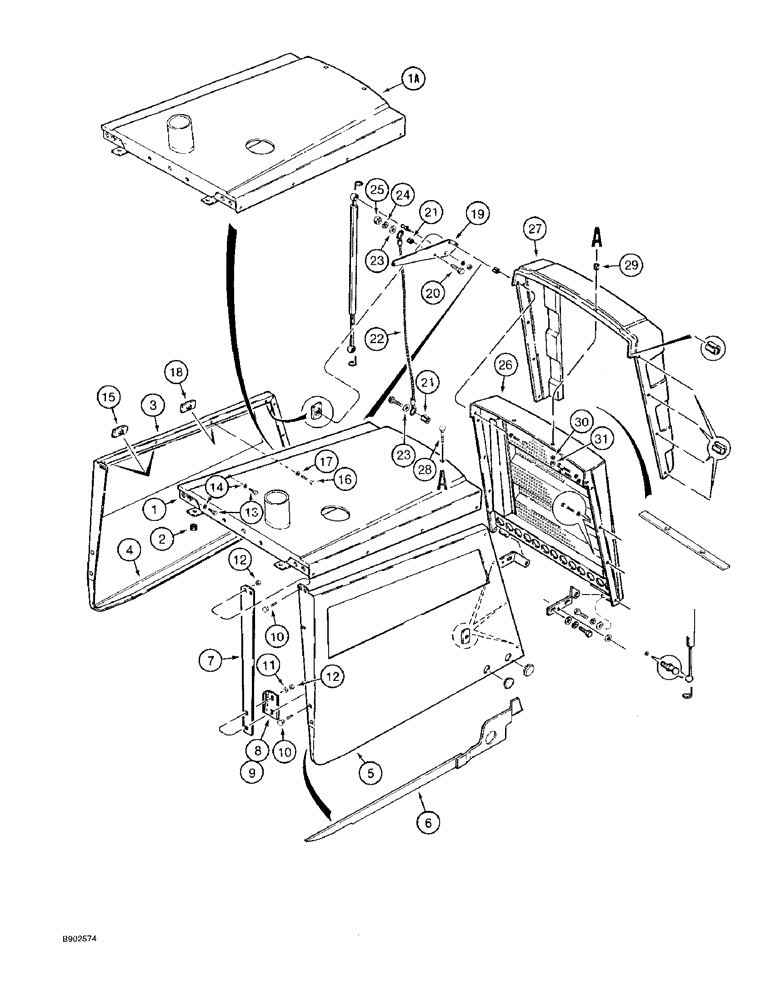

Запчасти Case 580SK (9-088) - HOOD, ENGINE SIDE PANELS AND GRILLE UNIT (09) - CHASSIS/ATTACHMENTS

1

D144397

COWL

HOOD, used on models without turbocharged engine, if used

1шт.

Also see Figure 9-091A for hood.

1шт.

1a

D144409

COWL

HOOD, used on models with turbocharged engine, if used

1шт.

Also see Figure 9-091A for hood.

1шт.

2

D145721

BUMPER

hood to air cleaner mounting bracket

2шт.

3

D143245

COWL

PANEL engine, left-hand side, Includes: Ref. 4

1шт.

4

D143260

SUPPORT

PLATE support, side panel stiffener

1шт.

5

D143244

PANEL, SIDE

PANEL engine, right-hand side, Includes: Ref. 6

1шт.

6

D143259

SUPPORT

PLATE support, side panel stiffener

1шт.

7

D134654

PLATE

engine side panels, rear guide

2шт.

8

D143714

SUPPORT

BRACKET rear guide, right-hand side panel

1шт.

9

D143715

SUPPORT

BRACKET rear guide, left-hand side panel

1шт.

10

111-364

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

8шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16"), At rear guide brackets

4шт.

12

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

8шт.

13

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

4шт.

14

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

15

129-468

NUT

weld, 1/4 inch NC

4шт.

16

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

17

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

129-468

NUT

weld, 1/4 inch NC

2шт.

19

D143903

SUPPORT

BRACKET cylinder retaining, hood

2шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch, upper cable mounting

2шт.

21

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

cable

4шт.

22

D133403

CABLE

steel, hood retaining

2шт.

23

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

24

492-11038

LOCK WASHER,3/8"

2шт.

25

425-106

NUT,3/8"-16, Cl 5

2шт.

26

D143506

GRILLE ASSY

GRILLE tilt

1шт.

27

D143461

GRILLE

GUARD grille, rubber

1шт.

28

434-520

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT carriage, 5/16 NC x 1-1/4 inch

2шт.

29

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

13/32 x 5/8 x 45/64 inch

2шт.

30

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

31

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.
