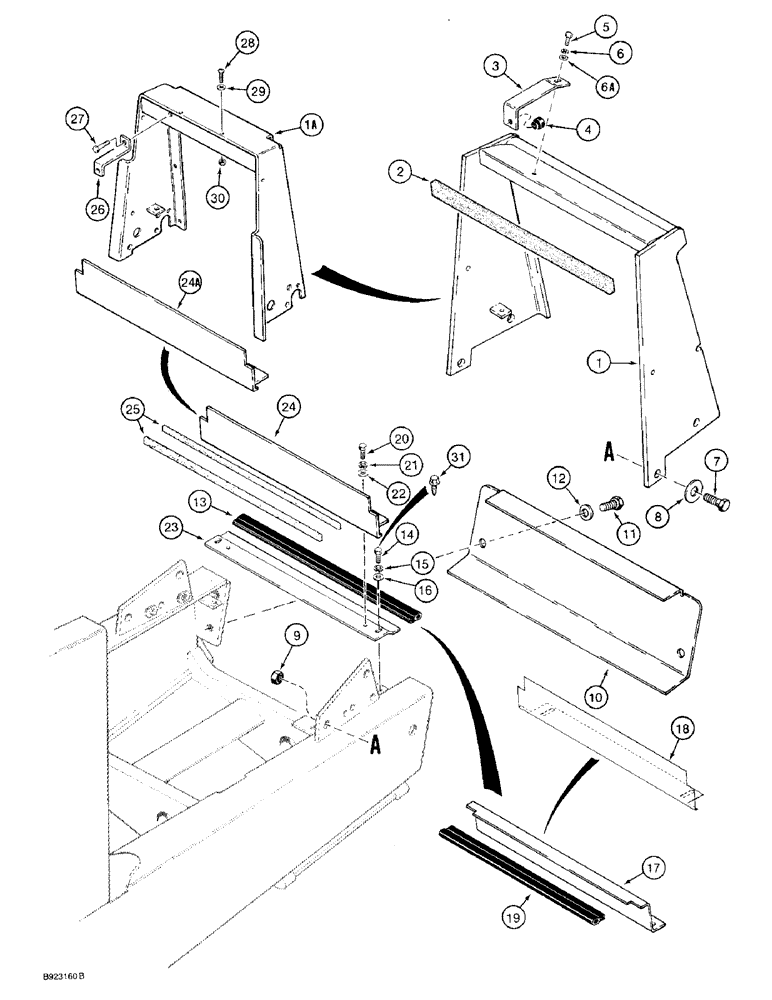

Запчасти Case 580SK (9-086) - RADIATOR SHROUD, PUMP GUARD AND FRONT COVERS (09) - CHASSIS/ATTACHMENTS

1

D148409

SUPPORT

SHROUD radiator, used with D144397 or D144409 hood on Ref. 9-88, if used

1шт.

1a

109380A1

PLATE

SHROUD radiator, used with 109270A1 or 111565A1 hood on Figure 9-091A, if used

1шт.

2

D135947

SEAL

foam, adhesive back on one side, attaches to upper rear cross tube of shroud

1шт.

3

D132477

BRACKET

radiator retaining, used with Ref. 1 shroud, if used

1шт.

4

L60224

BUMPER

rubber

1шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch, if used

1шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, ", if used 5/16"

1шт.

6a

195-521

WASHER,5/16", SAE

flat, 11/32 x 11/16 x 1/16 inch, if used

1шт.

7

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

hex, 3/4 NC x 1-3/4 inch, replaces 13-1232 2 inch bolt

4шт.

8

495-11081

WASHER,3/4", SAE

4шт.

9

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

4шт.

10

D141011

PROTECTOR

GUARD pump, not used on models with front counterweight

1шт.

11

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

hex, 3/4 NC x 1-1/4 inch

2шт.

12

495-11081

WASHER,3/4", SAE

2шт.

13

D135944

SEAL

576 mm long, cut from F43117 bulk seal, see below, lower baffle plate, used only on models with front counterweight

1шт.

14

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch, if used

2шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , if used 5/16"

2шт.

16

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64"), If used 5/16"

2шт.

17

D145479

BAFFLE

PLATE baffle, upper, not used on models with air conditioning

1шт.

18

D138355

PLATE

baffle, upper, used only on models with air conditioning, if used

1шт.

19

D128489

LINING

SEAL, 496 mm long, cut from F43117 bulk seal, see below, upper baffle plate

1шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

2шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

22

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

23

D141013

PLATE

baffle, lower, used on models with air conditioning or models with auxiliary hydraulics for optional rear hydraulic attachments

1шт.

24

D140971

SHEET

PLATE baffle, lower, used with Ref. 25 seal and Ref. 23 plate on models with air conditioning or models with auxiliary hydraulics for optional rear hydraulic attachments, no longer available, order 111980A1, Ref. 24A

1шт.

24a

111980A1

LARGE PLATE

PLATE baffle, lower, used with Ref. 25 seal and Ref. 23 plate on models with turbocharged engines on tractor P.I.N. JJG0173468 and after, on models with air conditioning or models with auxiliary hydraulics for optional rear hydraulic attachments, if used

1шт.

25

D140871

BAND

SEAL, 560 mm long, cut from D126201 bulk, used with Ref. 24 or 24A plate, 2 used on models with air conditioning, if used

1-2шт.

D126201

RUBBER SEAL,20mm W x 912mm L x 10mm Thk

SEAL, 912 mm long, adhesive back, bulk

1шт.

F43117

SEAL

100 ft, 3048 cm, long, bulk

1шт.

26

116129A1

BRACKET

radiator retaining, used with item 1A shroud, if used, replaces 107237A1

1шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch, if used

1шт.

28

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan head Phillips, No. 10 NC x 3/4 inch, if used

4шт.

29

109879A1

SPACER,5.5mm ID x 30mm OD

plastic, hood, if used

4шт.

30

86625057

NUT,#10-24, GB

NUT, LOCK, , If used #10-24, GB

4шт.

31

112865A1

SCREW

hex flange, self-tapping, replaces Ref. 14-16 on some models

2шт.

on some models

2шт.
