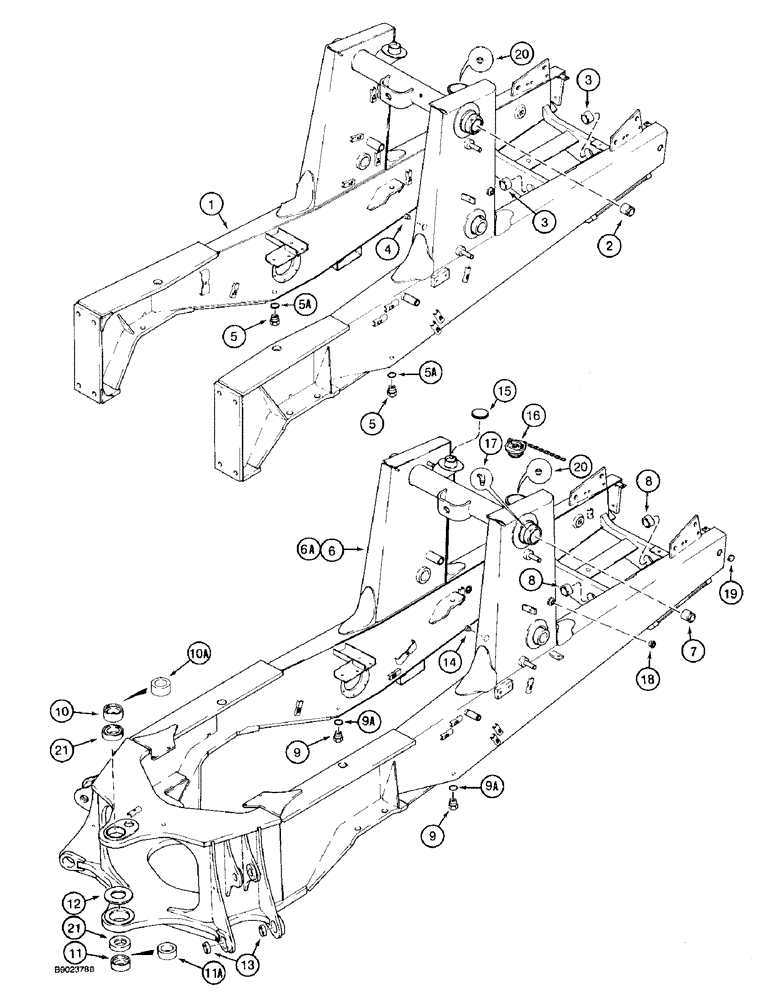

Запчасти Case 580SK (9-084) - CHASSIS (09) - CHASSIS/ATTACHMENTS

1

D150716

CHASSIS

loader models, replaces D147935, Includes: Ref. 2 through 5A

1шт.

2

D129061

BUSHING,44.68mm ID x 57.15mm OD x 52.3mm L

loader frame pivot

2шт.

3

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

front axle pivot

2шт.

4

444789

PLUG,Sq Soc, 1/2"-14 NPTF

square socket, 1/2 inch PT

1шт.

5

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

hex, 1-5/8-12 inch O-ring boss, Includes: Ref. 5A

2шт.

5a

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

6

D147688

CHASSIS

loader with integral backhoe models, uses Ref. 10, D135555, and Ref. 11, D135556, bushings and four Ref. 21, D127974, grease seals, prior to P.I.N. JJG0163952, see Note A

1шт.

6a

D150715

FRAME

CHASSIS loader with integral backhoe, uses Ref. 10A, D150118, and 11A, D150119, bushings without grease seals, P.I.N. JJG0163952 through JJG0169930, see Note A, no longer available, order 111607A1 chassis

1шт.

6b

D151192

FRAME

CHASSIS loader with integral backhoe, not shown, uses Ref. 10A, D150118, and 11A, D150119, bushings without grease seals, P.I.N. JJG0169931 through JJG0171614, see Note A, no longer available, order 111607A1 chassis

1шт.

6c

111607A1

CHASSIS

loader with integral backhoe, not shown, uses Ref. 10A, D150118, and 11A, D150119, bushings without grease seals, P.I.N. JJG0171615 and after, if used, see Note B, Includes: Ref. 7 through 14

1шт.

7

D129061

BUSHING,44.68mm ID x 57.15mm OD x 52.3mm L

loader frame pivot

2шт.

8

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

front axle pivot

2шт.

9

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

hex, 1-5/8-12 inch O-ring boss, Includes: Ref. 9A

2шт.

9a

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

10

D135555

BUSHING,70.19mm ID x 90mm OD x 32mm L

upper, backhoe frame, swing tower mounting, has grease seal retaining groves, used with two Ref. 21, D127974 grease seals, D147688 chassis

1шт.

10a

D150118

BUSHING

upper, backhoe frame, swing tower mounting, D150715, D151192, and 111607A1 chassis

1шт.

11

D135556

BUSHING,70.19mm ID x 90mm OD x 38mm L

lower, backhoe frame, swing tower mounting has grease seal retaining groves, used with two Ref. 21, D127974 grease seals, D147688 chassis

1шт.

11a

D150119

BUSHING

lower, backhoe frame, swing tower mounting, D150715, D151192, and 111607A1 chassis

1шт.

12

D144112

SPACER

93 mm x 135 mm x 6 mm, bearing, Serial Range: welds-frame

1шт.

13

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

lower, side, backhoe frame, at stabilizer leg mounting

4шт.

14

221-844

PLUG,Hex Soc, 1/2"-14

square socket, 1/2 inch PT, replaces 444789

1шт.

15

A51390

CAP

diesel fuel reservoir, left-hand, order D93757

1шт.

16

D93981

FILLER CAP

CAP hydraulic oil reservoir, right-hand

1шт.

17

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING grease, 45 degree, 1/8 PT x 7/8 inch, loader frame pivot

2шт.

18

D63875

PLUG

GAUGE sight, hydraulic oil level

1шт.

18

D63875

PLUG

GAUGE sight, hydraulic oil level

1шт.

19

41-1020

PLUG,Cup, 1 1/4"

cup, 1-1/4 inch diameter

2шт.

20

N8796

PLUG

BREATHER hydraulic oil fill tube

1шт.

21

D127974

SEAL,67.46mm ID x 80.18mm OD x 3.56mm Thk

backhoe frame, at swing tower mounting, D147688 chassis

4шт.
