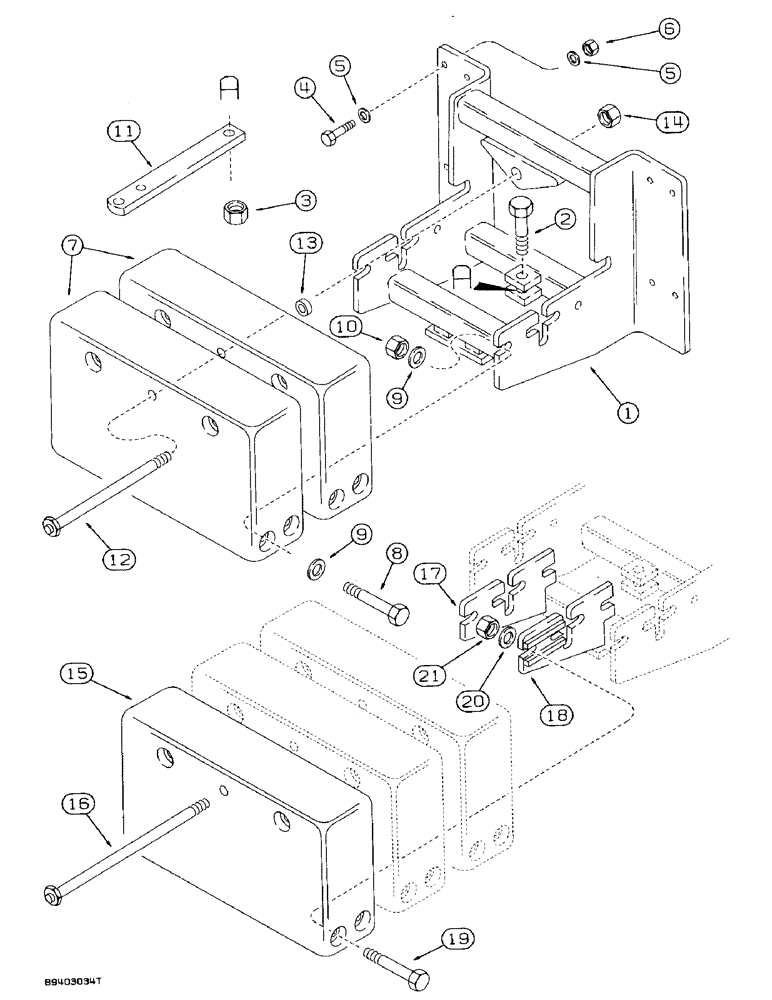

Запчасти Case 580SK (9-082) - REAR COUNTERWEIGHT AND DRAWBAR, SPECIAL PARTS USED TO MOUNT (09) - CHASSIS/ATTACHMENTS

1

D136658

FRAME

rear counterweight, rear counterweight and drawbar

1шт.

2

426-1880

BOLT,Hex, 1-1/8" - 7 x 5", Gr 8

hex, 1-1/8 NC x 5 inch, grade 8, rear counterweight and drawbar

1шт.

3

131-1413

LOCK NUT,1 1/8"-7, GC

NUT light hex, self-locking, 1-1/8 inch NC, rear counterweight and drawbar

1шт.

4

326-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

Rear counterweight and drawbar Hex, 3/4"-10 x 3", G8

8шт.

5

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, 3/4 inch hardened, rear counterweight and drawbar

16шт.

6

129-572

NUT,3/4"-10, G8

Rear counterweight and drawbar 3/4"-10, G8

8шт.

7

D31204

BALANCER

COUNTERWEIGHT rear, each 1425 lbs, 646 kg, rear counterweight and drawbar

2шт.

8

413-16112

BOLT,Hex, 1" - 8 x 7", Gr 5

hex, 1 NC x 7 inch, rear counterweight and drawbar

8шт.

9

495-11106

WASHER,1", SAE

flat, 1-1/16 x 2 x 1/8 inch, Rear counterweight and drawbar

16шт.

10

425-1016

NUT,1"-8, G5

- hex, 1 inch NC, Rear counterweight and drawbar

8шт.

11

D93293

DRAWBAR, SWINGING

DRAWBAR tractor, rear counterweight and drawbar

1шт.

12

D139275

BOLT

special, rear counterweight and drawbar

1шт.

13

H62406

SPACER

counterweight, rear counterweight and drawbar

1шт.

14

131-1412

LOCK NUT,1"-8, GC

NUT light hex, self-locking, 1 inch NC, rear counterweight and drawbar

1шт.

15

D31204

BALANCER

COUNTERWEIGHT rear, 1425 lbs, 646 kg, used with 2800 lbs rear counterweight, if used, special parts used to mount additional 1400 pound near counterweight

1шт.

16

D140548

BOLT

BOLT special, special parts used to mount additional 1400 pound near counterweight

1шт.

17

D93344

PLATE

BRACKET left-hand, additional counterweight adapter, special parts used to mount additional 1400 pound near counterweight

1шт.

18

D93345

PLATE

BRACKET right-hand, additional counterweight adapter, special parts used to mount additional 1400 pound near counterweight

1шт.

19

113-974

BOLT,Hex, 1" - 8 x 6-3/4", Gr 5

Special parts used to mount additional 1400 pound near counterweight Hex, 1"-8 x 6 3/4", G5

4шт.

20

195-553

WASHER,1", SAE

flat, 1-1/16 x 2 x 1/8 inch, special parts used to mount additional 1400 pound near counterweight

4шт.

21

425-1016

NUT,1"-8, G5

- hex, 1 inch NC, Special parts used to mount additional 1400 pound near counterweight

4шт.
