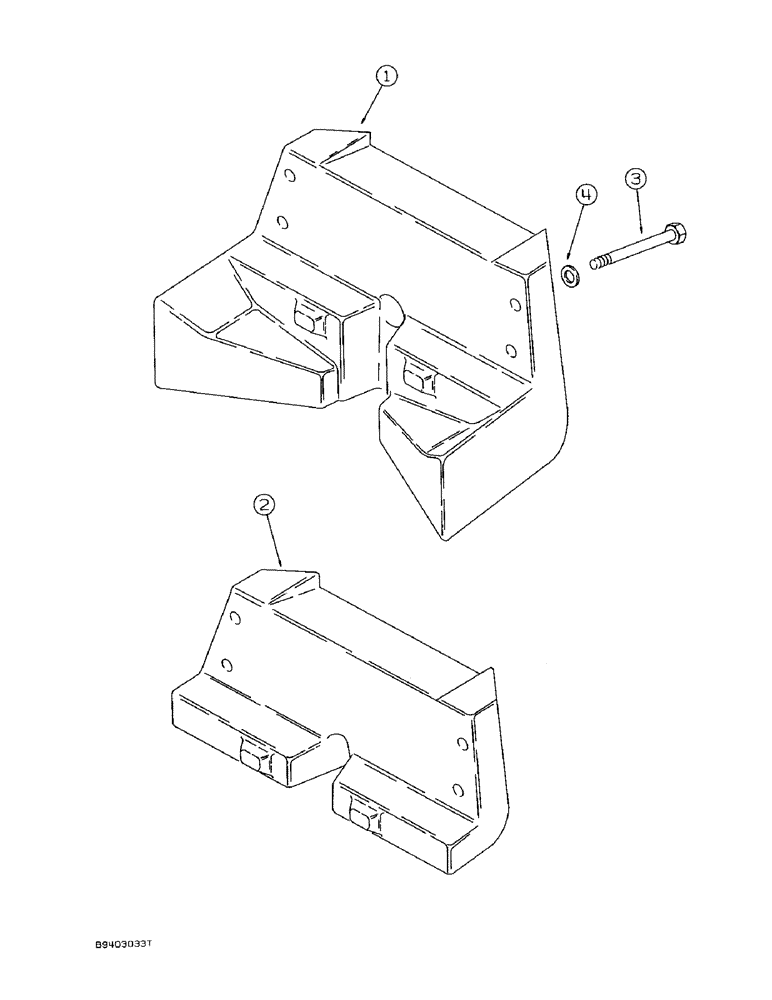

Запчасти Case 580SK (9-080) - FRONT COUNTERWEIGHT (09) - CHASSIS/ATTACHMENTS

1

D141716

BALANCER

COUNTERWEIGHT, front, 900 lbs, 408 kg, not used if front pump guard is used, see Figure 9-086, Ref. 10 through 12, for pump guard and mounting hardware

1шт.

2

D141717

BALANCER

COUNTERWEIGHT front, 400 lbs, 181 kg, if used

1шт.

3

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

hex, 3/4 NC x 4-1/2 inch

4шт.

4

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

flat, 25/32 x 1-3/8 x 1/8 inch, hardened

4шт.
