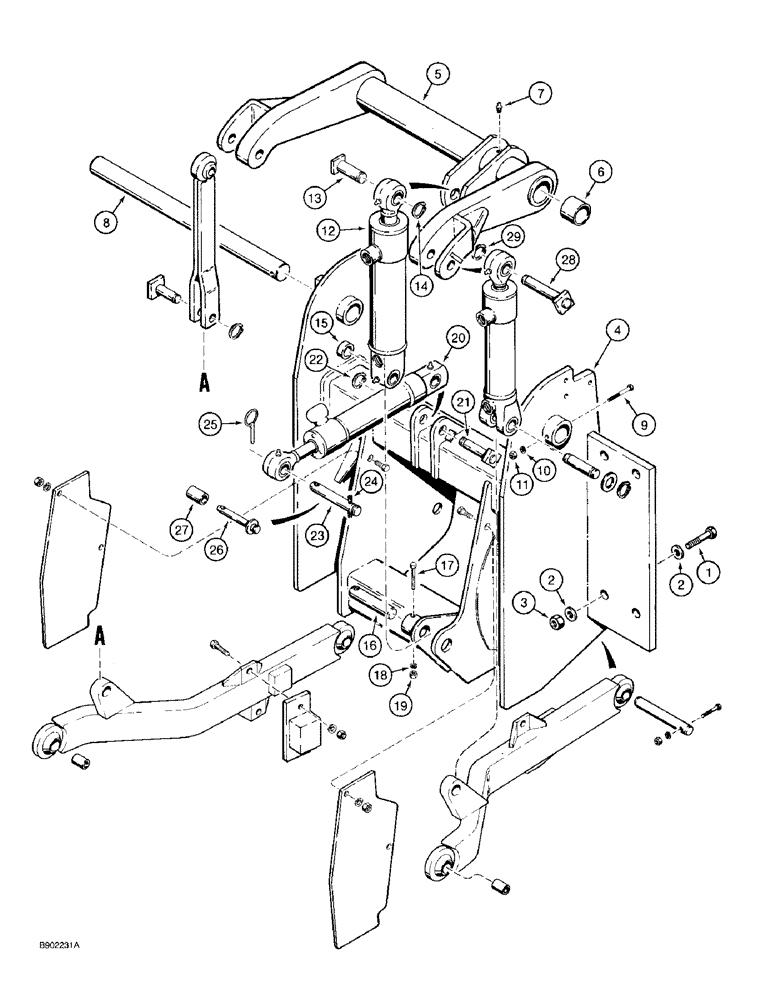

Запчасти Case 580SK (9-074) - THREE-POINT HITCH FRAME, DRAFT ARMS, LINKAGE AND CYLINDER MOUNTING (09) - CHASSIS/ATTACHMENTS

1

326-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

8шт.

2

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, 3/4 inch hardened

16шт.

3

429-1012

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8

8шт.

4

D149215

FRAME

three-point hitch

1шт.

5

D146067

SHAFT

TUBE rockshaft, Includes: Ref. 6

1шт.

6

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

tube

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

1шт.

8

D146070

SHAFT

ROCKSHAFT three-point hitch

1шт.

9

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

G101189

CYLINDER ASSY.

CYLINDER ASSEMBLY lift, parts list Figure 8-142

1шт.

13

D51302

PIN

mounting, lift cylinder, upper, Includes: Ref. 14

1шт.

14

103-16125

SNAP RING,#125, Ext

Ring, Snap, , Pin #125, Ext

1шт.

15

D51692

SPACER

lift cylinder mounting pin, lower

1шт.

16

D51695

PIN

mounting, lift cylinder, lower

1шт.

17

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

hex, 3/8 NC x 2-1/2 inch

1шт.

18

492-11038

LOCK WASHER,3/8"

1шт.

19

425-106

NUT,3/8"-16, Cl 5

1шт.

20

1976884C1

JACK BODY

CYLINDER ASSEMBLY pitch, parts list Figure 8-146

1шт.

138235A1R

REMAN-HYD CYLINDER

580SK, Reman For New P/N 1976884C1

1шт.

138235A1C

CORE-HYD CYLINDER

Return Number

1шт.

21

D141090

PIN

mounting, pitch cylinder at mounting frame

1шт.

22

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING snap, pin retaining

1шт.

23

115749A1

PIN

1 inch diameter, pitch cylinder to equipment, for use with Category II hitch, if used, replaces D140990, Includes: Ref. 24

1шт.

24

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

1шт.

25

D33805

PIN

lock

1шт.

26

D141292

PIN

3/4 inch diameter, pitch cylinder to equipment, for use with Category I hitch, if used

1шт.

27

D141156

TUBE

BUSHING pivot, pitch cylinder rod eye, used with D141292 pin to adapt for use with Category I hitch, if used

1шт.

28

D51299

PIN

mounting, tilt cylinder and strut, upper

2шт.

29

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING snap, pin retaining

2шт.
