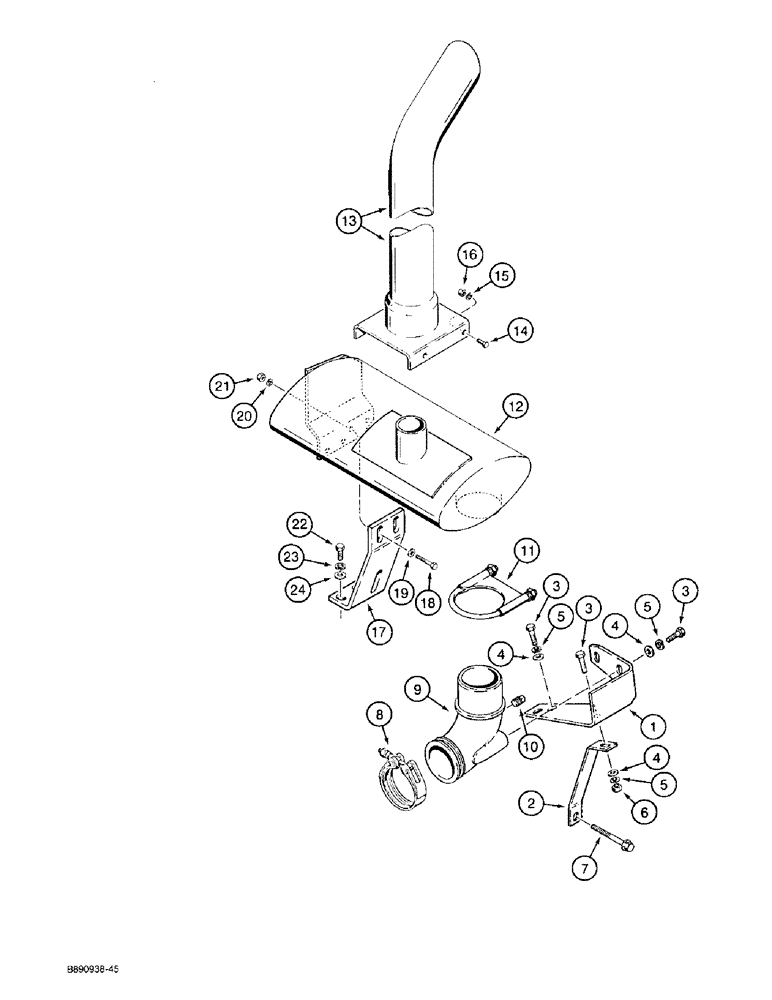

Запчасти Case 580SK (2-16) - MUFFLER AND EXHAUST SYSTEM MODELS WITH TURBOCHARGED ENGINE (02) - ENGINE

1

L126939

SUPPORT

BRACKET exhaust elbow, replaces L114429

1шт.

2

L115129

SUPPORT

BRACE exhaust bracket

1шт.

3

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

5шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

5шт.

5

892-11010

LOCK WASHER,M10

5шт.

6

825-1410

NUT,M10, Cl 8

1шт.

7

844-10080

BOLT,Hvy Hex, M10 x 80mm, Cl 8.8

hex flange, 10 mm - 1.5 x 80 mm, replaces existing manifold bolt

1шт.

8

A170467

CLAMP,72mm ID

adapter retaining, includes hardware, at engine

1шт.

9

A173795

ELBOW

ADAPTER, 93 degree, exhaust

1шт.

10

221-841

PLUG

hex socket, 1/4 inch PT

1шт.

11

L14222

CLAMP,79.25mm ID

at muffler, includes hardware, replaces L73711

1шт.

12

A184890

MUFFLER

engine exhaust

1шт.

13

D151014

PIPE

exhaust, muffler extension, replaces D136087 pipe

1шт.

14

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

16

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

17

A189275

SUPPORT

BRACKET muffler support

1шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

2шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

flat, (13/32 x 13/16 x 1/16")

2шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

425-106

NUT,3/8"-16, Cl 5

2шт.

22

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

See Figure 4-14 for hardware used on models with air conditioning.

1шт.

23

892-11010

LOCK WASHER,M10

2шт.

See Figure 4-14 for hardware used on models with air conditioning.

1шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

flat, 11 x 21 x 2 mm

2шт.

See Figure 4-14 for hardware used on models with air conditioning.

1шт.
