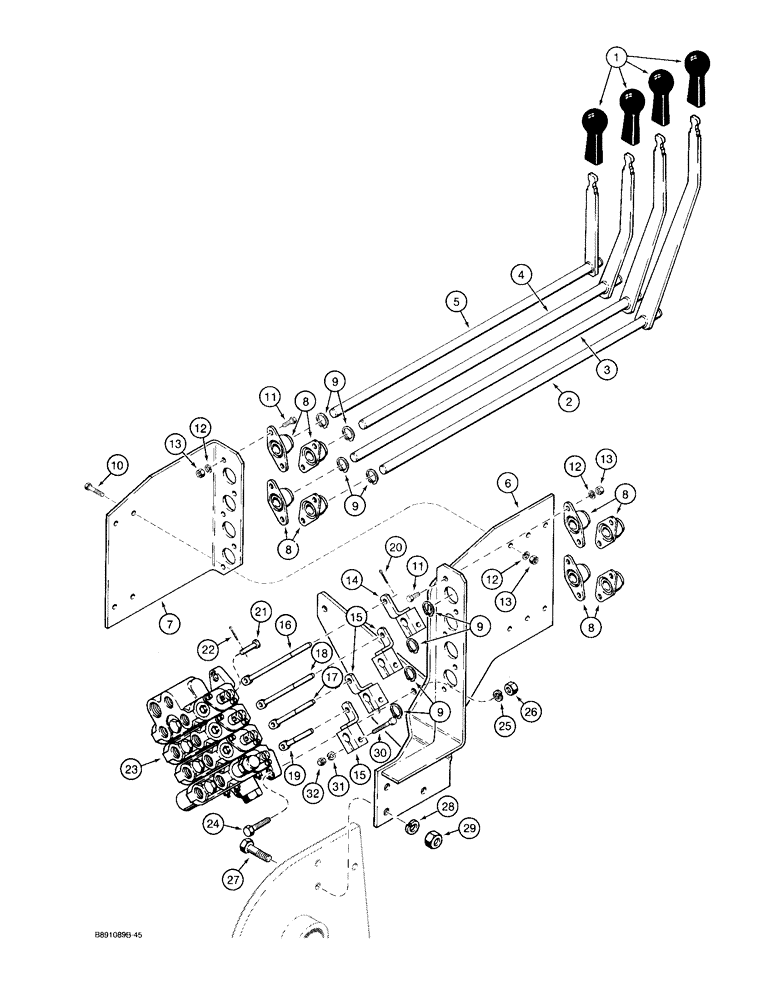

Запчасти Case 580SK (9-072) - THREE-POINT HITCH CONTROLS (09) - CHASSIS/ATTACHMENTS

1

D135387

GRIP

KNOB control lever

4шт.

2

D149234

HANDLE

LEVER lift control

1шт.

3

D149233

HANDLE

LEVER tilt control

1шт.

4

D149232

HANDLE

LEVER pitch control

1шт.

5

D149231

HANDLE

LEVER implement control

1шт.

6

D149228

BRACKET

valve and control lever mounting

1шт.

7

D149229

BRACKET

front adjustment

1шт.

8

L15401

BEARING,15.89mm ID

pivot

8шт.

9

100-1462

SNAP RING,#62, Ext

Ring, Snap, , Brg #62, Ext

8шт.

10

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

4шт.

11

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

10шт.

12

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

14шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

14шт.

14

D143923

SPECIAL CLAMP

RETAINER long pivot

1шт.

15

D143922

SPECIAL CLAMP

RETAINER short pivot

3шт.

16

D136359

LINK

ROD lift control, Serial Range: shaft-valve

1шт.

17

D136358

LINK

ROD tilt control, Serial Range: shaft-valve

1шт.

18

D136357

LINK

ROD pitch control, Serial Range: shaft-valve

1шт.

19

D136356

LINK

ROD implement control, Serial Range: shaft-valve

1шт.

20

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

4шт.

21

427-4077

CLEVIS PIN,1/4" x .770"

PIN clevis, 1/4 x 43/64 inch, hardened

4шт.

22

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

4шт.

23

D141297

VALVE

ASSEMBLY three-point hitch control, four spool, parts list Figure 8-104

1шт.

24

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch, valve mounting

3шт.

25

492-11038

LOCK WASHER,3/8"

3шт.

26

425-106

NUT,3/8"-16, Cl 5

3шт.

27

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

Valve mounting bracket to three-point hitch frame Hex, 1/2"-13 x 1 1/2", G5, Full Thd

3шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

29

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

30

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

31

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

32

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.
