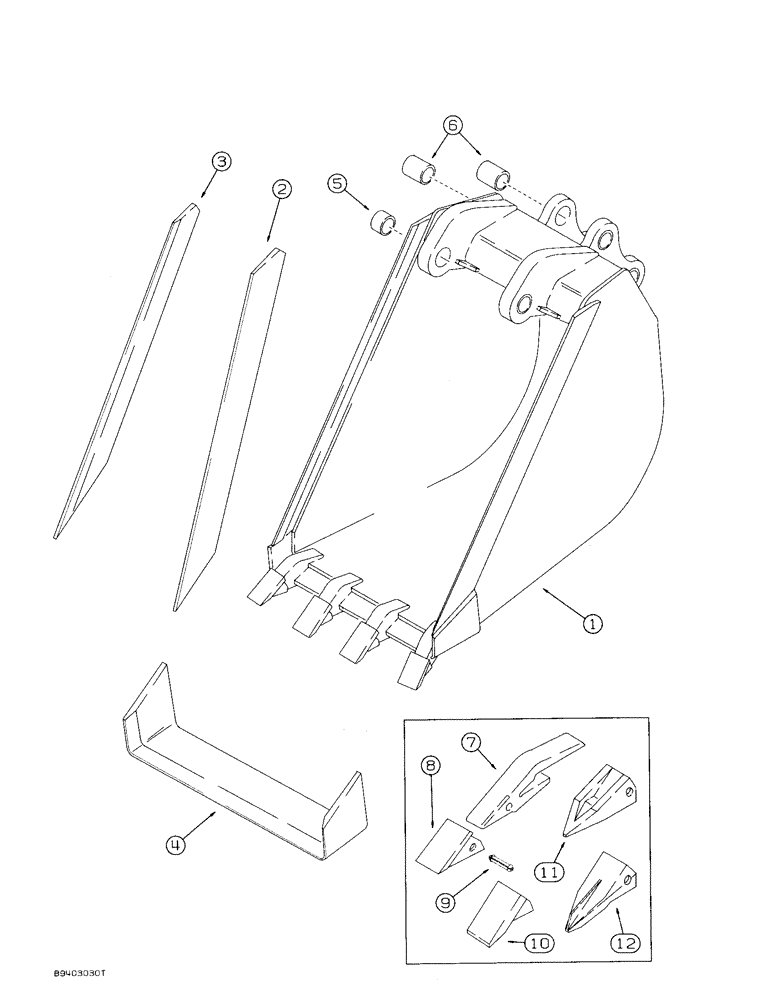

Запчасти Case 580SK (9-066) - BACKHOE BUCKET, 24 INCH, 610 MM, WIDE, 24 INCH, 610 MM, WIDE (09) - CHASSIS/ATTACHMENTS

1

L107618

BUCKET

ASSEMBLY, 24 inch, 610 mm, with 4 teeth, machinery item, order from the Machinery Price List, 24 inch, 610 mm, wide high capacitiy trenching bucket, Includes: Ref. 2 through 9

1шт.

2

L70084

EDGE, CUTTING

EDGE cutting, bucket, right-hand side, 24 inch, 610 mm, wide high capacitiy trenching bucket

1шт.

3

L70083

EDGE, CUTTING

EDGE cutting, bucket, left-hand side, 24 inch, 610 mm, wide high capacitiy trenching bucket

1шт.

4

D41673

EDGE, CUTTING

EDGE cutting, bucket, center, 24 inch, 610 mm, wide high capacitiy trenching bucket

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

bucket, at dipper, 24 inch, 610 mm, wide high capacitiy trenching bucket

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

bucket, at bucket links, 24 inch, 610 mm, wide high capacitiy trenching bucket

4шт.

L43266

TOOTH

ASSEMBLY high capacity bucket, 24 inch, 610 mm, wide high capacitiy trenching bucket, Includes: Ref. 7, 8 and 9

4шт.

7

NSS

NOT SOLD SEPARAT

SHANK tooth, 24 inch, 610 mm, wide high capacitiy trenching bucket

1шт.

8

D39093

TOOTH

POINT tooth, 24 inch, 610 mm, wide high capacitiy trenching bucket

1шт.

9

D39094

BUCKET TOOTH KEY

PIN flex, point, 24 inch, 610 mm, wide high capacitiy trenching bucket

1шт.

10

D44193

TOOTH

POINT tooth, heavy duty, flat end, service option, optional bucket teeth

1шт.

11

D80119

TOOTH

POINT tooth, heavy duty, pointed end, service option, optional bucket teeth

1шт.

12

D79100

TOOTH

POINT tooth, heavy duty, star point, service option, optional bucket teeth

1шт.
