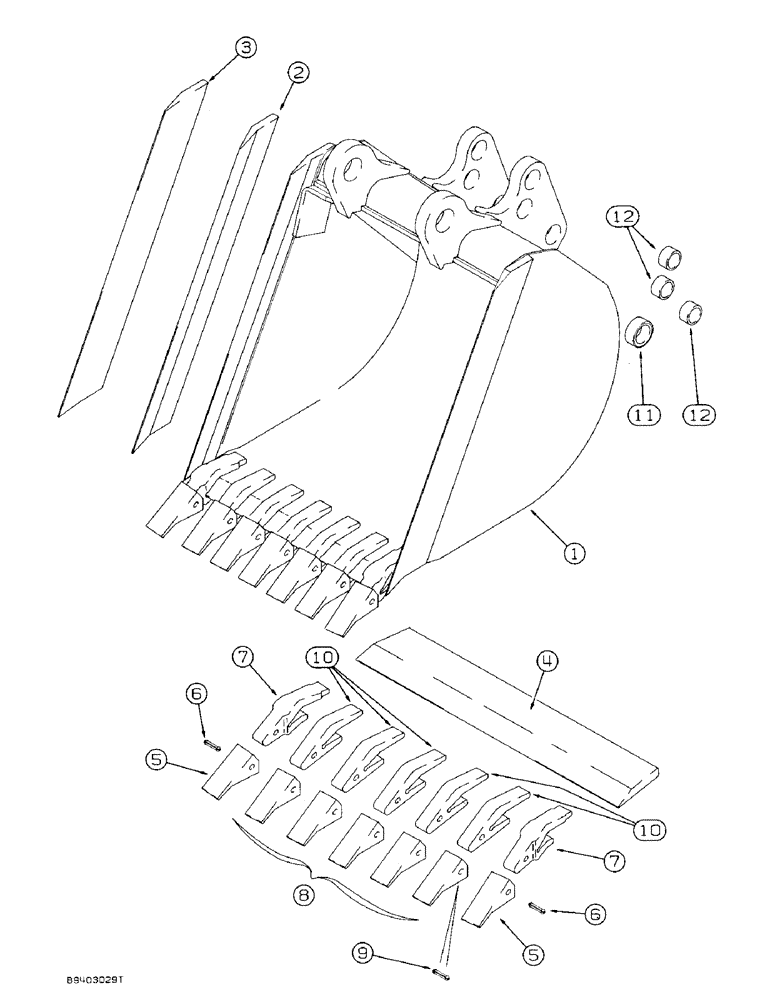

Запчасти Case 580SK (9-064) - UNIVERSAL BACKHOE BUCKETS, 36 INCH, 914 MM, WIDE, 36 INCH, 914MM, WIDE (09) - CHASSIS/ATTACHMENTS

1

D150365

BUCKET

ASSEMBLY, 36 inch, 914 mm, with 7 teeth, machinery item, order from the Machinery Price List, replaces D147358 bucket, Includes: Ref. 2 - 12

1шт.

2

D146421

EDGE, CUTTING

EDGE cutting, bucket, right-hand side

1шт.

3

D146420

EDGE, CUTTING

EDGE cutting, bucket, left-hand side

1шт.

4

D145062

EDGE, CUTTING,901.8mm W x 165.1mm L

EDGE cutting, center, 36 inch, 914 mm, bucket

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy, outer corners, Includes Ref 5 - 7

2шт.

5

D39093

TOOTH

POINT tooth, outer corners

1шт.

6

D134686

SPLIT PIN/SAFETY PIN

PIN flex, outer point and shank

1шт.

7

D138157

SHANK

tooth, outer corners

1шт.

D139849

BUCKET TOOTH

TOOTH, BUCKET, Assy, Center, order items 8-10, Includes Ref 8, 9 and 10

5шт.

8

D51750

BUCKET TOOTH POINT

POINT tooth, center

1шт.

9

D134686

SPLIT PIN/SAFETY PIN

PIN flex, center point and shank

1шт.

10

D48212

SHANK

tooth, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4 x 2-1/4 x 1-1/4 inch

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2 x 1-7/8 x 1-1/4 inch

6шт.
