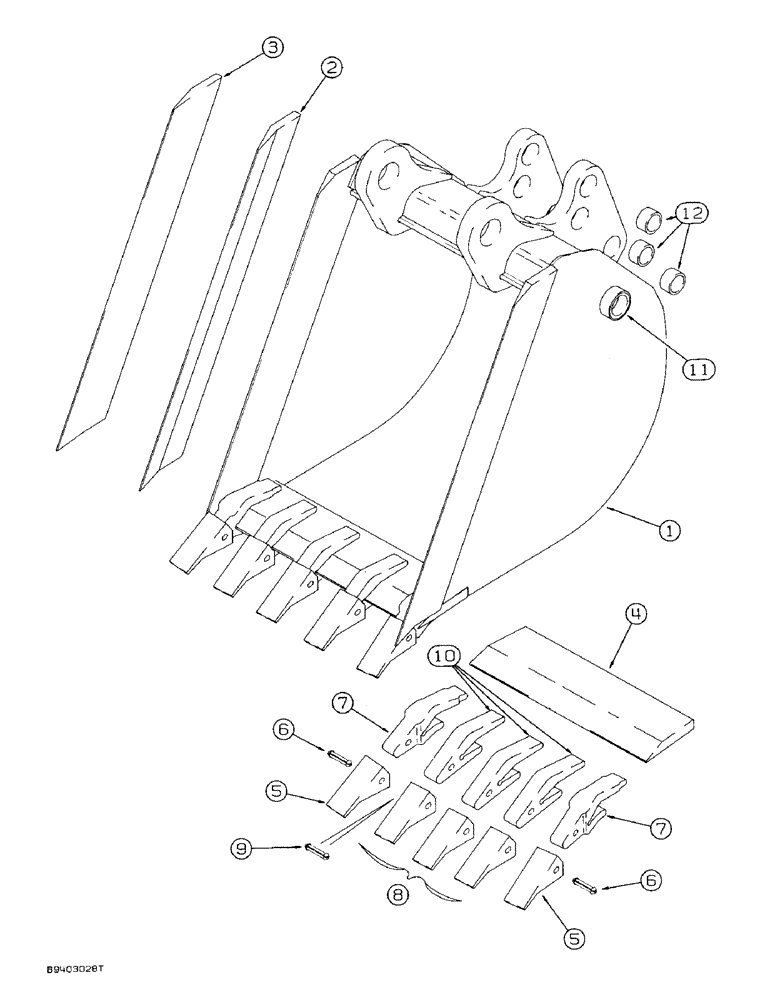

Запчасти Case 580SK (9-062) - UNIVERSAL BACKHOE BUCKETS, 24 INCH, 610 MM, AND 30 INCH, 762MM, WIDE (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
D150348
BUCKET
ASSEMBLY, 24 inch, 610 mm, with 5 teeth, machinery item, order from the Machinery Price List, replaces D146355 bucket, 24 inch, 610 mm, wide trenching bucket and teeth - heavy duty, Includes: Ref. 2 through 12
1шт.
2
D146421
EDGE, CUTTING
EDGE cutting, bucket, right-hand side, 24 inch, 610 mm, wide trenching bucket and teeth - heavy duty
1шт.
2
D146421
EDGE, CUTTING
EDGE cutting, bucket, right-hand side, 24 inch, 610 mm, wide trenching bucket and teeth - heavy duty
1шт.
3
D146420
EDGE, CUTTING
EDGE cutting, bucket, left-hand side, 24 inch, 610 mm, wide trenching bucket and teeth - heavy duty
1шт.
4
D142012
EDGE, CUTTING,597mm W x 165.1mm L
EDGE cutting, center, 24 inch, 610 mm, bucket, 24 inch, 610 mm, wide trenching bucket and teeth - heavy duty
1шт.
D139851
BUCKET TOOTH
TOOTH, BUCKET, Assy, outer corners, 24 inch, 610 mm, wide trenching bucket and teeth - heavy duty, Includes Ref 5, 6 and 7
2шт.
5
D39093
TOOTH
POINT tooth, outer corners, 24 inch, 610 mm, wide trenching bucket and teeth - heavy duty
1шт.
6
D134686
SPLIT PIN/SAFETY PIN
PIN flex, outer point and shank, 24 inch, 610 mm, wide trenching bucket and teeth - heavy duty
1шт.
7
D138157
SHANK
tooth, outer corners, 24 inch, 610 mm, wide trenching bucket and teeth - heavy duty
1шт.
D139849
BUCKET TOOTH
TOOTH, BUCKET, Assy, Center (order Ref 8-10), 24 inch, 610 mm, wide trenching bucket
3шт.
8
D51750
BUCKET TOOTH POINT
POINT tooth, center, 24 inch, 610 mm, wide trenching bucket and teeth - heavy duty
1шт.
9
D134686
SPLIT PIN/SAFETY PIN
PIN flex, center point and shank, 24 inch, 610 mm, wide trenching bucket and teeth - heavy duty
1шт.
10
D48212
SHANK
tooth, center, 24 inch, 610 mm, wide trenching bucket and teeth - heavy duty
1шт.
11
D37495
BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L
1-3/4 x 2-1/4 x 1-1/4 inch, 24 inch, 610 mm, wide trenching bucket and teeth - heavy duty
2шт.
12
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
1-1/2 x 1-7/8 x 1-1/4 inch, 24 inch, 610 mm, wide trenching bucket and teeth - heavy duty
6шт.
1
D150364
BUCKET
ASSEMBLY, 30 inch, 762 mm, with 5 teeth, not shown, machinery item, order from the Machinery Price List, replaces D147350 bucket, 30 inch, 762 mm, wide trenching bucket and teeth - heavy duty, Includes: Ref. 2 through 12
1шт.
2
D146421
EDGE, CUTTING
EDGE cutting, bucket, right-hand side, 30 inch, 762 mm, wide trenching bucket and teeth - heavy duty
1шт.
3
D146420
EDGE, CUTTING
EDGE cutting, bucket, left-hand side, 30 inch, 762 mm, wide trenching bucket and teeth - heavy duty
1шт.
4
D145061
EDGE, CUTTING
EDGE cutting, center, 30 inch, 762 mm, bucket, 30 inch, 762 mm, wide trenching bucket and teeth - heavy duty
1шт.
D139851
BUCKET TOOTH
TOOTH, BUCKET, Assy, outer corners, 30 inch, 762 mm, wide trenching bucket and teeth - heavy duty, Includes Ref 5, 6 and 7
2шт.
5
D39093
TOOTH
POINT tooth, outer corners, 30 inch, 762 mm, wide trenching bucket and teeth - heavy duty
1шт.
6
D134686
SPLIT PIN/SAFETY PIN
PIN flex, outer point and shank, 30 inch, 762 mm, wide trenching bucket and teeth - heavy duty
1шт.
7
D138157
SHANK
tooth, outer corners, 30 inch, 762 mm, wide trenching bucket and teeth - heavy duty
1шт.
D139849
BUCKET TOOTH
TOOTH, BUCKET, Assy, Center (order Ref 8-10), 30 inch, 762 mm, wide trenching bucket
3шт.
8
D51750
BUCKET TOOTH POINT
POINT tooth, center, 30 inch, 762 mm, wide trenching bucket and teeth - heavy duty
1шт.
9
D134686
SPLIT PIN/SAFETY PIN
PIN flex, center point and shank, 30 inch, 762 mm, wide trenching bucket and teeth - heavy duty
1шт.
10
D48212
SHANK
tooth, center, 30 inch, 762 mm, wide trenching bucket and teeth - heavy duty
1шт.
11
D37495
BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L
1-3/4 x 2-1/4 x 1-1/4 inch
2шт.
12
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
1-1/2 x 1-7/8 x 1-1/4 inch
6шт.
Выбрано товаров: 29
