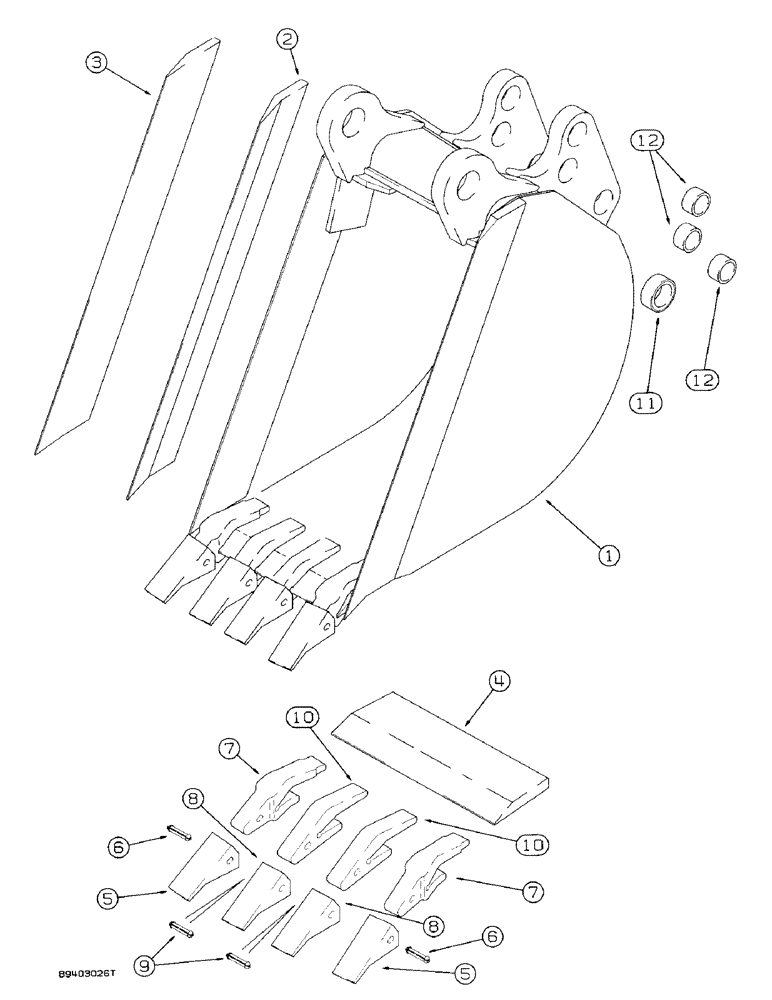

Запчасти Case 580SK (9-058) - UNIVERSAL BACKHOE BUCKETS, 16 INCH, 406 MM, AND 18 INCH, 457MM, WIDE (09) - CHASSIS/ATTACHMENTS

1

D147247

BUCKET

ASSEMBLY, 16 inch, 406 mm, with 3 teeth, not shown, machinery item, order from the Machinery Price List, 16 inch, 406 mm, wide trenching bucket and teeth - heavy duty, Includes: Ref. 2 through 12

1шт.

2

D146421

EDGE, CUTTING

EDGE cutting, bucket, right-hand side, 16 inch, 406 mm, wide trenching bucket and teeth - heavy duty

1шт.

3

D146420

EDGE, CUTTING

EDGE cutting, bucket, left-hand side, 16 inch, 406 mm, wide trenching bucket and teeth - heavy duty

1шт.

4

D147249

EDGE

cutting, center, 6 inch, 406 mm, bucket, 16 inch, 406 mm, wide trenching bucket and teeth - heavy duty

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy, outer corners, 16 inch, 406 mm, wide trenching bucket and teeth - heavy duty, Includes Ref 5, 6 and 7

2шт.

5

D39093

TOOTH

POINT tooth, outer corners, 16 inch, 406 mm, wide trenching bucket and teeth - heavy duty

1шт.

6

D134686

SPLIT PIN/SAFETY PIN

PIN flex, outer point and shank, 16 inch, 406 mm, wide trenching bucket and teeth - heavy duty

1шт.

7

D138157

SHANK

tooth, outer corners, 16 inch, 406 mm, wide trenching bucket and teeth - heavy duty

1шт.

D139849

BUCKET TOOTH

TOOTH, BUCKET, Assy, Center (order Ref 8-10), 16 inch, 406 mm, wide trenching bucket

1шт.

8

D51750

BUCKET TOOTH POINT

POINT tooth, center, 16 inch, 406 mm, wide trenching bucket and teeth - heavy duty

1шт.

9

D134686

SPLIT PIN/SAFETY PIN

PIN flex, center point and shank, 16 inch, 406 mm, wide trenching bucket and teeth - heavy duty

1шт.

10

D48212

SHANK

tooth, center, 16 inch, 406 mm, wide trenching bucket and teeth - heavy duty

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4 x 2-1/4 x 1-1/4 inch, 16 inch, 406 mm, wide trenching bucket and teeth - heavy duty

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2 x 1-7/8 x 1-1/4 inch, 16 inch, 406 mm, wide trenching bucket and teeth - heavy duty

6шт.

1

D146588

BUCKET

ASSEMBLY, 18 inch, 457 mm, with 4 teeth, machinery item, order from the Machinery Price List, 18 inch, 457 mm, wide trenching bucket and teeth - heavy duty, Includes: Ref. 2 through 12

1шт.

2

D146421

EDGE, CUTTING

EDGE cutting, bucket, right-hand side, 18 inch, 457 mm, wide trenching bucket and teeth - heavy duty

1шт.

3

D146420

EDGE, CUTTING

EDGE cutting, bucket, left-hand side, 18 inch, 457 mm, wide trenching bucket and teeth - heavy duty

1шт.

4

D145060

EDGE, CUTTING,444.6mm W x 165.1mm L

EDGE cutting, center, 18 inch, 457 mm, bucket, 18 inch, 457 mm, wide trenching bucket and teeth - heavy duty

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy, outer corners, 18 inch, 457 mm, wide trenching bucket and teeth - heavy duty, Includes Ref 5, 6 and 7

2шт.

5

D39093

TOOTH

POINT tooth, outer corners, 18 inch, 457 mm, wide trenching bucket and teeth - heavy duty

1шт.

6

D134686

SPLIT PIN/SAFETY PIN

PIN flex, outer point and shank, 18 inch, 457 mm, wide trenching bucket and teeth - heavy duty

1шт.

7

D138157

SHANK

tooth, outer corners, 18 inch, 457 mm, wide trenching bucket and teeth - heavy duty

1шт.

D139849

BUCKET TOOTH

TOOTH, BUCKET, Assy, Center (order Ref 8-10), 18 inch, 457 mm, wide trenching bucket

2шт.

8

D51750

BUCKET TOOTH POINT

POINT tooth, center, 18 inch, 457 mm, wide trenching bucket and teeth - heavy duty

1шт.

9

D134686

SPLIT PIN/SAFETY PIN

PIN flex, center point and shank, 18 inch, 457 mm, wide trenching bucket and teeth - heavy duty

1шт.

10

D48212

SHANK

tooth, center, 18 inch, 457 mm, wide trenching bucket and teeth - heavy duty

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4 x 2-1/4 x 1-1/4 inch, 18 inch, 457 mm, wide trenching bucket and teeth - heavy duty

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2 x 1-7/8 x 1-1/4 inch, 18 inch, 457 mm, wide trenching bucket and teeth - heavy duty

6шт.
