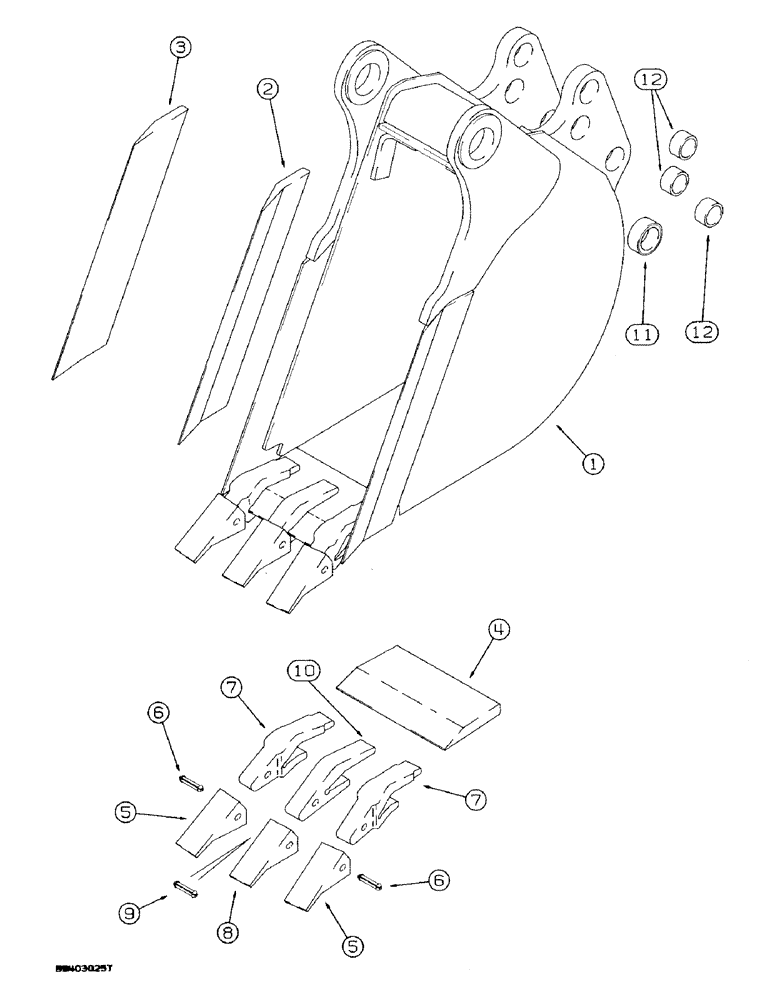

Запчасти Case 580SK (9-056) - UNIVERSAL BACKHOE BUCKET, 12 INCH, 305 MM, WIDE, 12 INCH (09) - CHASSIS/ATTACHMENTS

1

D147418

BUCKET

ASSEMBLY, 12 inch, 305 mm, with 3 teeth, machinery item, order from the Machinery Price List, Includes: Ref. 2 through 12 and P/N D139851

1шт.

See Ref. 39 on Figure 9-046 for pin used on 12 inch Universal bucket.

1шт.

2

D147411

EDGE, CUTTING

EDGE cutting, bucket, right-hand side

1шт.

3

D147410

EDGE

cutting, bucket, left-hand side

1шт.

4

D147409

EDGE, CUTTING

EDGE cutting, center, 12 inch, 305 mm, bucket

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy, outer corners, Includes Ref 5, 6 and 7

2шт.

5

D39093

TOOTH

POINT tooth, outer corners

1шт.

6

D134686

SPLIT PIN/SAFETY PIN

PIN flex, outer point and shank

1шт.

7

D138157

SHANK

tooth, outer corners

1шт.

D139849

BUCKET TOOTH

TOOTH, BUCKET, Assy, Center, order Ref 8, 9 and 10

1шт.

8

D51750

BUCKET TOOTH POINT

POINT tooth, center

1шт.

9

D134686

SPLIT PIN/SAFETY PIN

PIN flex, center point and shank

1шт.

10

D48212

SHANK

tooth, center

1шт.

11

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

1-3/4 ID x 2.250 OD x 3/4 inch long

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2 ID x 1-7/8 OD x 1-1/4 inch long

6шт.
