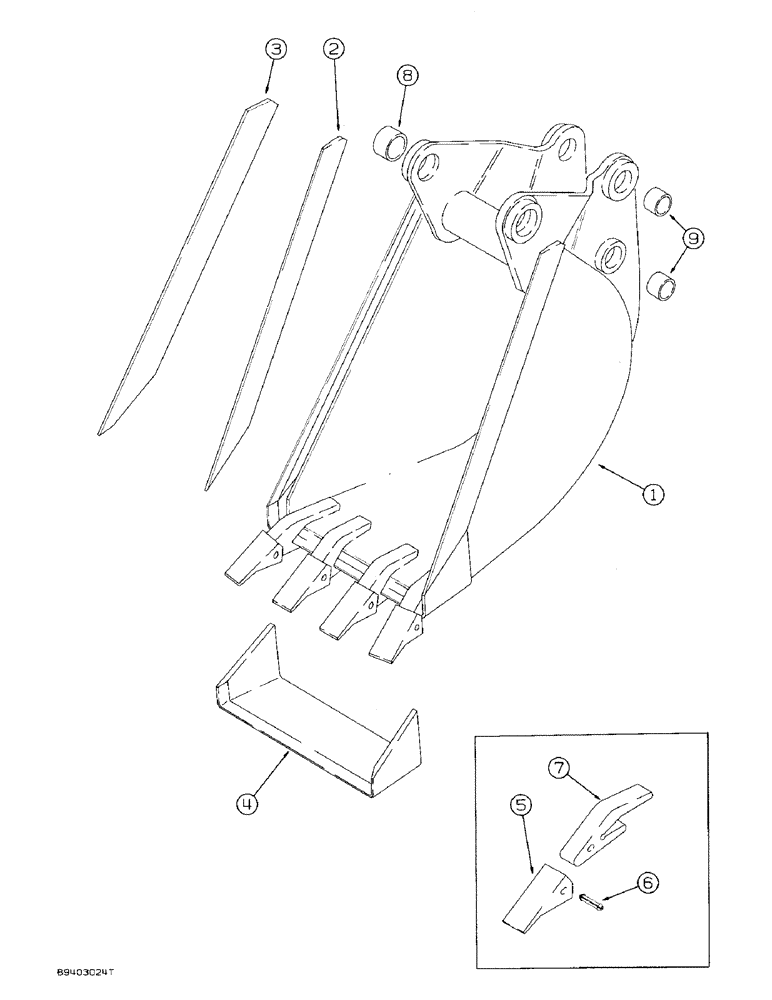

Запчасти Case 580SK (9-054) - BACKHOE BUCKETS, 18 INCH, 457 MM, AND 24 INCH, 610 MM, WIDE (09) - CHASSIS/ATTACHMENTS

1

D139795

BUCKET

ASSEMBLY, 18 inch, 457 mm, with 4 teeth, machinery item, order from the Machinery Price List, 18 inch, 457 mm, wide treching buckets and teeth, Includes: Ref. 2 through 9

1шт.

2

D21606

EDGE, CUTTING

EDGE cutting, bucket, right-hand side, 18 inch, 457 mm, wide treching buckets and teeth

1шт.

3

D21605

EDGE, CUTTING

EDGE cutting, bucket, left-hand side, 18 inch, 457 mm, wide treching buckets and teeth

1шт.

4

D37642

EDGE, CUTTING

EDGE cutting, center, 18 inch, 457 mm, bucket, 18 inch, 457 mm, wide treching buckets and teeth

1шт.

D41659

TOOTH

ASSEMBLY trenching bucket, 18 inch, 457 mm, wide treching buckets and teeth, Includes: Ref. 5, 6 and 7

4шт.

5

D39093

TOOTH

POINT tooth, 18 inch, 457 mm, wide treching buckets and teeth

1шт.

6

D39094

BUCKET TOOTH KEY

PIN flex, point, 18 inch, 457 mm, wide treching buckets and teeth

1шт.

7

NSS

NOT SOLD SEPARAT

SHANK tooth, 18 inch, 457 mm, wide treching buckets and teeth

1шт.

8

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4 x 2-1/4 x 1-1/4 inch, 18 inch, 457 mm, wide treching buckets and teeth

2шт.

9

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2 x 1-7/8 x 1-1/4 inch, 18 inch, 457 mm, wide treching buckets and teeth

4шт.

1

D139796

BUCKET

ASSEMBLY, 24 inch, 610 mm, with 5 teeth, not shown, machinery item, order from the Machinery Price List, 24 inch, 640 mm, wide trenching buckets and teeth, Includes: Ref. 2 through 9

1шт.

2

D21606

EDGE, CUTTING

EDGE cutting, bucket, right-hand side, 24 inch, 640 mm, wide trenching buckets and teeth

1шт.

3

D21605

EDGE, CUTTING

EDGE cutting, bucket, left-hand side, 24 inch, 640 mm, wide trenching buckets and teeth

1шт.

4

D37507

EDGE

cutting, center, 24 inch, 610 mm, bucket, 24 inch, 640 mm, wide trenching buckets and teeth

1шт.

D41659

TOOTH

ASSEMBLY trenching bucket, 24 inch, 640 mm, wide trenching buckets and teeth, Includes: Ref. 5, 6 and 7

5шт.

5

D39093

TOOTH

POINT tooth, 24 inch, 640 mm, wide trenching buckets and teeth

1шт.

6

D39094

BUCKET TOOTH KEY

PIN flex, point, 24 inch, 640 mm, wide trenching buckets and teeth

1шт.

7

NSS

NOT SOLD SEPARAT

SHANK tooth, 24 inch, 640 mm, wide trenching buckets and teeth

1шт.

8

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1-3/4 x 2-1/4 x 1-1/4 inch, 24 inch, 640 mm, wide trenching buckets and teeth

2шт.

9

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1-1/2 x 1-7/8 x 1-1/4 inch, 24 inch, 640 mm, wide trenching buckets and teeth

4шт.
